Moons' M2DV-1D82D User Manual

M Series AC Servo
User Manual
129
Rev. 1.0
7/31/2019
400-820-9661
The secondary speed for FC and FD moves.
NOTE: if you need to view or set this value on drive’s control panel P-28 (VC), please refer to
following calculation:
LED display value =
x 240
Where =
is target velocity setting, Unit is rps (rev/sec) .

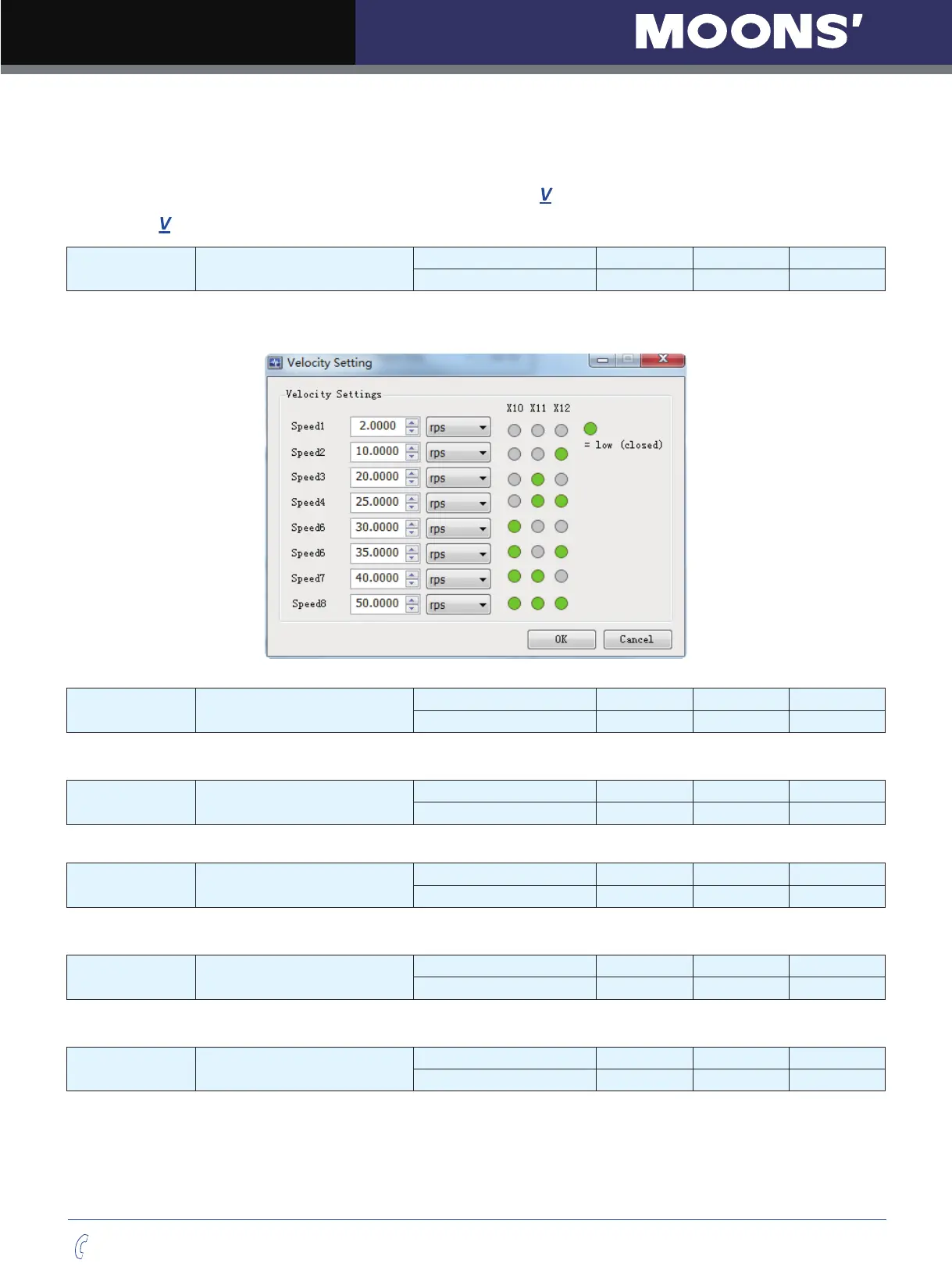

P-29 (JC) Jog mode speed 1
Data Range Default Unit Data type
0.025~100 2 rps DEC
The first speed used in velocity mode. This only applies to control modes 15, 16, 17, and 18.
P-30 (JC) Jog mode speed 2
Data Range Default Unit Data type
0.025~100 10 rps DEC
The second speed used in velocity mode. This only applies to control modes 13, 14, 17, and 18.
P-31 (JC) Jog mode speed 3
Data Range Default Unit Data type
0.025~100 20 rps DEC
The third speed used in velocity mode. This only applies to control modes 13, 14, 17, and 18.
P-32 (JC) Jog mode speed 4
Data Range Default Unit Data type
0.025~100 25 rps DEC
The fourth speed used in velocity mode. This only applies to control modes 13, 14, 17, and 18.
P-33 (JC) Jog mode speed 5
Data Range Default Unit Data type
0.025~100 30 rps DEC
The fifth speed used in velocity mode. This only applies to control modes 13, 14, 17, and 18.
P-34 (JC) Jog mode speed 6
Data Range Default Unit Data type
0.025~100 35 rps DEC
The sixth speed used in velocity mode. This only applies to control modes 13, 14, 17, and 18.
