15 | P a g e
3.1.6 Electrical Connection:
• The 15amp dedicated circuit electrical system should then be tested per local codes or guidelines at this
time and before the unit is plugged in supplying power.
o The workstation receives powered by a rear mounted IEC 15amp three prong connector. These plugs
are recognized globally and make it simple to use in the global marketplace by simply changing the
power supply cord.
▪ 115VAC/1ph/60hz on a dedicated 15amp circuit for Domestic units
• Full Load FLA= 7.2A Nominal= 3.2A
▪ 220VAC/1ph/60hz on a dedicated 10amp circuit for Export units
3.1.7 Plumbing Connection
Do not use a powered screw gun to remove or install the screws. A screw gun can damage the PEM
nut in the sheet metal.
• Plumbing connections are to be made by a licensed professional plumber.

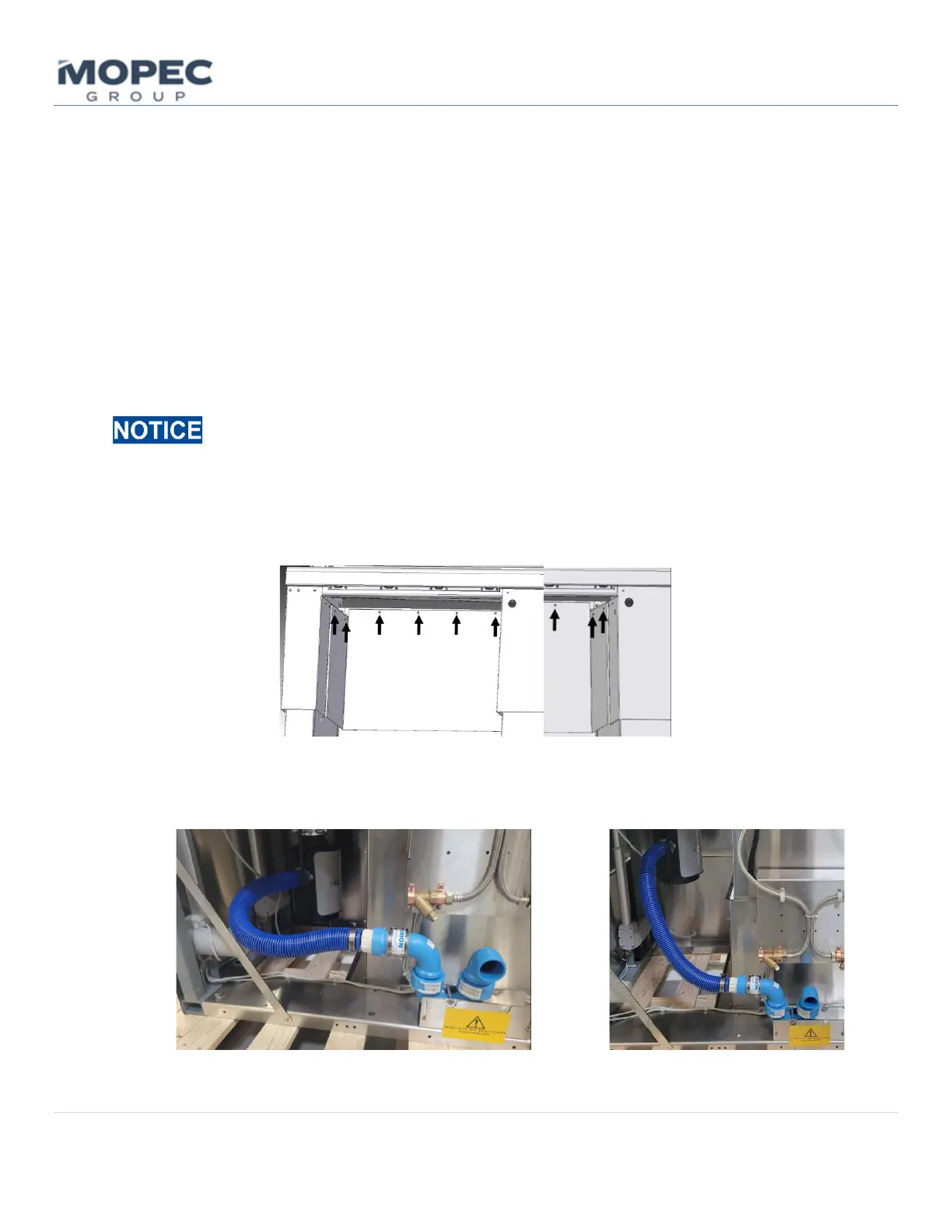

• The inner knee space skirting will have to be removed to access the connections for electrical and plumbing.
Unless otherwise accessible from the end or the back of the unit.
• Check that the internal flexible drain line is present and still connected to the P-Trap assembly free from any
obstruction. The unit is shipped fully lowered in elevation so the flex line will appear flattened out.
Lowered Raised
