67 | P a g e

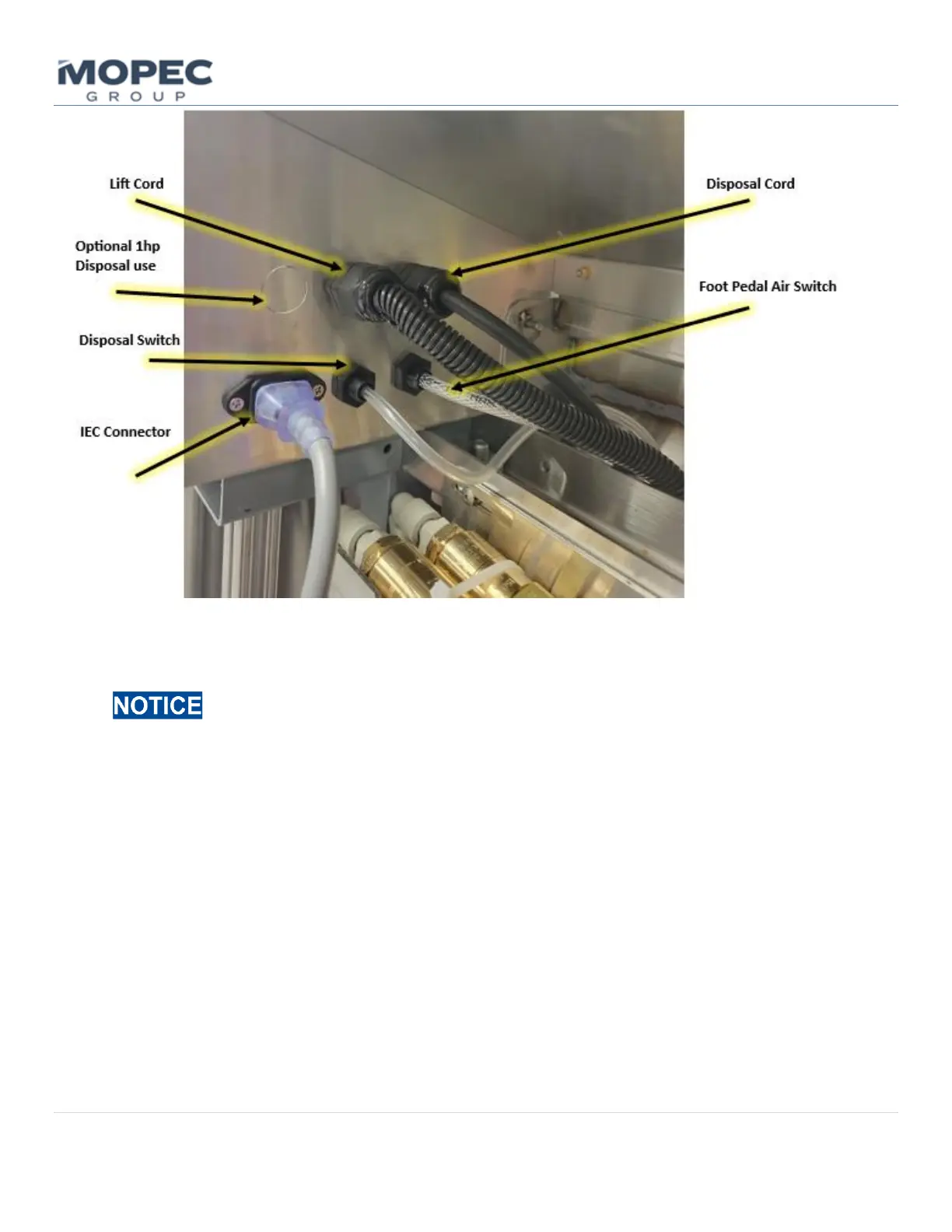

• Check the airline connection to the switch has not become dislodged or completely disconnected due to
shipping and handling or service in the area. The airline is located on the back of the unit behind the sink.
The foot pedal is also operated via an airline take note of which one you are inspecting.
8.2.5 Faucet, Hand Spray & End Rinse Service panel
The water fixtures can be serviced on the Maestro by removing the small rectangular service panel on each side cap of
the work surface. Use a Phillips screwdriver to remove all (5) screws. You now will have access to remove the fixtures
and disconnect the quick connect PEX water lines that run through the frame to the upper/lower skirting.
