45 | P a g e
Foot Pedal Hot/Cold Mixing Valve
• The foot pedal is mounted to a floor plate that can be positioned within reach by the user.
• A single tap of the pedal turns the hot/cold mixed water on.
• Tap the pedal a second time to turn it off.
• Reference section 6.1.5 to adjust the water timer valve interval.
The foot pedal controls a solenoid valve that is between the Mixing Valve and the Faucet, if the mixing
valve lever is NOT lifted into an open position water will NOT flow when you tap the foot pedal.

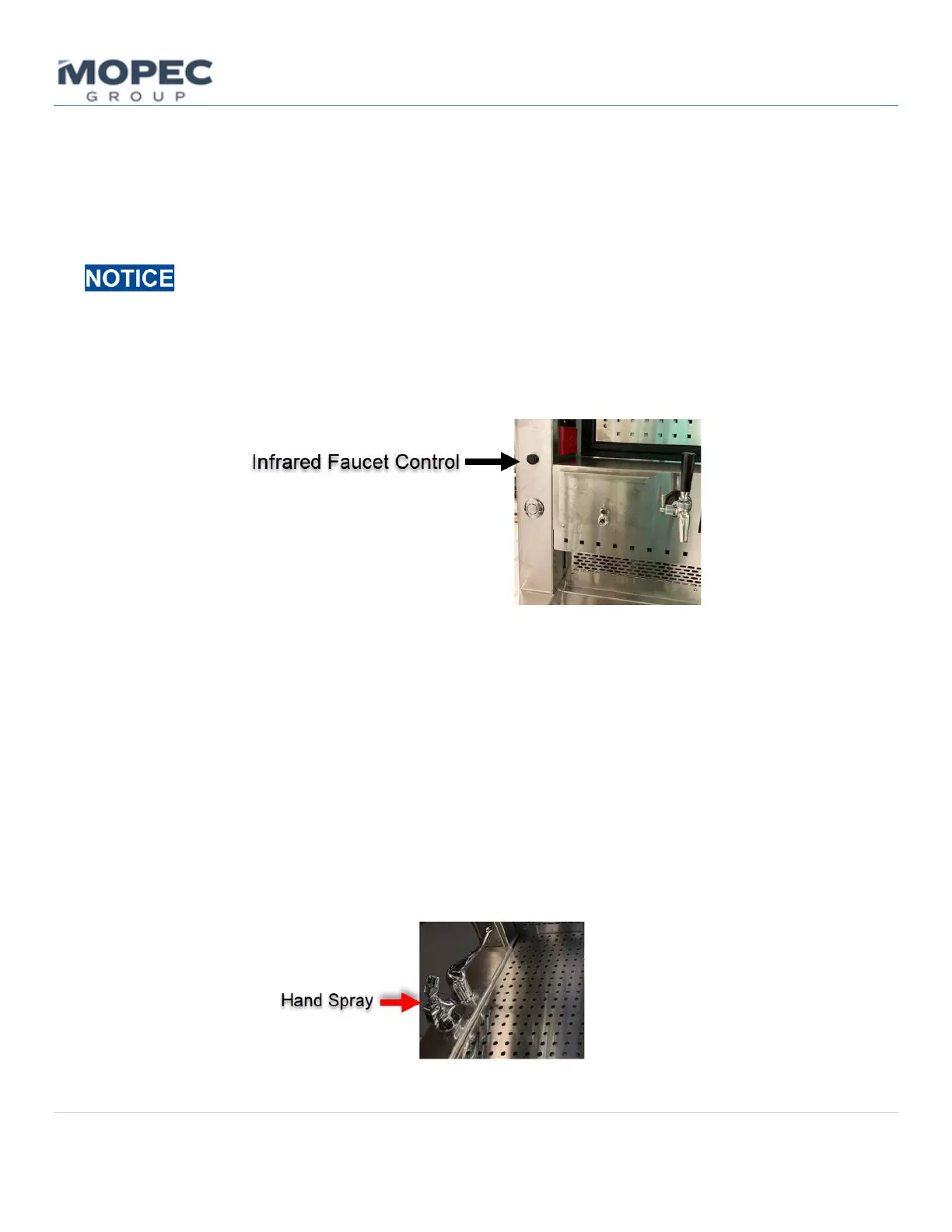

6.2.5 Infrared Faucet control “Hands-Free” Option
The hands-free faucet is controlled by an infrared switch located on the hood column near the disposal switch.
• If you wave your hand near the IR sensor, the system will turn on the water solenoid to the faucet.
• Mixed water is still controlled by the hot/cold mixing lever, and it must be rotated up and on for water to flow.
• The water will flow for the time set on the Water Shutoff Timer function mentioned in section 6.1.5.
6.2.6 Hand Spray Option
The hand spray option is installed opposite the sink and is intended to spray down the grid plate and cutting board
surfaces.
• The hand spray option comes with a hot/cold mixing valve that must be rotated up and on for it to work.
• Simply squeeze the hand spray trigger to spray mixed water. The flow rate can be adjusted by both the trigger
and the mixing valve.
