• With the plumbing bracket mounted to the factory location on the frame (as shown in the image above) the
facility drain line can be connected either via a flexible line with hose clamps or hard plumbed per your local
codes and regulations. The unit is designed to drain properly in this configuration if roughed in per the
drawing.
NOTE: The P-Trap bracket is designed to be adjustable up and down with the slotted design of the
bracket. Completely removing the bracket from the base will break the seal of the yellow sticker and void
the unit’s warranty. These grossing stations are designed to elevate and have a designed length of hose to
ensure proper drainage and function while in service.
CAUTION Elevating units must retain the factory flexible line connection from the disposal to the P-Trap.
A hard connection will cause damage to the unit or the facility’s plumbing or both.

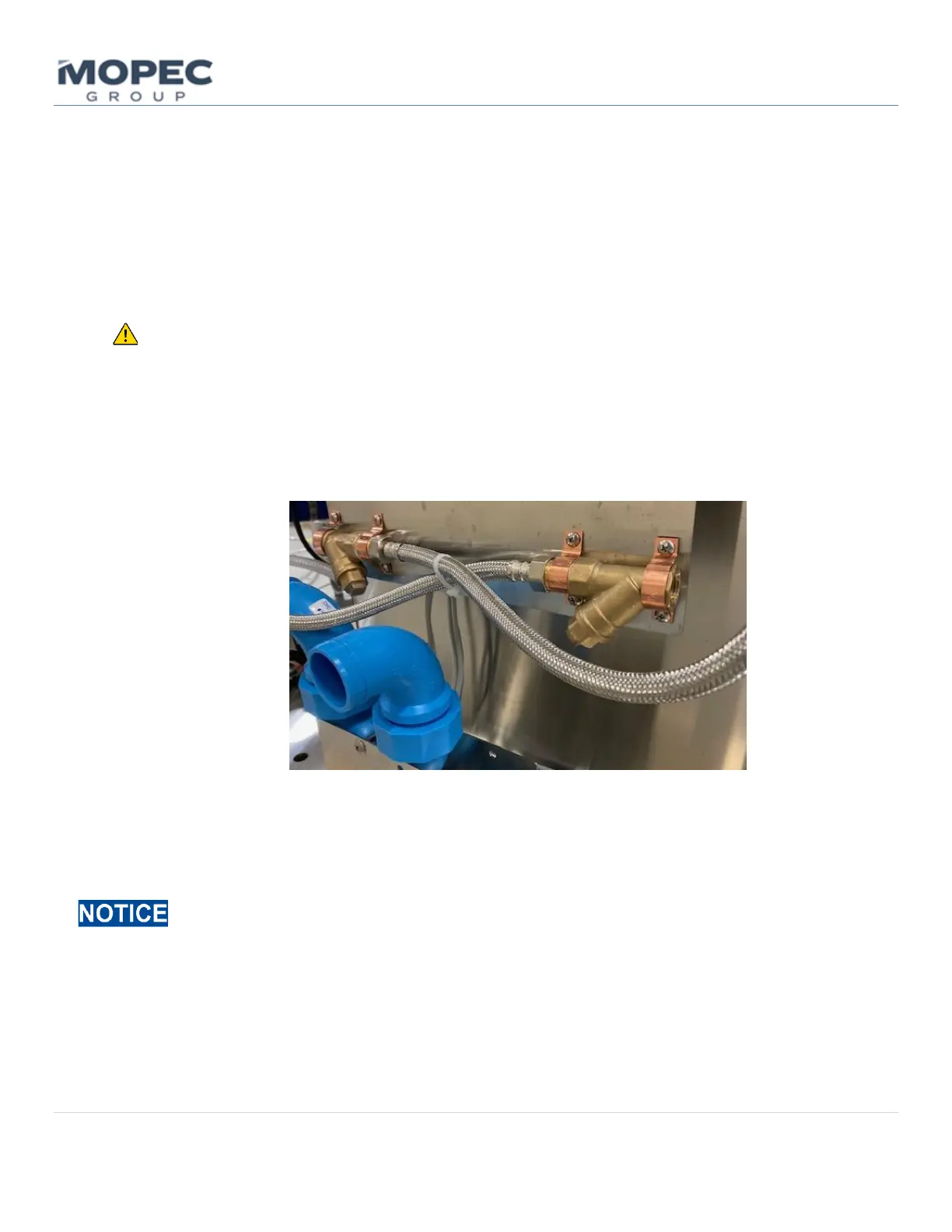

• HOT and COLD water lines should be connected directly to the factory-supplied water strainers. Especially
in new construction, these strainers are your only protection from site debris damaging seals and valves in
your new workstation.
• Water strainers supplied have a ½” NPT female thread. Plan final connections to HOT and COLD water lines
accordingly. Be sure to use a backup wrench on the strainer when tightening the connections.
3.1.8 Ventilation connection (in-house ventilation)
A standard unit is supplied with (2) 8” (20.32cm) diameter vent duct connections – see your
approval drawing and rough-in drawing for more information.
