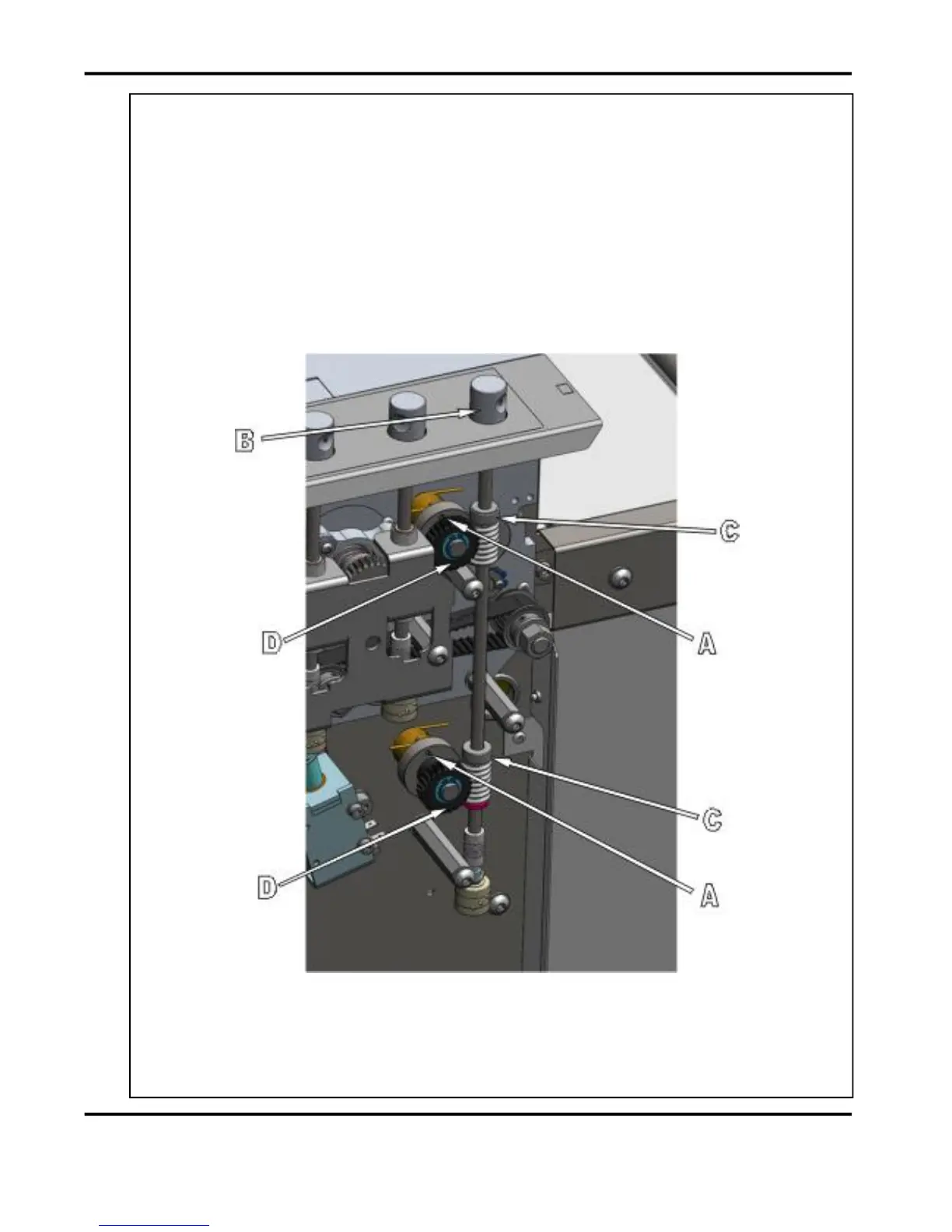

10.Whenre-assemblingtheTiltControlMechanism,itisimportanttomakesurethat
whenyoure-engagetheupperandlowerworms(C),thepins(A)ontheupperand
lowerwormwheelassemblies(D)areinthesamerelativepositionasshownabove.
Thiswillensurethethrowofeacheccentricisinthesamepositionatthetopandthe
bottom.
(See‘DynacreaseTiltPotentiometer’inthePoweredSetupProcedureonpage61)
