4 - 6 MC31XX Series Mobile Computer User Guide

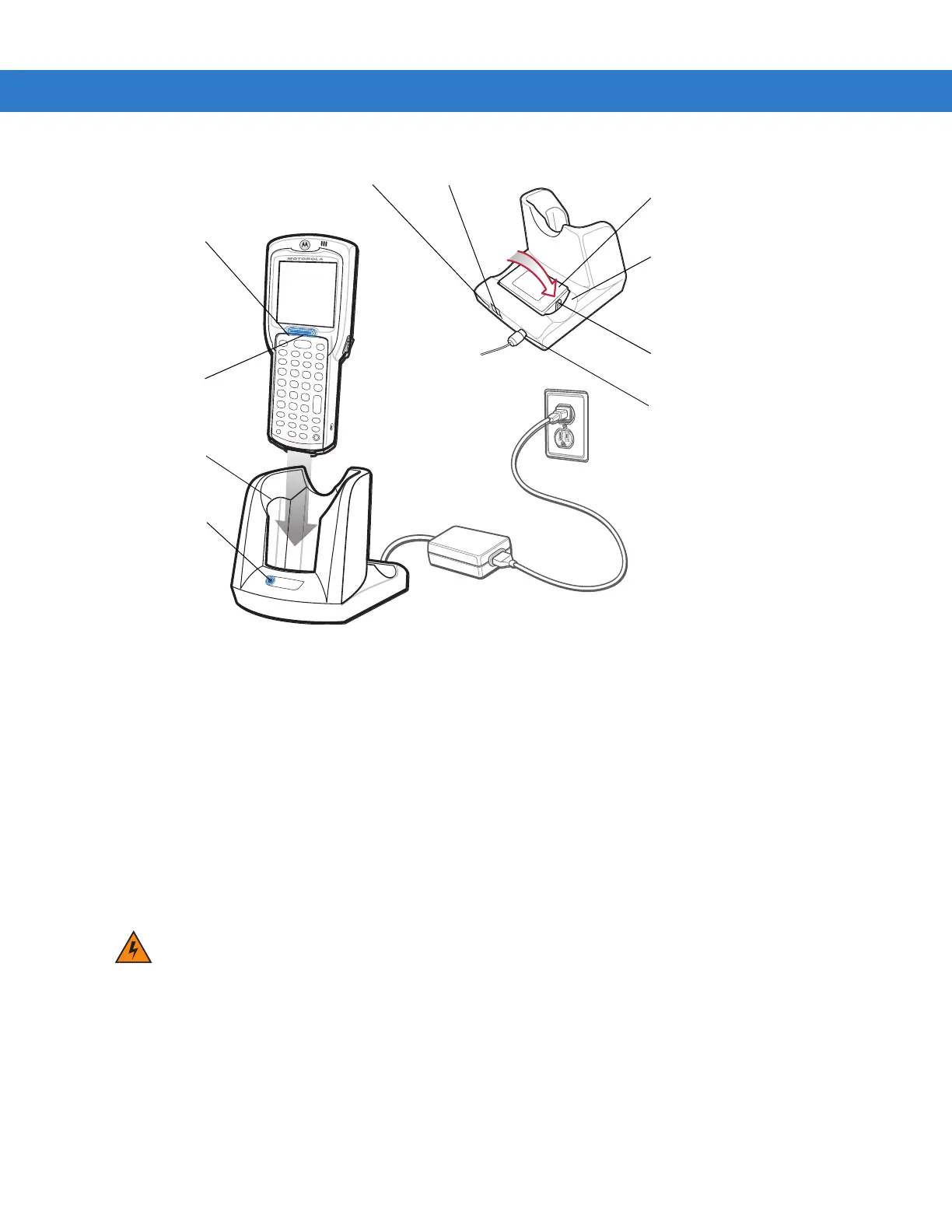

Figure 4-1
Single Slot Serial/USB Cradle
2. When charging is complete, remove the mobile computer from the mobile computer slot.
To charge the spare battery:
1. Insert the spare battery into the spare battery charging slot, bottom first, and pivot the top of the battery down
onto the contact pins.
2. Gently press down on the battery to ensure proper contact.
3. The Spare Battery Charging LED (see Figure 4-1 on page 4-6) indicates the spare battery charging status. The
Standard Battery charges in less than five hours and the Extended Life Battery charges in less than eight
hours. See Table 4-2 for charging status indications.
4. When charging is complete, press the battery clip and lift the battery out of the slot.
LED Charge Indications
The Single Slot Serial/USB cradle uses the mobile computer amber Charge LED Indicator to indicate the battery
charging status and the Spare Battery Charging LED to indicate spare battery charging status. See Table 4-2 for
charging status indications.
Indicator
LED Bar
Mobile
Computer Slot
Spare Battery
Spare Battery
Charging
LED
Power Port
Serial Port
USB Port
Spare Battery
Charging Slot
Battery
Clip
Charge LED
Indicator
(amber)
WARNING! Do not use a tool to remove the battery.
