Figure 1-16
Lift Door

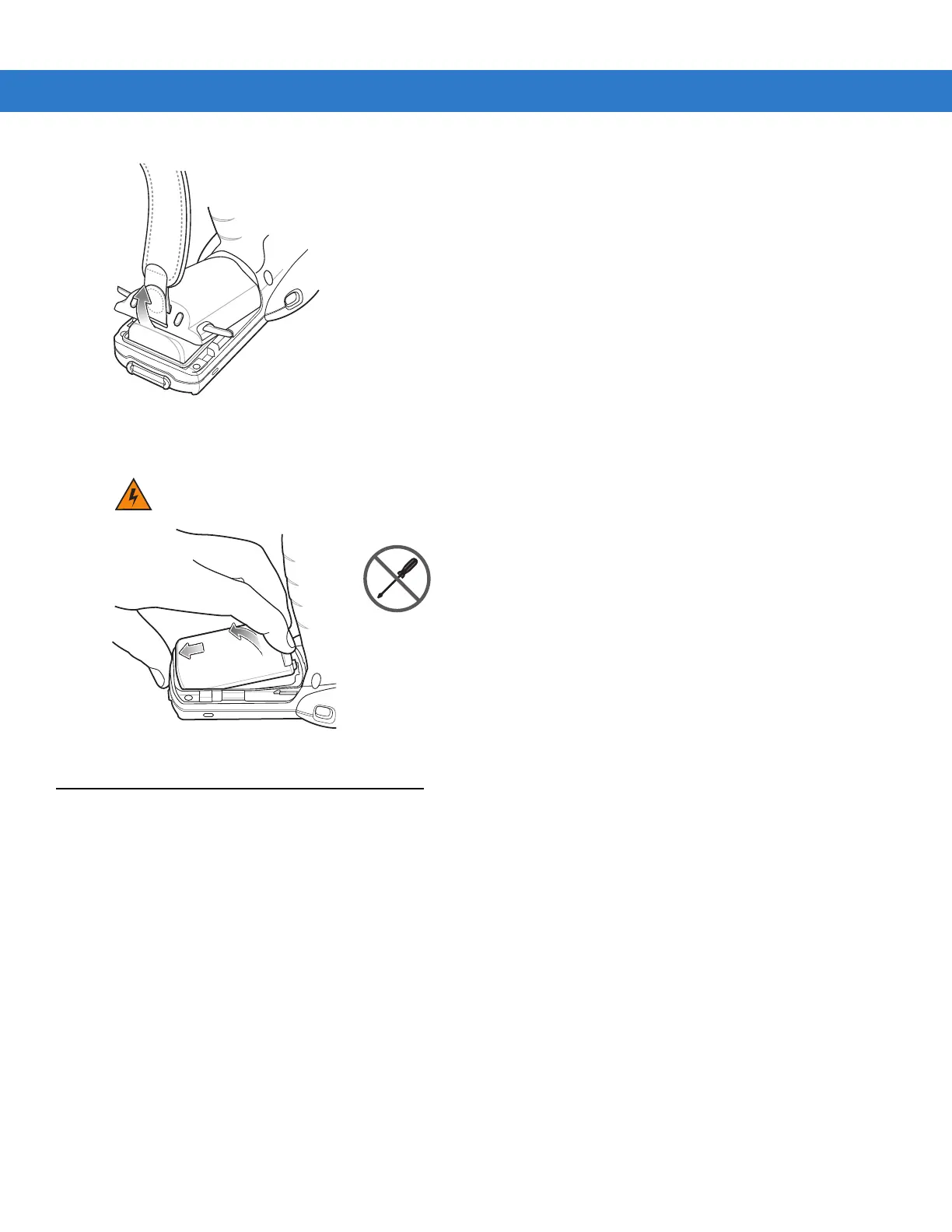

6. With two finger, press the battery toward the bottom of the mobile computer and lift the battery out top first.
Figure 1-17
Press the Battery Toward Bottom of MC3190G
Handstrap Removal and Replacement (MC31XXS/R)
To remove the handstrap:
1. Use a #00 Phillips screwdriver to remove the screws.
2. Lift the mounting clip.
3. Slide the mounting clip out of the strap loop.
4. Open the handstrap flap and pull the handstrap through the battery door mounting slot.
WARNING! Do not use a tool to remove the battery.
