Accessories 4 - 13
Universal Battery Charger (UBC) Adapter
The UBC Adapter can be used with a power supply as a standalone spare battery charger or it can be used with
the four station UBC2000 to simultaneously charge up to four spare batteries. For additional information on the
UBC 2000, refer to the UBC 2000 Quick Reference Guide p/n 70-33188-xx.
Spare Battery Charging
To charge spare batteries:
1. Insert the spare battery into the spare battery charging slot, bottom first.
2. Pivot the top of the battery down onto the contact pins.

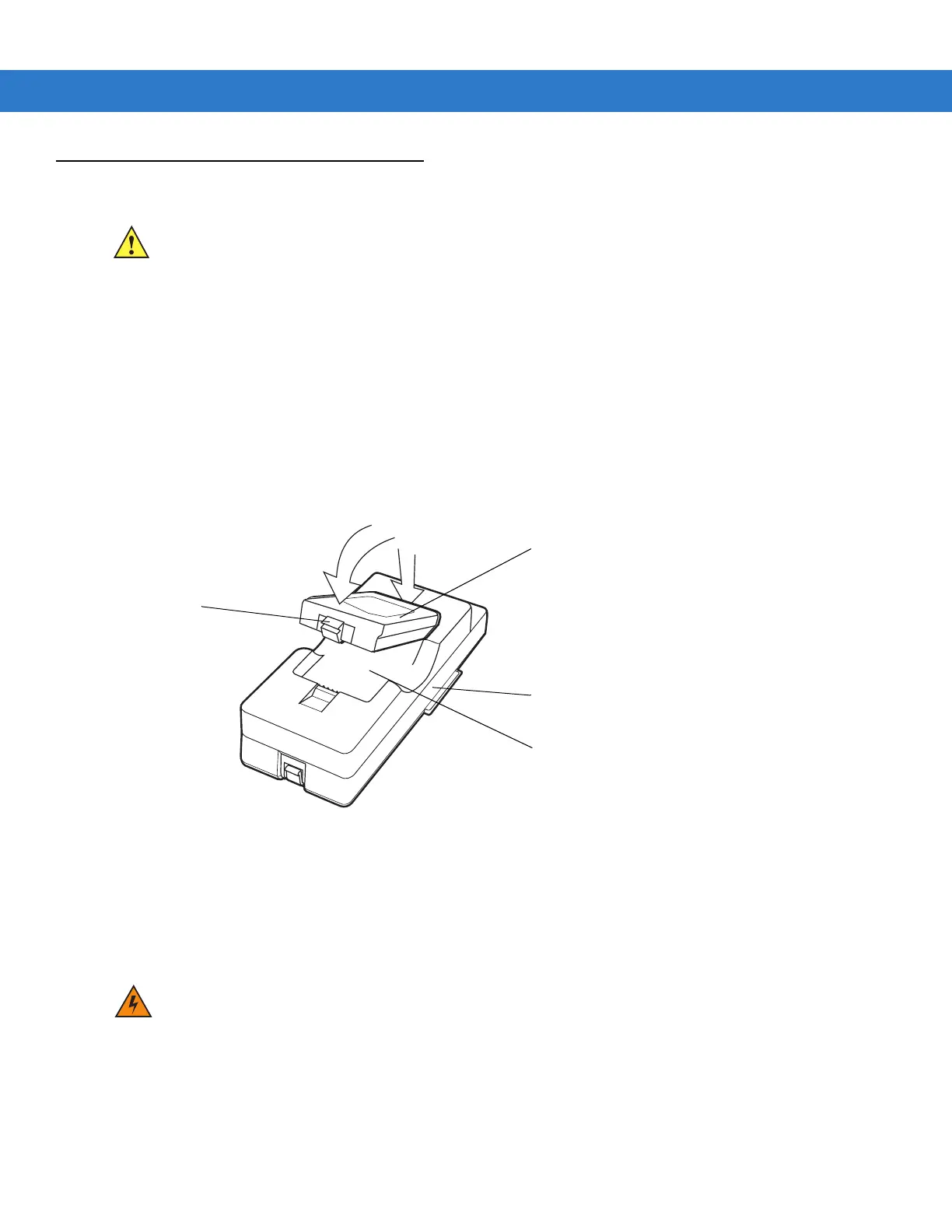

Figure 4-5
UBC Adapter Battery Insertion
3. Gently press down on the battery to ensure proper contact. The Standard Battery usually charges in less than
five hours and the Extended Life Battery usually charges in less than eight hours. See, Table 4-3 on page 4-14
for charging status indications.
4. When charging is complete, press the battery clip and lift the battery out of the slot.
UBC Adapter LED Charge Indications
The UBC Adapter charging LEDs indicate the battery charging status. The Standard Battery usually charges in less
than five hours and the Extended Life Battery usually charges in less than eight hours.
CAUTION Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page 5-2.
UBC Adapter
Battery
Battery Clip
Spare Battery
Charging Slot
2
1
WARNING! Do not use a tool to remove the battery.
