NE-4100 Series User’s Manual Getting Started
3-3

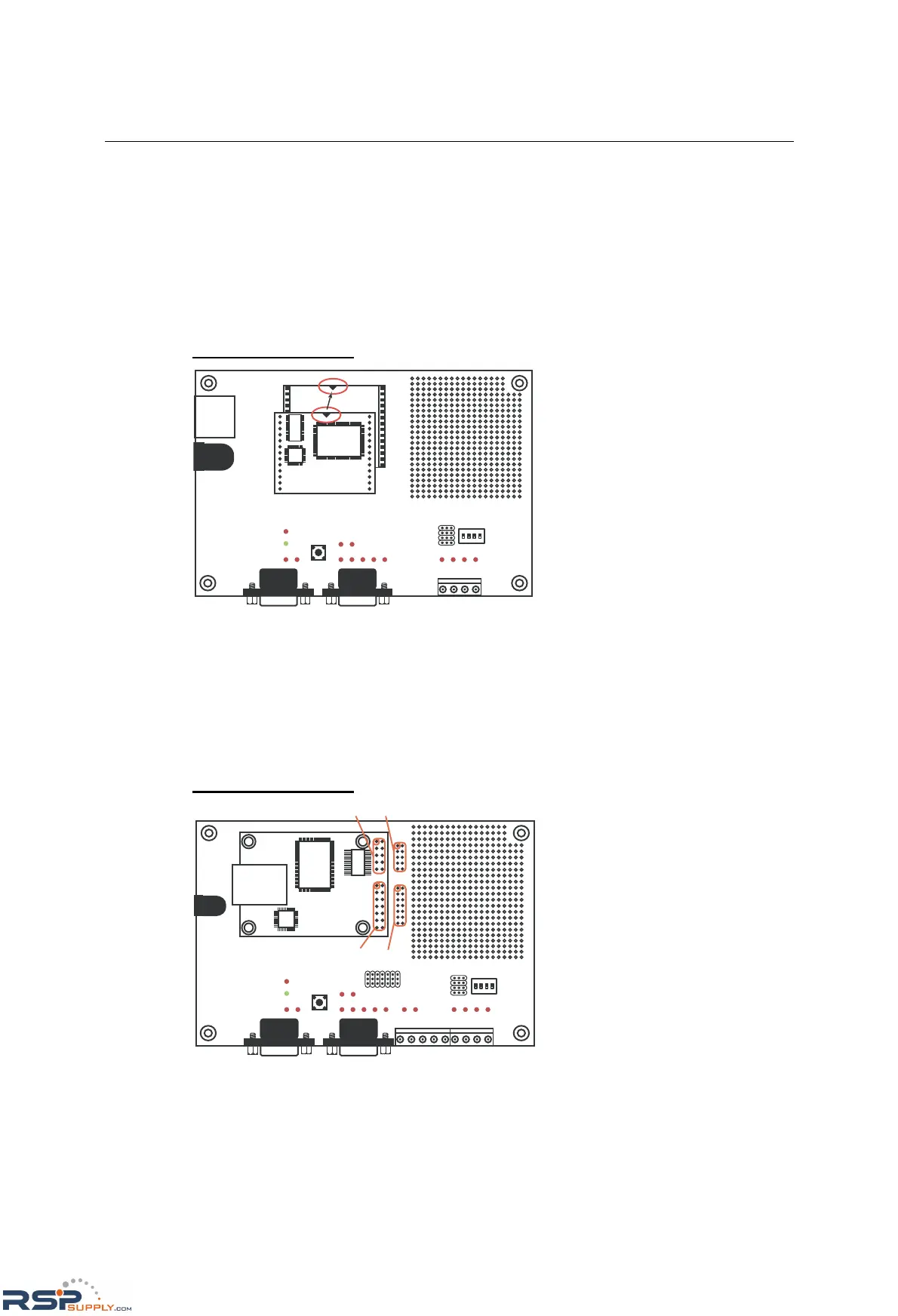

Installing the NE-4100T onto the NE-4100-ST
Before using the NE-4100-ST evaluation board with the module, disconnect the power supply,
network, and serial device. In the center of the evaluation board, there is a square with one white
inverted triangle (shown as black in the figure) on one of its sides, and 2 rows of female sockets on
the other two sides. The NE-4100T module also has a white inverted triangle on one of its sides.
When attaching the module to the evaluation board, make sure these 2 white inverted triangles are
facing the same direction, as shown in the following figure. After the module is installed, connect
the power supply, network, and serial device to the evaluation board.
NE-4100-ST Starter Kit
1234
ON
DIP
NE-4100T Series
Module
Installing the NE-4110S, NE-4110A onto the NE-4110-ST
The NE-4110S and NE -4110A modules are attached to the NE-4110-ST board using mounting
screws that are provided with the board. When attaching the module to the board, make sure that
the module is oriented so that the jumper banks on the module and the board are aligned as shown
below. Use the provided ribbon cables to connect jumper block J1 on the module to J9 on the
board, and jumper block J2 on the module to J10 on the board. When plugging in each ribbon
cable, make sure that the red key wire corresponds with pin 1 on each jumper block.
NE-4110-ST Starter Kit
1234
ON
DIP
910
13 14
12
12
1
2
1
2
9
01
31
41
NE-4110 Series
Module
J2
J10
J1 J9
To Next Page
