NE-4100 Series User’s Manual Web Console Configuration
6-19
Destination IP address 1/2/3/4
Setting Factory Default Necessity
IP address range
E.g., Begin: 192.168.1.1 End:
192.168.1.10
None Required
Local Listen port
Setting Factory Default Necessity
1 to 65535 4001 Required
Use this field to specify the UDP port that the module listens to and that other devices must use to
contact the module. To avoid conflicts with well known UDP ports, the default is set to 4001.

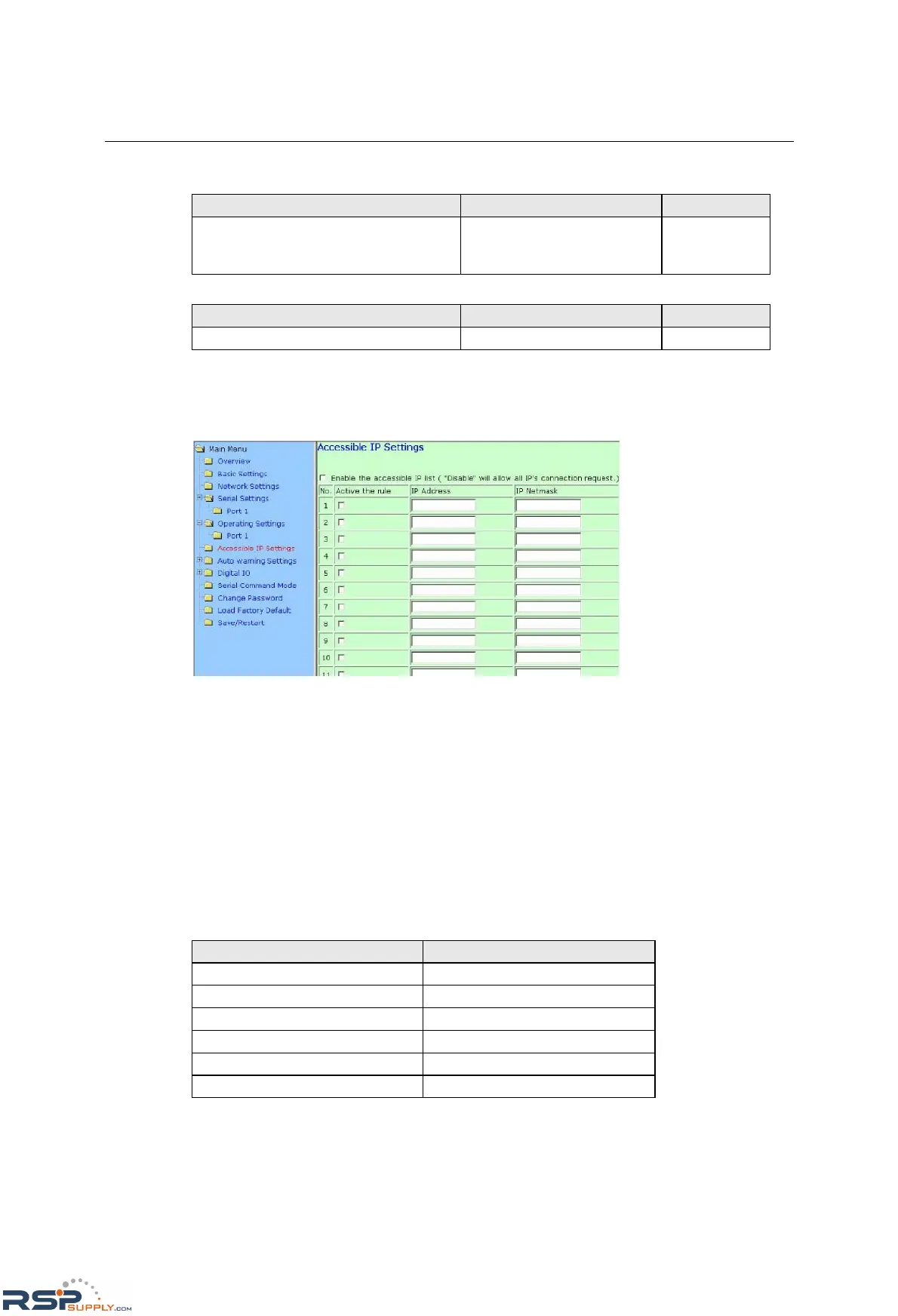

Accessible IP Settings
NOTE: “Serial Command Mode” is supported in firmware version 3.0 and above.
The module uses an IP address based filtering method to control access. Accessible IP Settings
allows you to specify a list of IP addresses or IP address ranges that are authorized to access the
module.
To allow access to a specific IP address
Enter the IP address in the corresponding field; enter 255.255.255.255 for the netmask.
To allow access to hosts on a specific subnet
For both the IP address and netmask, use 0 for the last digit (e.g., 192.168.1.0 and 255.255.255.0).
To allow unrestricted access
Deselect the Enable the accessible IP list option.
Refer to the following table for more configuration examples.
Allowed hosts Entered IP address/Netmask
Any host Disable
192.168.1.120 192.168.1.120 / 255.255.255.255
192.168.1.1 to 192.168.1.254 192.168.1.0 / 255.255.255.0
192.168.0.1 to 192.168.255.254 192.168.0.0 / 255.255.0.0
192.168.1.1 to 192.168.1.126 192.168.1.0 / 255.255.255.128
192.168.1.129 to 192.168.1.254 192.168.1.128 / 255.255.255.128
