NE-4100 Series User’s Manual Network Enabler Administrator
7-6

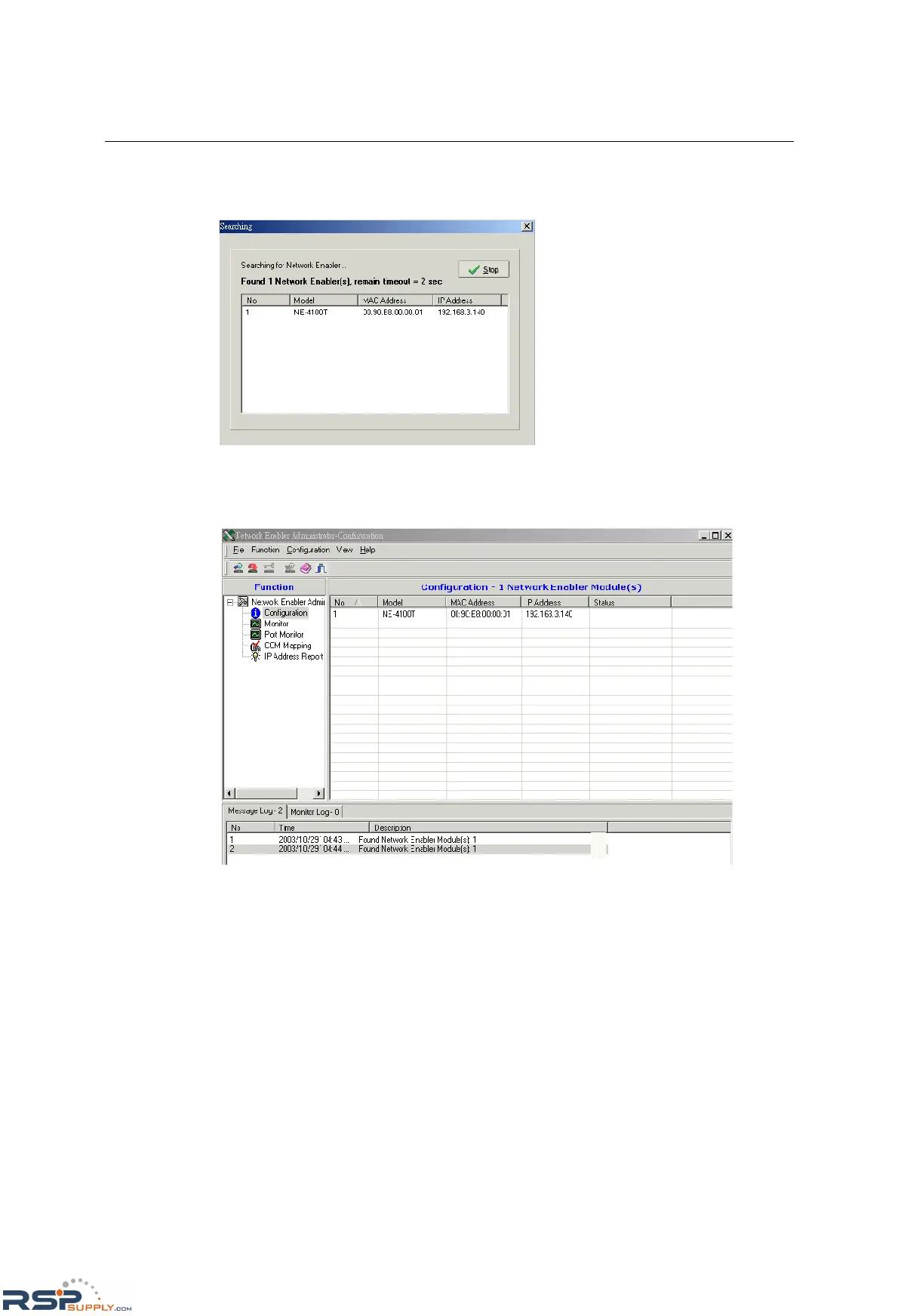

2. A Searching window will open, showing that the program is searching for NE-4100 Series
modules connected to this network. You may click Stop as soon as the desired module is
found.
3. After the search is finished, all modules that were found will be shown in the Configuration
module list. Select the desired module to begin using other functions with it. If you locate
more than one module connected to this network, use the MAC address to determine which
module you wish to configure.
Specify by IP Address
Specify by IP Address is used to search the network for a specific module by its IP address.
When the module is found, it is added to the Configuration module list and may be selected for
use with other functions. If you have trouble detecting the module, please verify your network
settings and connection.
Locate
Locate sends a signal to make the selected module’s “Ready” LED blink, which makes it easier to
locate the module if you are managing multiple modules at the same time. The module does not
have a built-in LED, but the evaluation board maps the signal to its own onboard LED. Please
refer to Pin Assignments in Chapter 2 for information on which pin is associated with the “Ready”
LED. Click Stop to turn off the Locate function.
