Setting Up Custom 5-27
.
Configuring Routers for one Internet Connection and one
Intranet Connection
In complex case that NPort Server connecting to both Internet and Intranet, you
need to add two routes to the server.

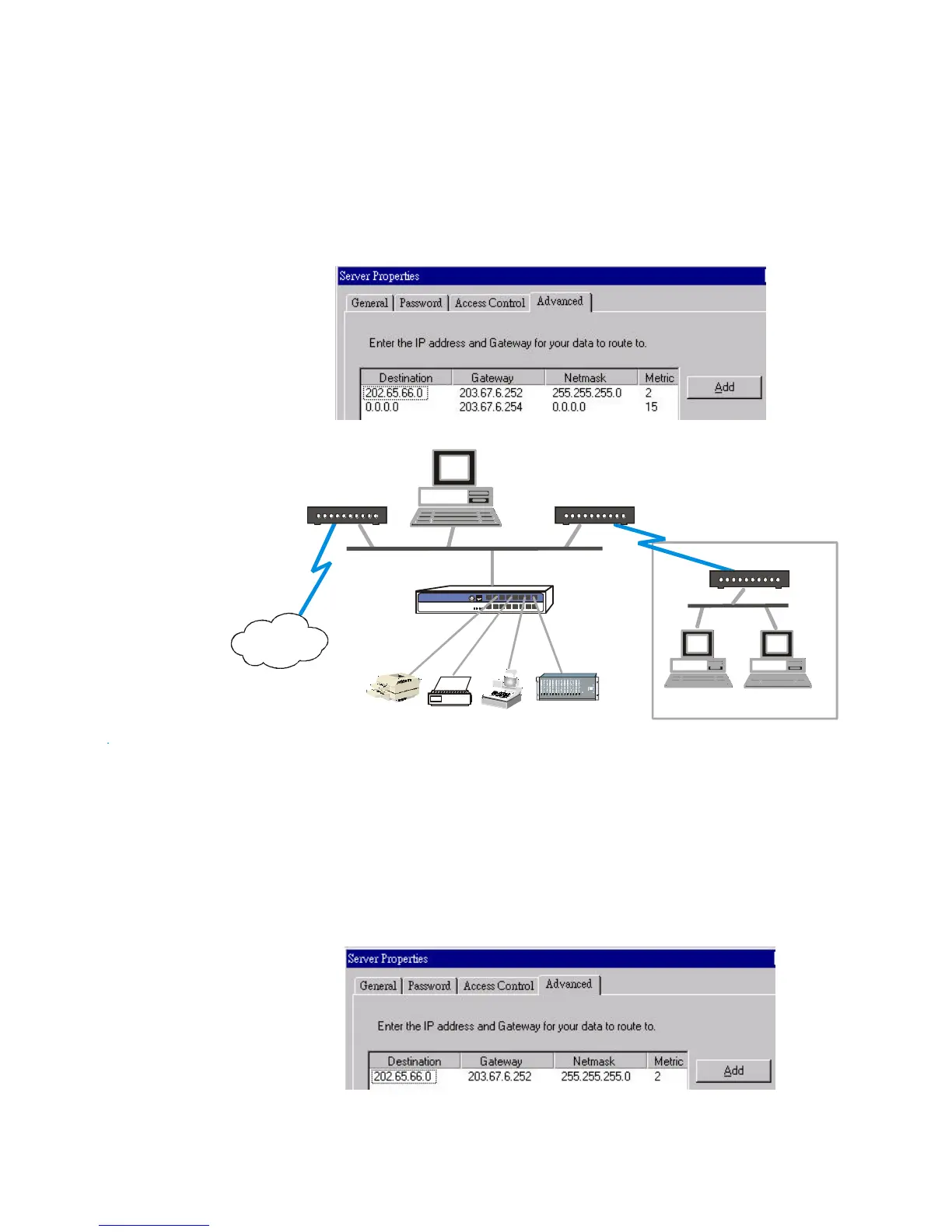

Figure 5-2. Scheme for NPort Server connecting to Intranet as well as
Internet.
If you are under the same environment as above but the NPort Server only need to
be accessed by the private network instead of global Internet, you may just add the
first route to the server.
NT
TCP/IP
203.67.6.10
203.67.6.253Internet
Router
NPort Server
Router203.67.6.252
NT
203.67.6.254
NPortServer
NT
TCP/IP
203.67.6.10
203.67.6.253
Internet
Router
NPort Server
Router
Asynchronous Devices
203.67.6.252
203.67.6.254
202.65.66.4
202.65.66.5
Router
202.65.66.2
