NPort Server User’s Manual
5-28

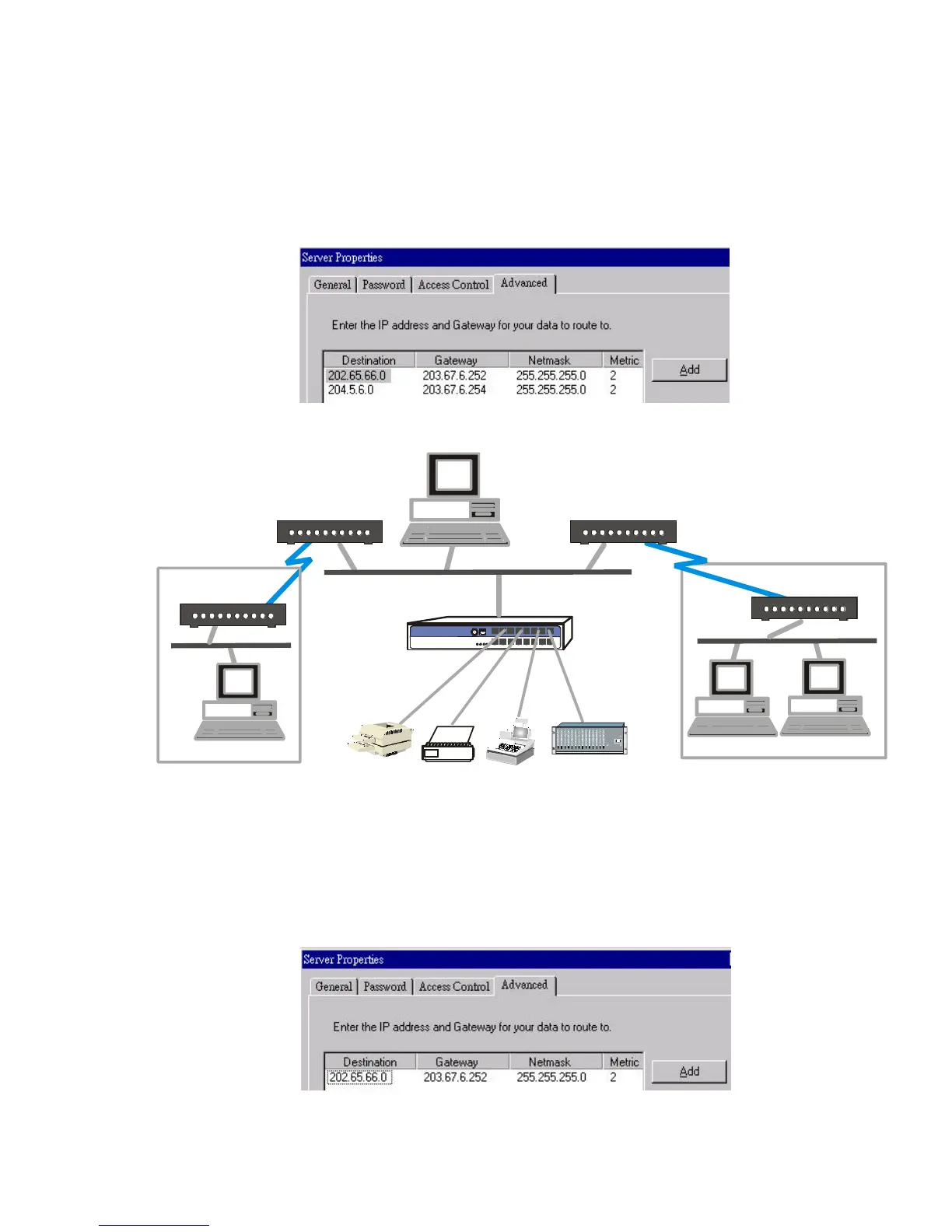

Configuring Routes through Multiple Routers
If there are two subnets to reach through routers, you should configure NPort Server
route as:
Figure 5-3. Scheme for NPort Server connecting to multiple routers.
If only 202.65.66.0 network is needed to provide accessibility, configure your
NPort Server as below.
NPortServer
NT
TCP/IP
203.67.6.10
203.67.6.253
Router
NPort Server
Router
Asynchronous Devices
203.67.6.252
203.67.6.254
202.65.66.4
Router
202.65.66.2
204.5.6.2
Router
204.5.6.254
202.65.66.5
