TN-5516/5518 User’s Manual Featured Functions
3-34
Coupling Control Port
Setting Description Factory Default
Coupling Control Port
This specifies which port on the TN-5500
will be used as the coupling control port.
None

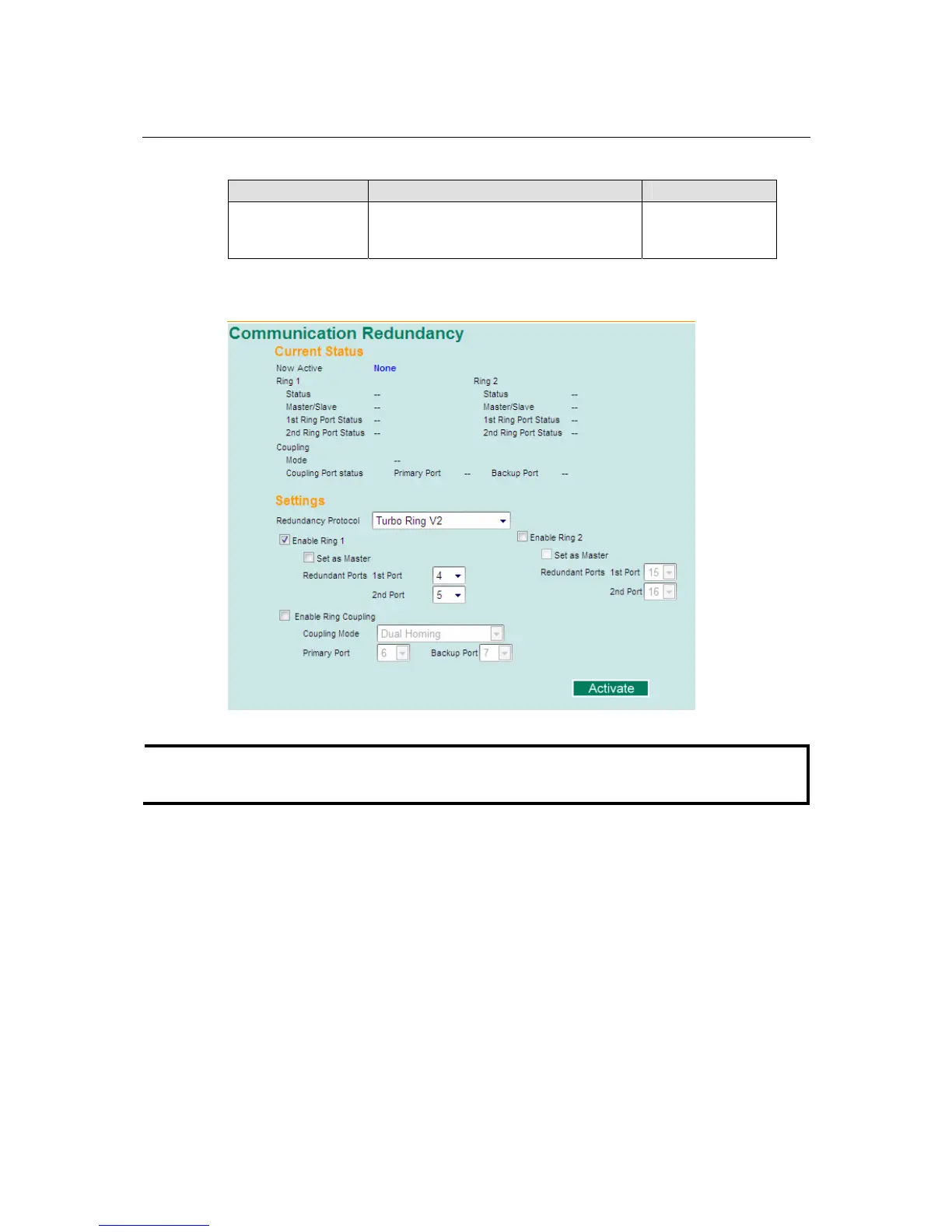

Configuring Turbo Ring V2
NOTE
When using a dual-ring architecture, users must complete configuration for both Ring 1 and Ring
2. The status of both rings will appear under Current Status.
"Current Status" Items
Now Active
This shows which communication protocol is in use: Turbo Ring, Turbo Ring V2, RSTP, Turbo
Chain, or none.
Ring 1/2—Status
This shows Healthy if the ring is operating normally, and shows Break if the ring’s backup link is
active.
Ring 1/2—Master/Slave
This indicates whether or not the TN-5500 is the master of the Turbo Ring. This field appears only
when selected to operate in Turbo Ring or Turbo Ring V2 mode.
