TN-5516/5518 User’s Manual EDS Configurator GUI
4-5
Upgrade Firmware
Keep your TN-5500 up to date with the latest firmware from Moxa. Perform the following steps to
upgrade the firmware:
1. Download the updated firmware (*.rom) file from the Moxa website (www.moxa.com).
2. Click the switch (from the Moxa EDS Configurator window) whose firmware you wish to
upgrade to highlight it.
3. Click the Upgrade Firmware toolbar icon
, or select Upgrade under the Firmware menu.
If the switch is Locked, you will be prompted to input the switch’s User Name and Password.

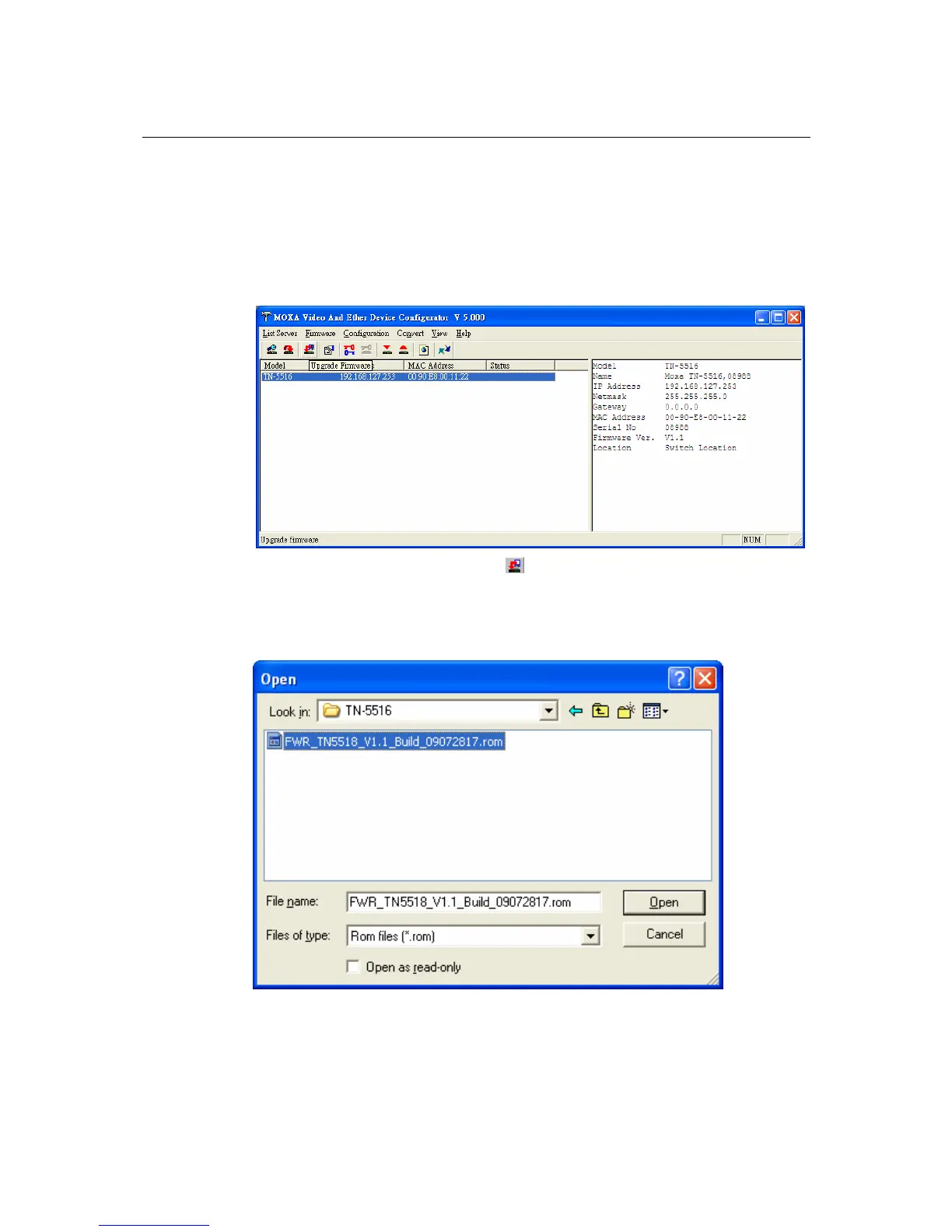

4. Use the Open window to navigate to the folder that contains the firmware upgrade file, and
then click the correct “*.rom” file (eds.rom in the example shown below) to select the file.
Click Open to activate the upgrade process.
