6 Mounting
Maschinenfabrik Reinhausen GmbH 2018 455252433/02 EN ECOTAP
®
VPD
®
CONTROL PRO

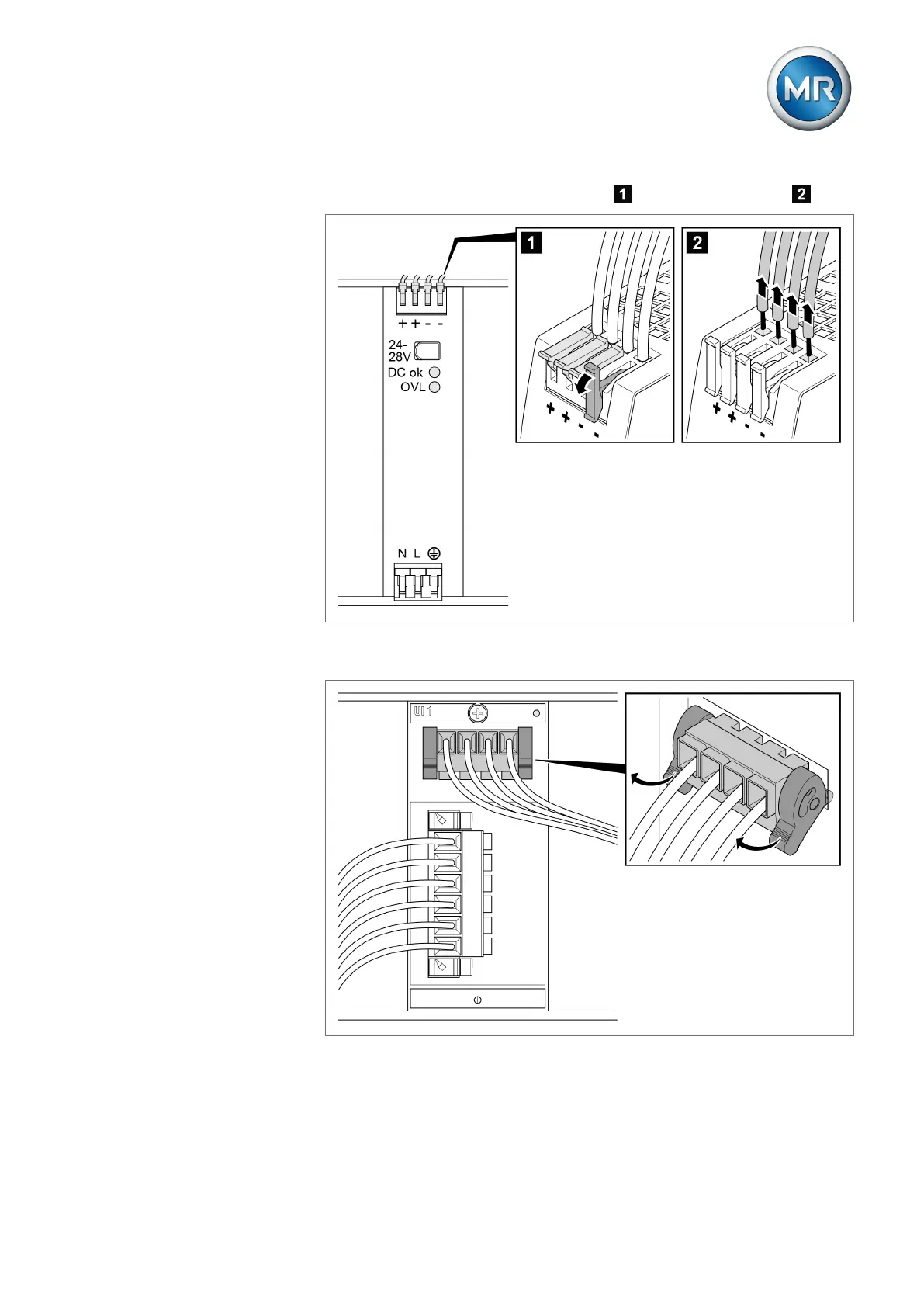

2. G1 QS3.241 assembly: Open the lever and remove the wiring .
Figure28: Removing the wiring
3. UI assembly: Remove the plug for voltage measurement.
Figure29: Voltage measurement
