6 Mounting
Maschinenfabrik Reinhausen GmbH 201846 5252433/02 ENECOTAP
®
VPD
®
CONTROL PRO
4. CPU assembly: Remove the "24V DC" plug.

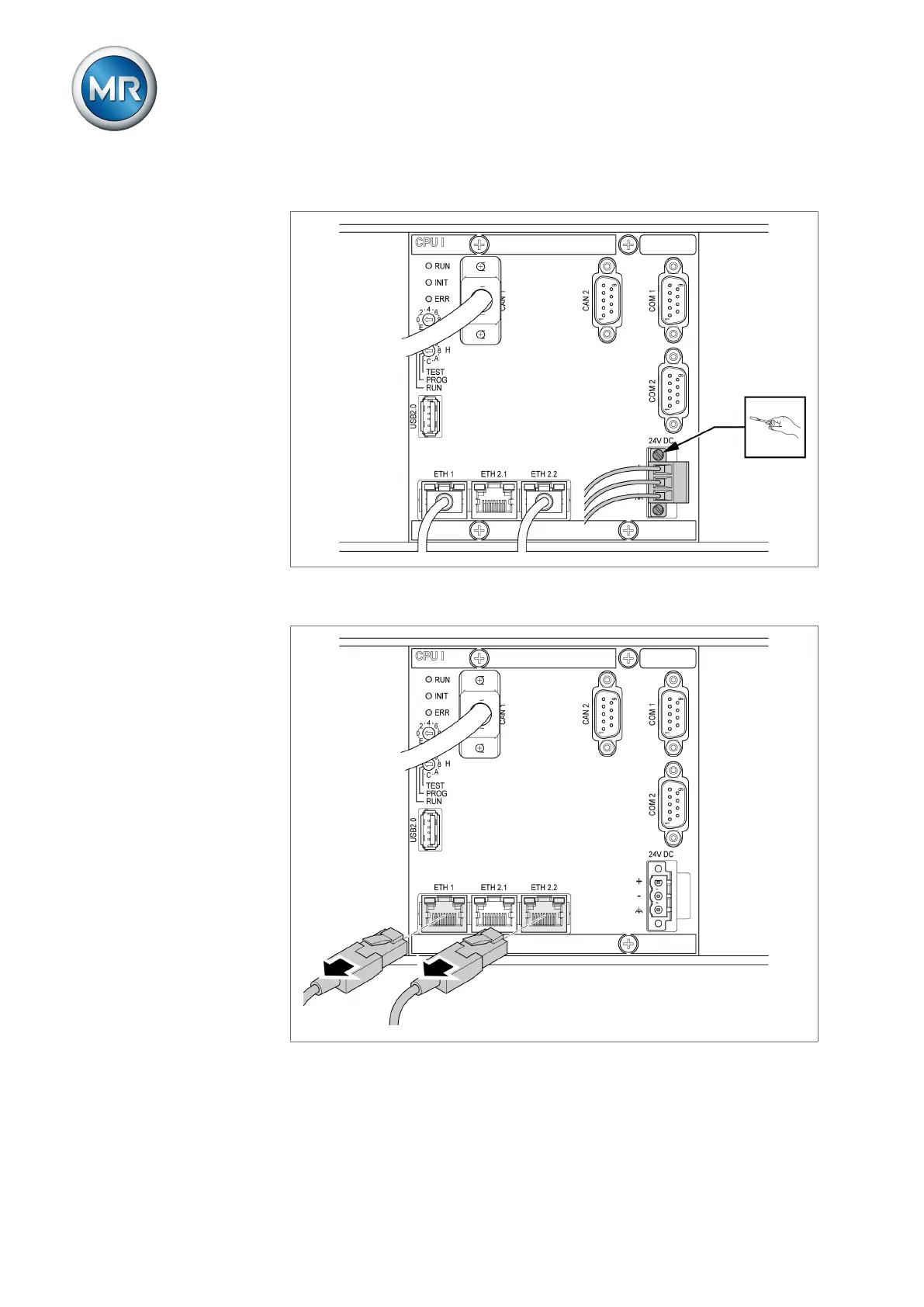

Figure30: Removing the plug (voltage supply)
5. CPU assembly: Remove the Ethernet cable.
Figure31: Removing the Ethernet cable
