SUPREMATouch
158
Installation
MSA
US

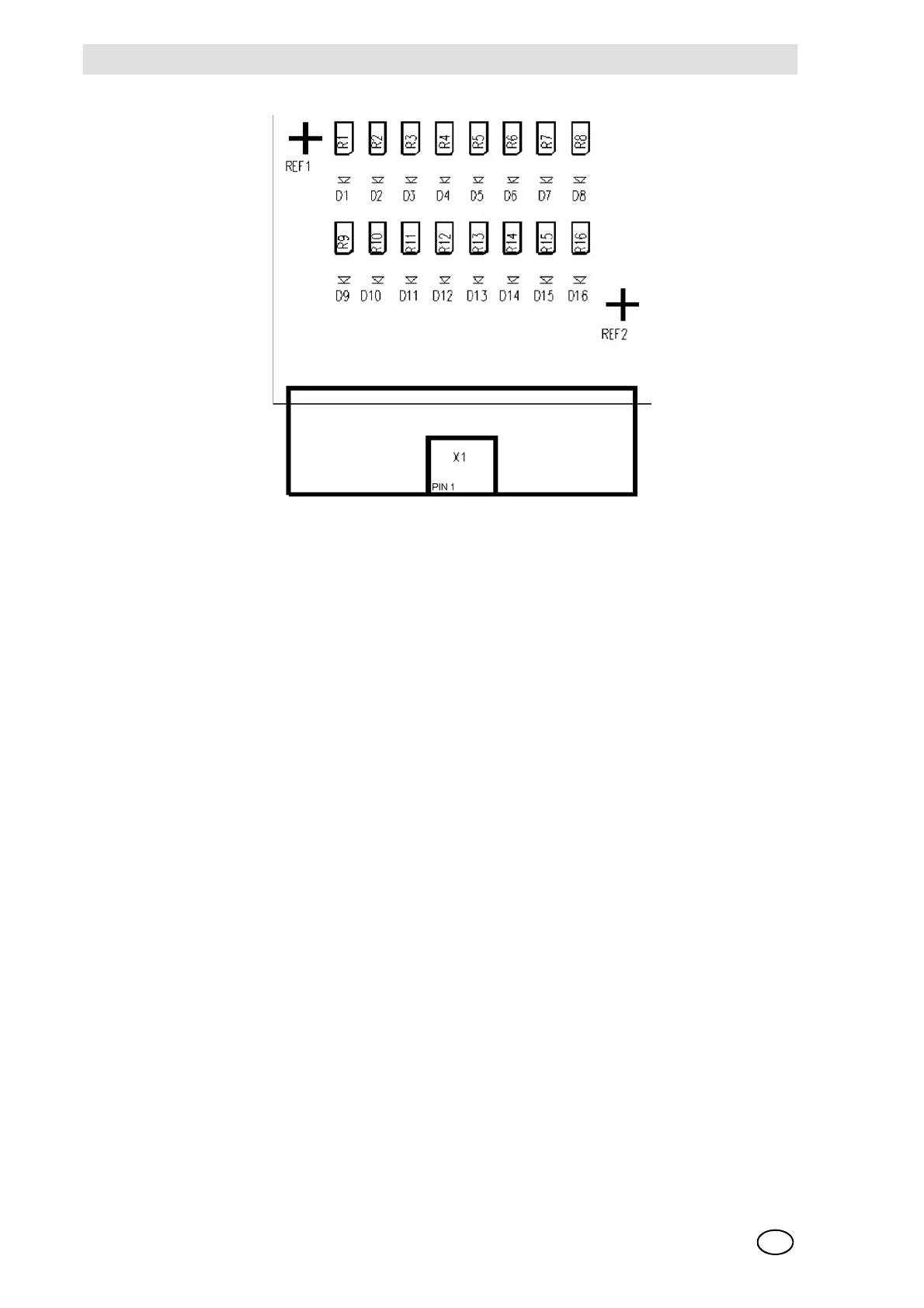

Fig. 86 View of MRD Module
NOTE: Note the correct polarity of the modules, see illustration 85.
LED 1 - 8 = Driver outputs channel A
LED 9 - 16 = Driver outputs channel B
