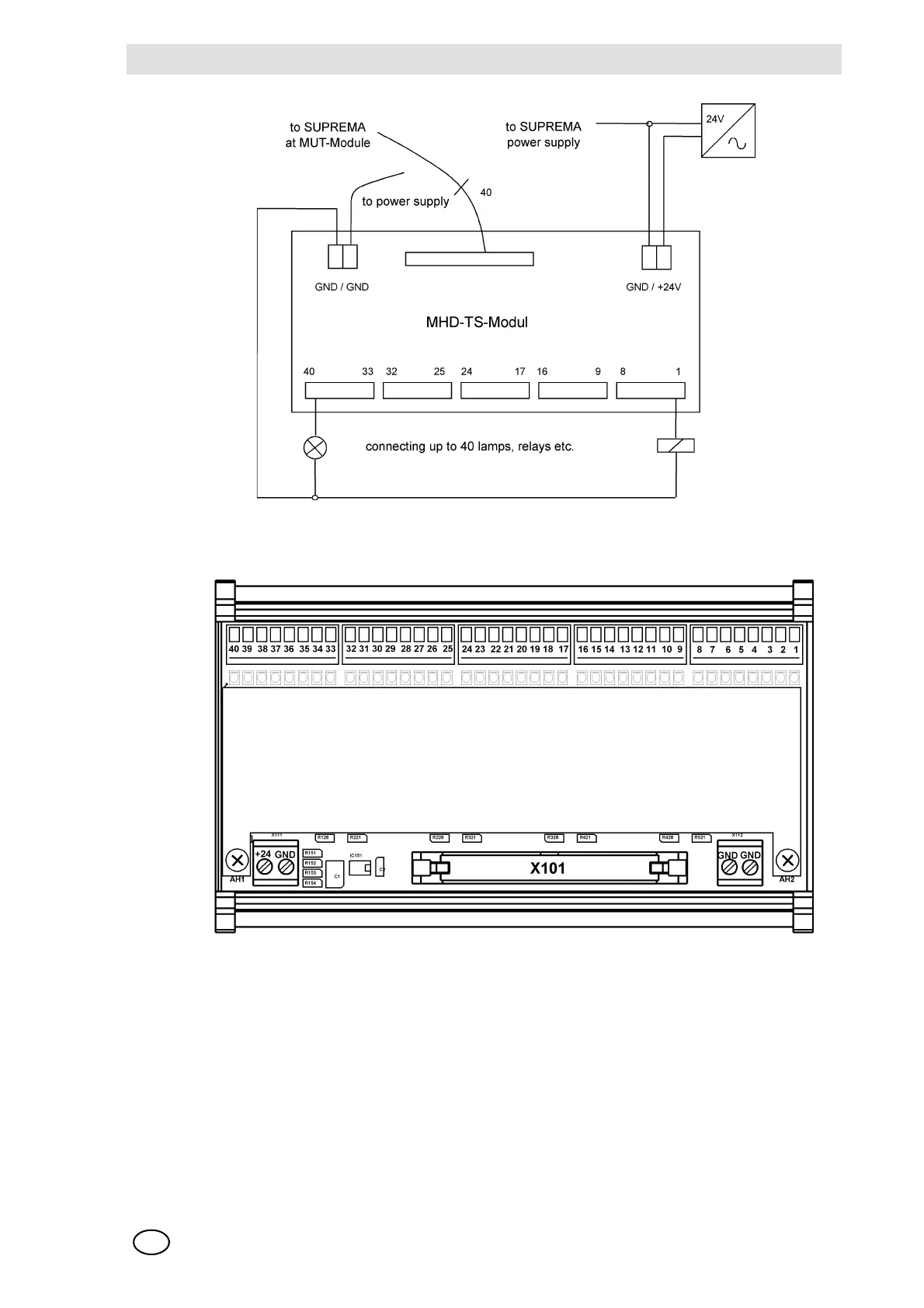

Fig. 136 MHD TS Module Connection (Switching outputs inverted)
Fig. 137 MHD TS Module
10.9 Connection of the Analog Outputs
Analog outputs can be used to generate external records of the sensor signals using the
MAO module that supplies an electrically isolated 0 ... 20 mA output current. Each MAO module
offers 8 analog outputs that follow the level of the sensor signal. The assignment between signal
inputs and analog outputs is freely configurable. The system automatically assigns measurement
channel nos. 1–8 and the associated measurement values to the first plugged-in MAO module
(measurement channel nos. 9–16 being assigned to the second MAO module etc.).
