6.6 Plug-In Modules– Status LED
In the case of the modules designed as plug-in modules, status LEDs are located in the upper left
corner. The position and function of these LEDs are described in the following.
MCP, MDC, MBC, MDA, MGO, MAO Modules

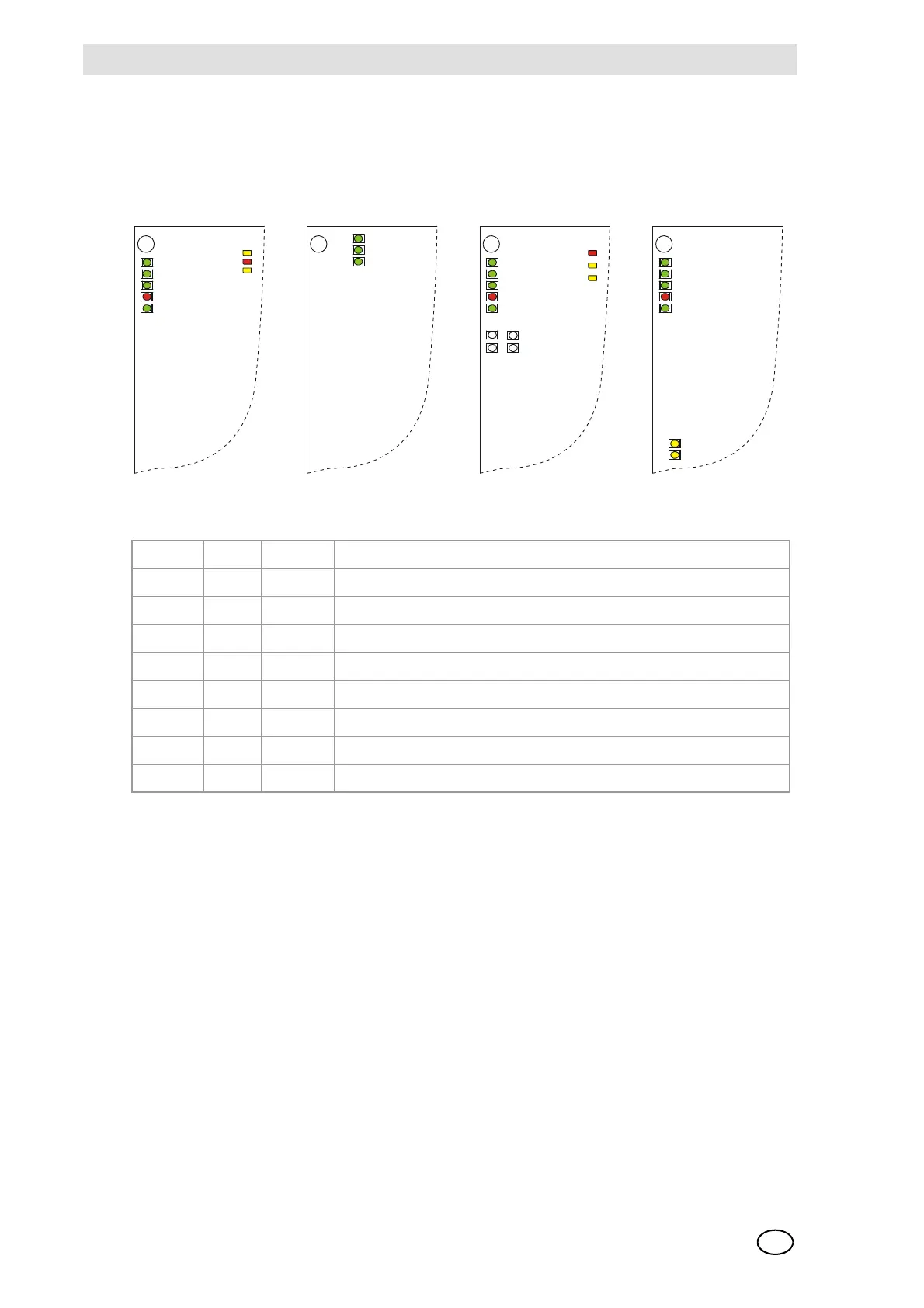

Fig. 50 MCP, MDC, MBC, MDA, MGO, MAO Modules, Status LEDs
Fig. 51 MCP, MDC, MBC, MDA, MGO, MAO Modules, Function Status LEDs
In the normal case, only one of the first three LEDs is on. If no LED is on, there is a problem with
the voltage supply to the module.
If the failure LED [LED No. 4] is on, you should contact an MSA service technician. If this cannot
be done right away, the module can be replaced if a spare unit is available [→ Installation and
Start-Up Guide]. The failure which occurred is stored in the SUPREMATouch logbook and can be
found in the “Diagnosis/Logbook/System events” menu.
MCP20 MDA20/MGO20/MAO10
1
2
3
4
5
MBC20
1
2
3
4
5
1
2
3
4
5
6
7
8
6
7
6
8
7
1
2
3
MDC20
LED-No. Colour Function
1 green ON: The external voltage supply is selected by the module.
2 green ON: The internal voltage supply is selected by the module.
3 green ON: The battery voltage supply is selected by the module.
4 red ON: A failure has occured in the module.
5 green ON: The module’s CAN bus communications are proceeding correctly.
6 yellow ON: System failure
7 yellow ON: Voltage failure
8 red ON: Module is in reset state
