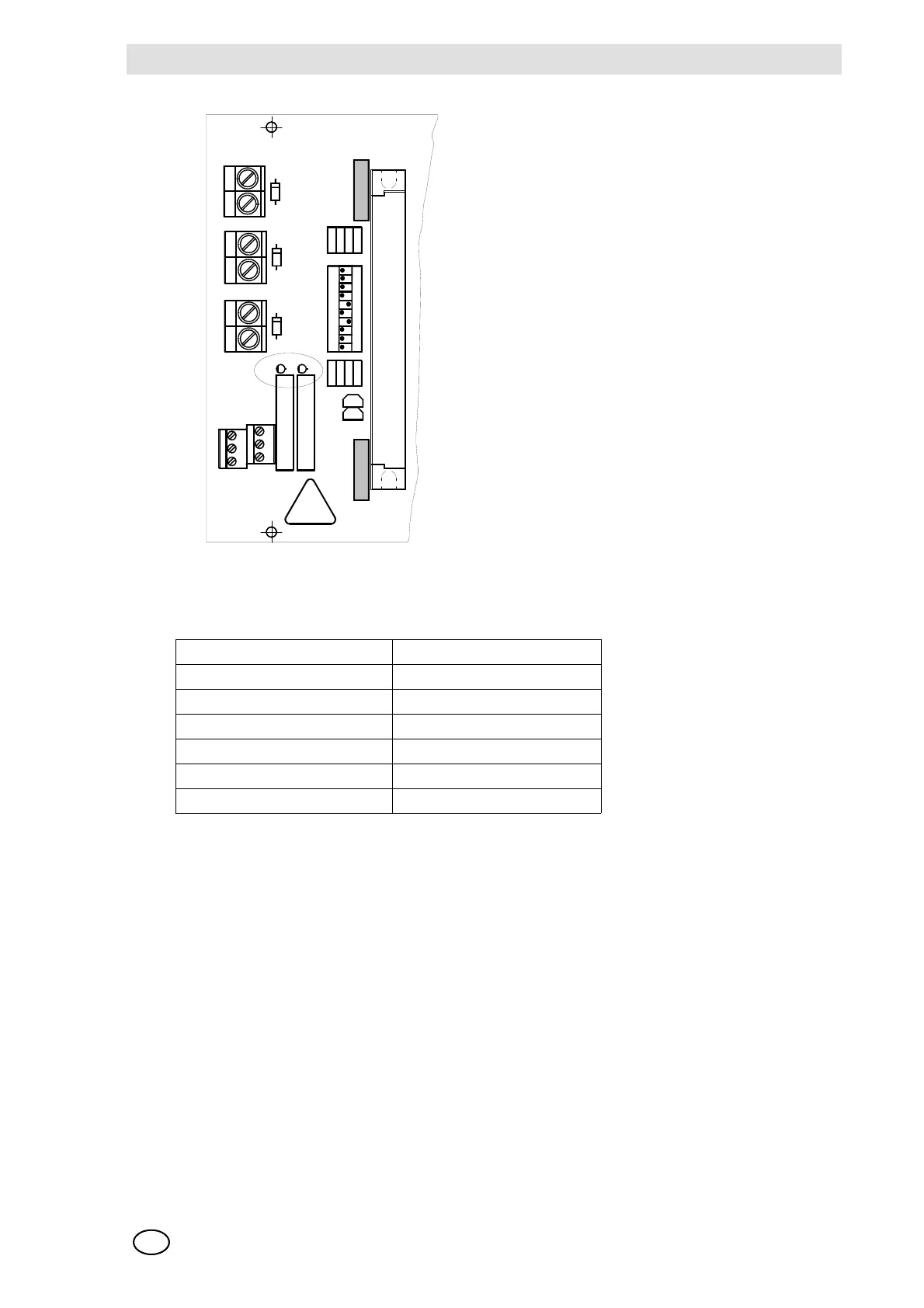

Fig. 131 MIB Module, connection terminals for the system failure relay
Terminal Assignment:
Fig. 132 MIB Module, System Fail Relay and Terminal Assignment
NOTE: Both system failure relays have to be interconnected such that the failure report is trig-
gered already when one relay is de-activated. This applies for remote racks, too.
10.8 Connection of the Switching Outputs
Up to 512 switching outputs can be controlled by the system via the MGO module (40 open col-
lector drivers per module). These switching outputs can be used to drive relays, magnetic valves,
and LEDs (24 VDC/300 mA). It must be remembered that the first 8 switching outputs of the first
MGO module in the system are permanently assigned to the common alarms, whereas the other
outputs can be configured as desired (Chapter 10.4). The switching outputs can be accepted by
an MGT 40 TS module installed on a mounting rail. The MGT 40 TS module must be connected
to the MUT module assigned to the MGO module by a 40-way ribbon cable.
The connection of switching outputs via the MAT module or the MAT TS module is not provided
for and not allowed!
X 601 Terminal No. Contact
7 Break contact relay 1
8 Centre contact relay 1
9 Make contact relay 1
10 Break contact relay 2
11 Centre contact relay 2
12 Make contact relay 2
