SUPREMATouch
196
Installation
MSA
US
NOTE: The outputs from this module (maximum +24 VDC/300 mA) are referenced to the SUPRE-
MA ground. Therefore, the ground of the module supply voltage must be connected to the ground
of the SUPREMA (ground of the power supply terminal at the MIB module).

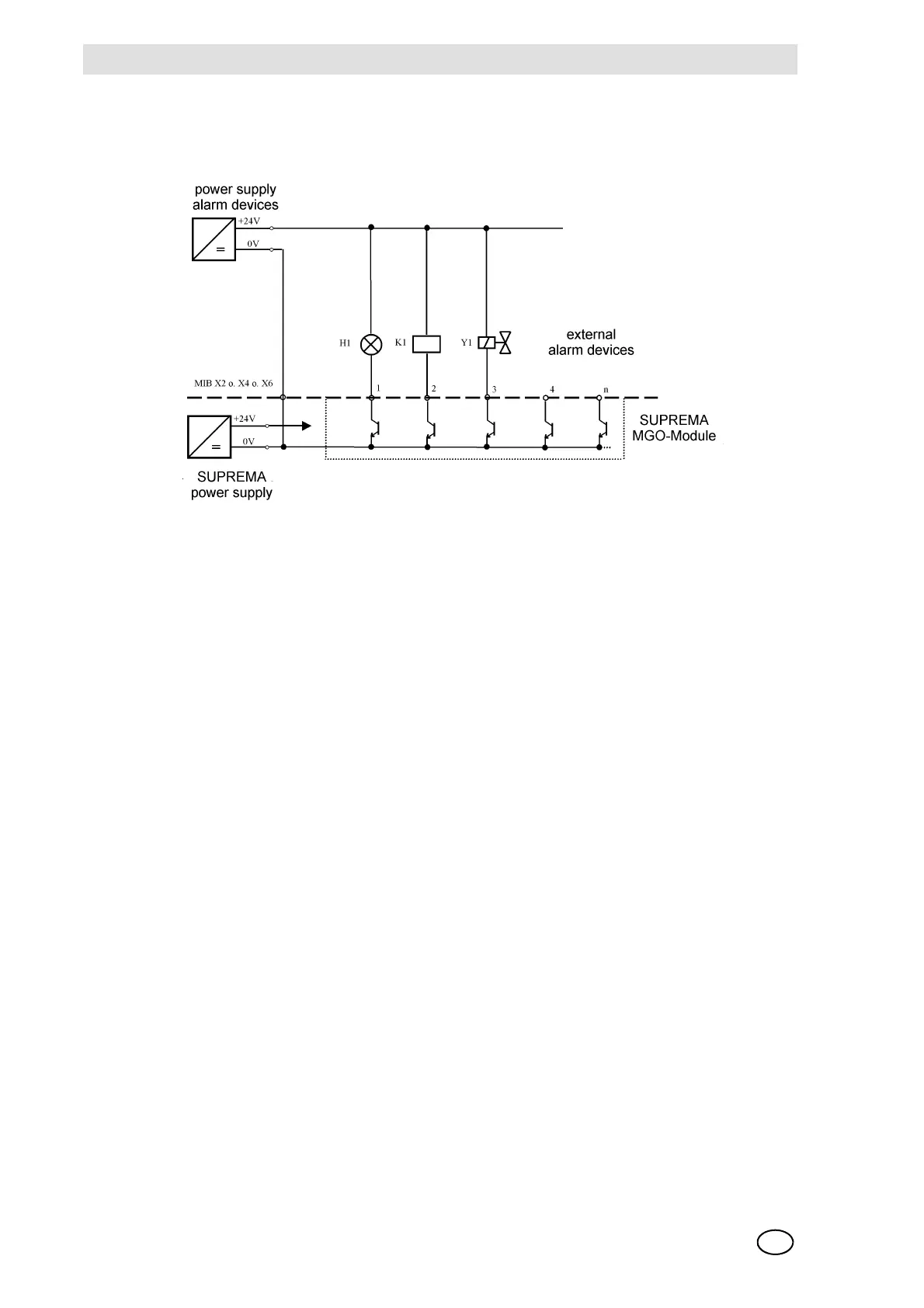

Fig. 133 Principle circuit diagram, connection of the switching outputs
NOTE: The load limits, described at chapter must be meet! (Chapter10.4)
Switching outputs are run as "open-collector" outputs, that is, an internal transistor of SUPREMA
switches the negative connection of the demand while the positive connection of the load is to be
connected directly to the 24V supply.
