15.16 SUPREMA Sensor Data Sheet 4-20 mA [3-wire]

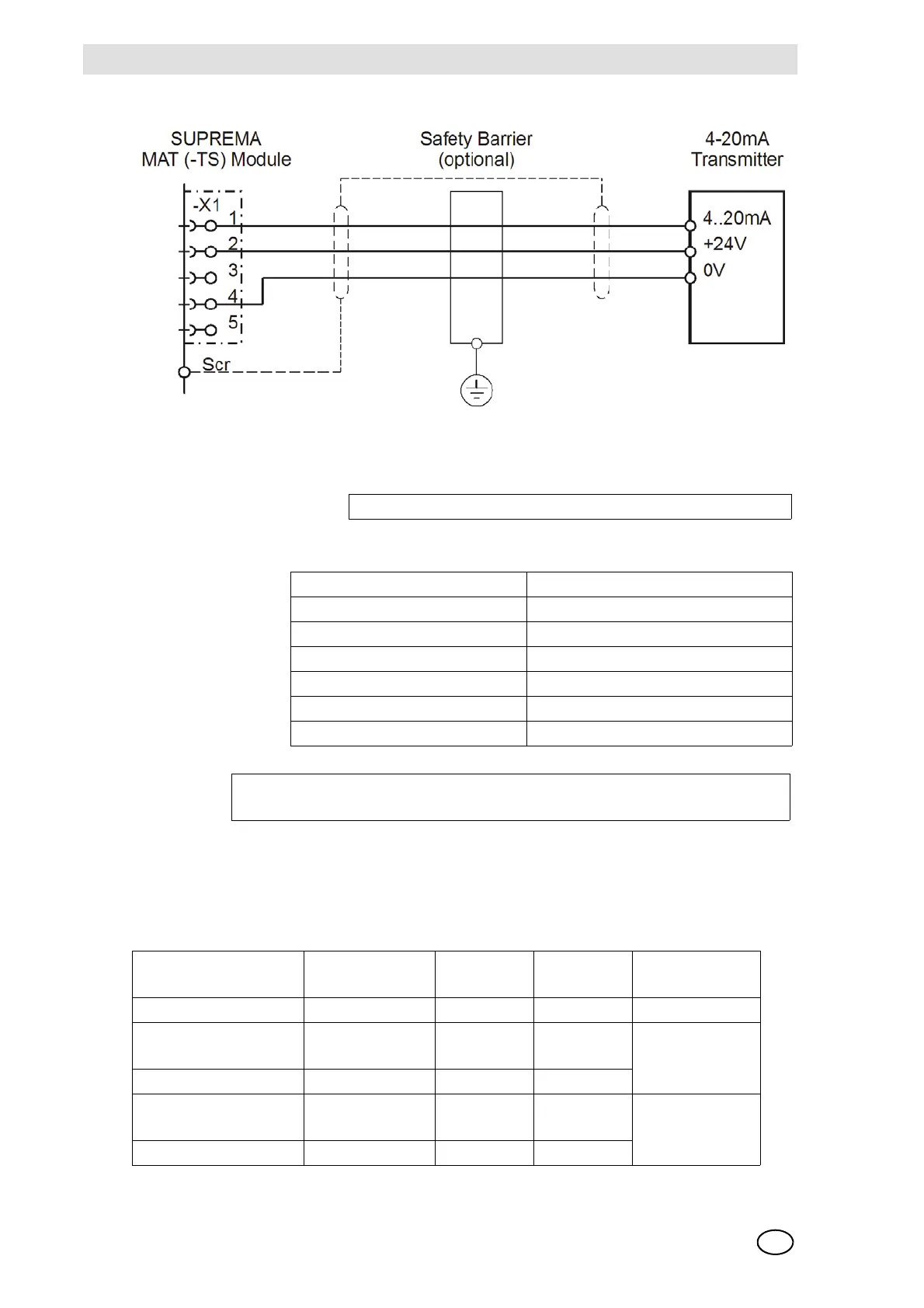

Fig. 195
The cable screen is only connected to the SUPREMA.
Connection module: MCI (active; 3-wire; 4 ... 20 mA; current source)
Sensor simulation module: 4 ... 20 mA (Order No.: 10030262)
Connection data: Supply voltage 19 ... 30 VDC
Supply current max. 400 mA
Cable type 3-core, 80 % screened
Maximum load Transmitter dependent
Maximum cable length Transmitter dependent
Cable diameter 9 ... 17 mm
Cross section per wire allowed 0.75 ... 2.5 mm
2
Conditions
for use:
For further details see operation manual of the transmitter.
Open or Short Circuit Fault Indication:
X= Signal failure (FAIL-LED)
XX= Alarm LEDs, Signal exceeded, Signal failure (FAIL-LED)
Open-circuit at the MAT
(TS) Module
Wire -X1/1 Wire -X1/2 Wire -X1/4 Disconnect plug
of MAT (TS)
Failure indication X X X X
Open-circuit at max. ca-
ble length
Wire -X1/1 Wire -X1/2 Wire -X1/4
Failure indication X X X
Short-circuit at the MAT
(TS) Module
Wire -X1/1/ -X1/2 Wire -X1/1/ -
X1/4
Wire -X1/2/ -
X1/4
Failure indication XX X X
