15.15 SUPREMA Sensor Data Sheet 4-20 mA [2-wire]

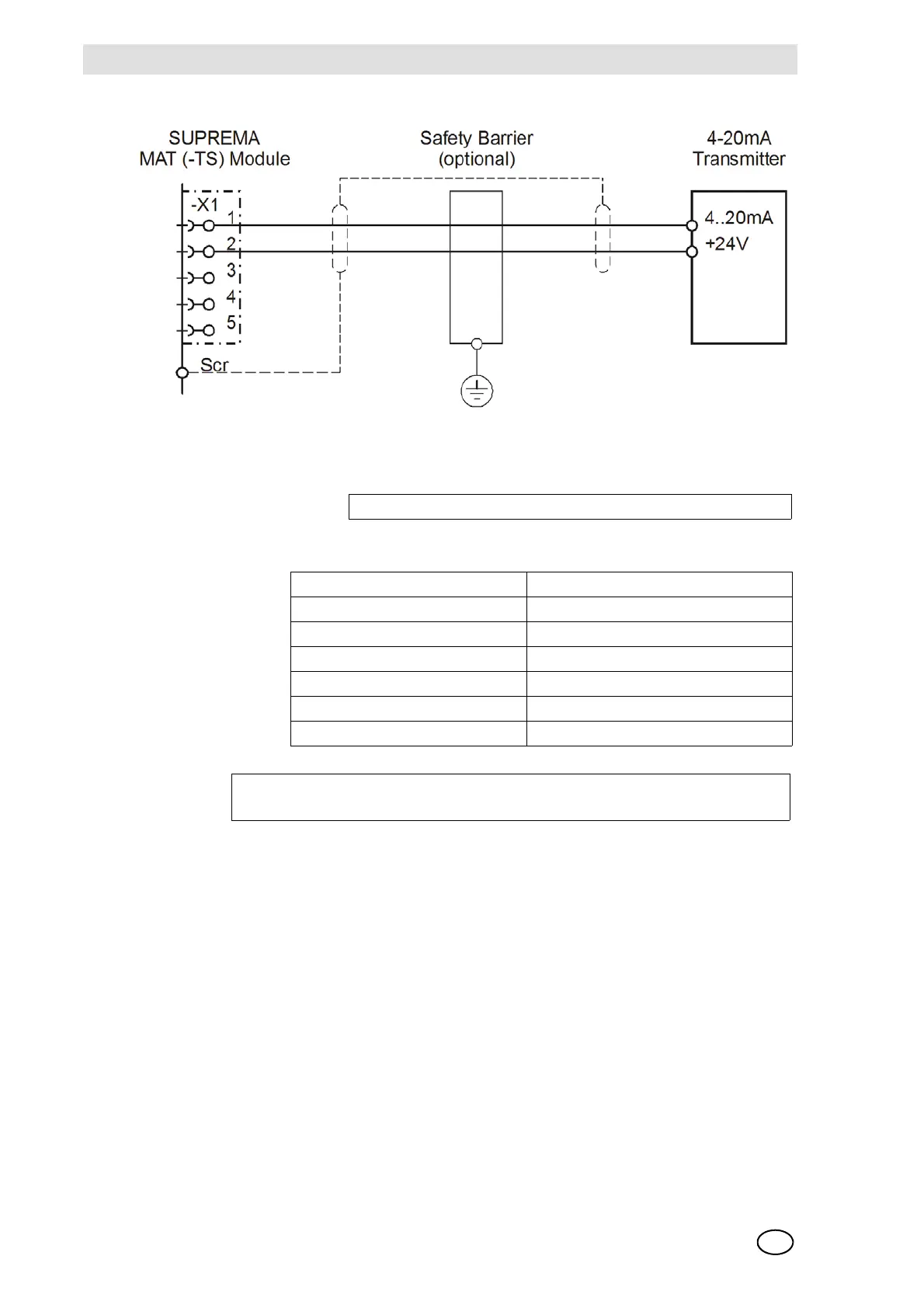

Fig. 194
The cable screen is only connected to the SUPREMA.
Connection module: MCI (active; 2-wire; 4 ... 20 mA; current sink)
Sensor simulation module: 4 ... 20 mA (Order No.: 10030262)
Connection data: Supply current max. 400 mA
Maximum power consumption 40 mA
Cable type 2-core, 80 % screened
Maximum load Transmitter dependent
Maximum cable length Transmitter dependent
Cable diameter 9 ... 17 mm
Cross section per wire allowed 0.75 ... 2.5 mm
2
Conditions
for use:
For further details see operation manual of the transmitter.
Open or Short Circuit Fault Indication:
X= Signal failure (FAIL-LED)
XX= Alarm LEDs, Signal exceeded, Signal failure (FAIL-LED)
