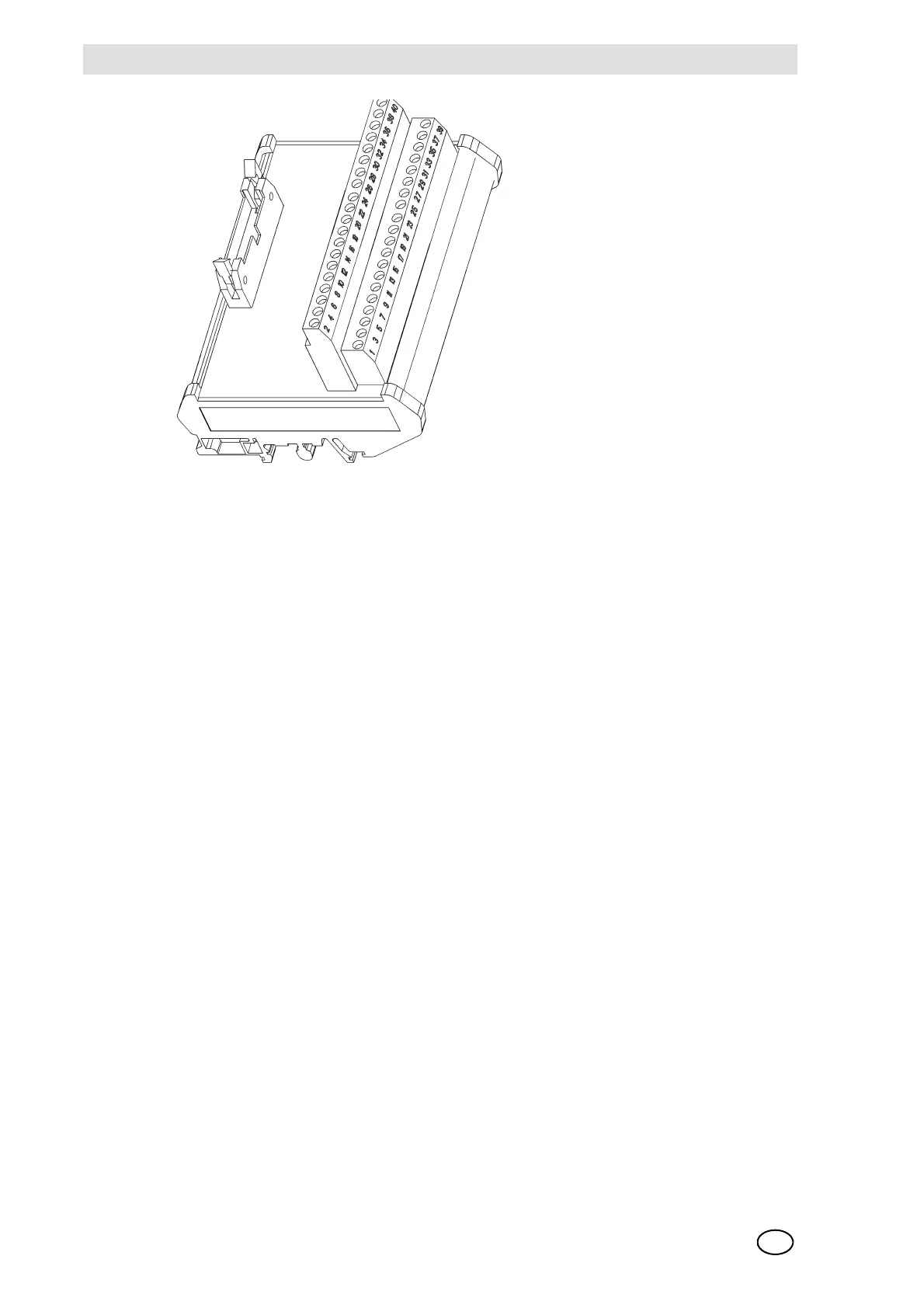

Fig. 135 MGT 40 TS Module
The cables are to be screened if excessive electromagnetic loads are possible (Chapter 10).
MHD TS Module (High Driver)
The MHD module is an external supplement of the MGO module inverting the MGO output signal.
Unlike the MGO module (= Low Driver), the MHD assembly switches loads which are jointly con-
nected to GND (= High Driver).
The MHD module is connected to the rack by 40-pin ribbon cable, and thus makes 40 outputs
available (24V/0.3 A).
40-pin ribbon cable connection at MUT (of MGO).
- 24 V supply and load connections (20 A maximum)
- Mounting on C or standard rail
- Outputs short-circuit-proof
Redundant supply must be realised externally.
