Operation of the System
SUPREMATouch
35
US
Relay output assignment window
This is not a subwindow of the Measure Point menu, but an independent window that can only be
reached from the Measure Point menu. It is used to assign relay outputs to the input selected in
the Measure Point menu. This window also provides the same function as the “Relay Output” win-
dow.
The top three rows of the menu cannot be accessed here and are only shown for information. The
behaviour of a relay output depends on its parameter settings and the settings of the appropriate
measure points [→ Installation and Start-Up Guide].

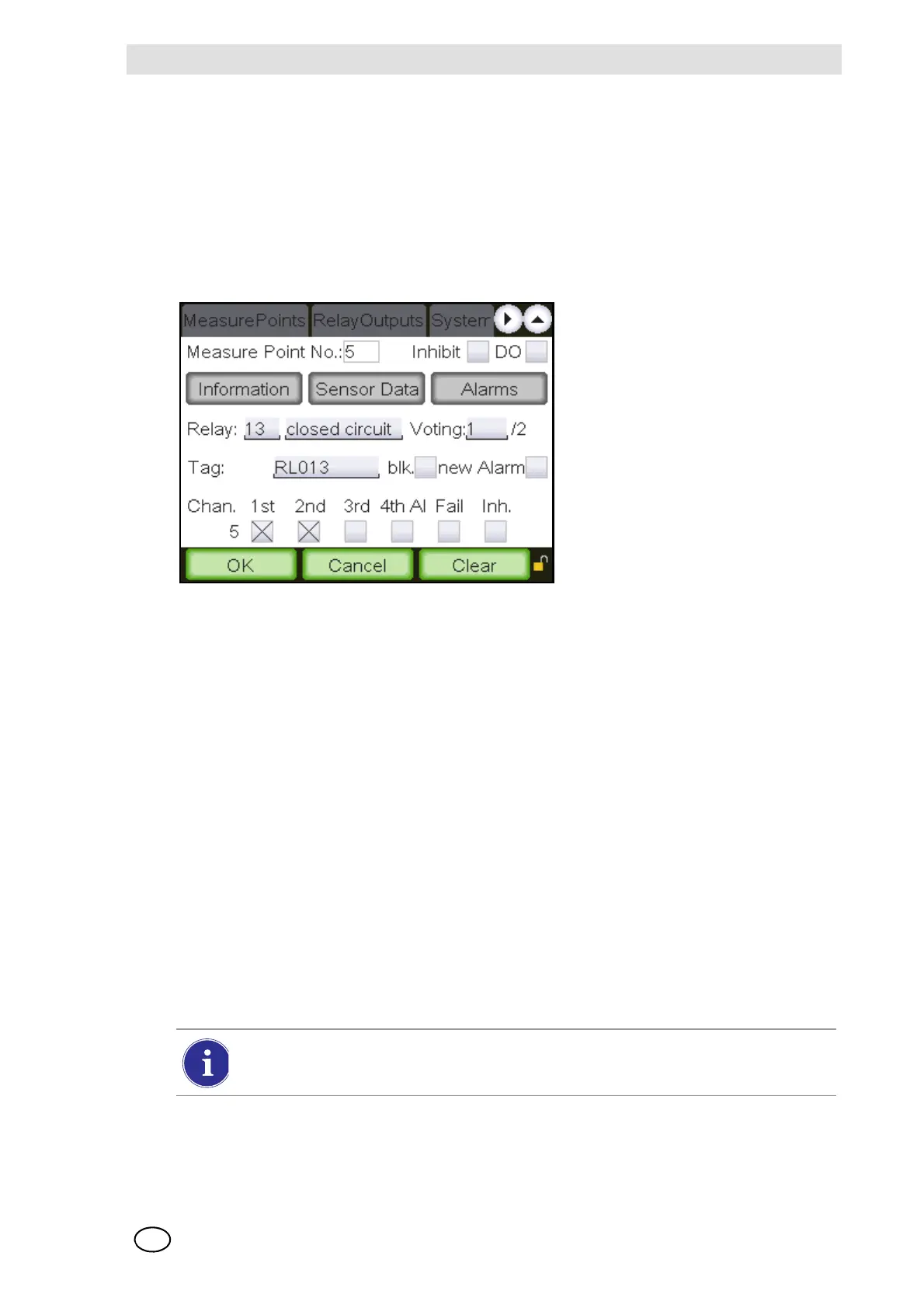

Fig. 16 Relay output assignment
The functions of the individual window elements are described below:
Relay
Field type: Selection field
This field contains a list of all available relay outputs. After an output number is selected, the rest
of the window is filled, if settings have already been entered for that output.
If an output number is selected that has not been configured before, the settings from the last dis-
played output remain and are used as the preliminary settings for the new output. This makes it
easy to copy the settings from one output to another. If an output is displayed that has not yet been
configured, default values are used as the preliminary settings for the input of certain fields.
This input field can be accessed without a key switch or password if an output has been selected
for which parameters have already been set. If a number is entered that has not been used before,
authorisation by means of a password or key switch is required.
When first opened, the field contains the relay output that was last selected in the Measure Point
window.
All parameter changes using the menu elements described below apply to the relay out-
put selected in this field.
