17
2019 MST Global Commercial in Confidence
XON Digital Plat
orm
User Manual
Revision A

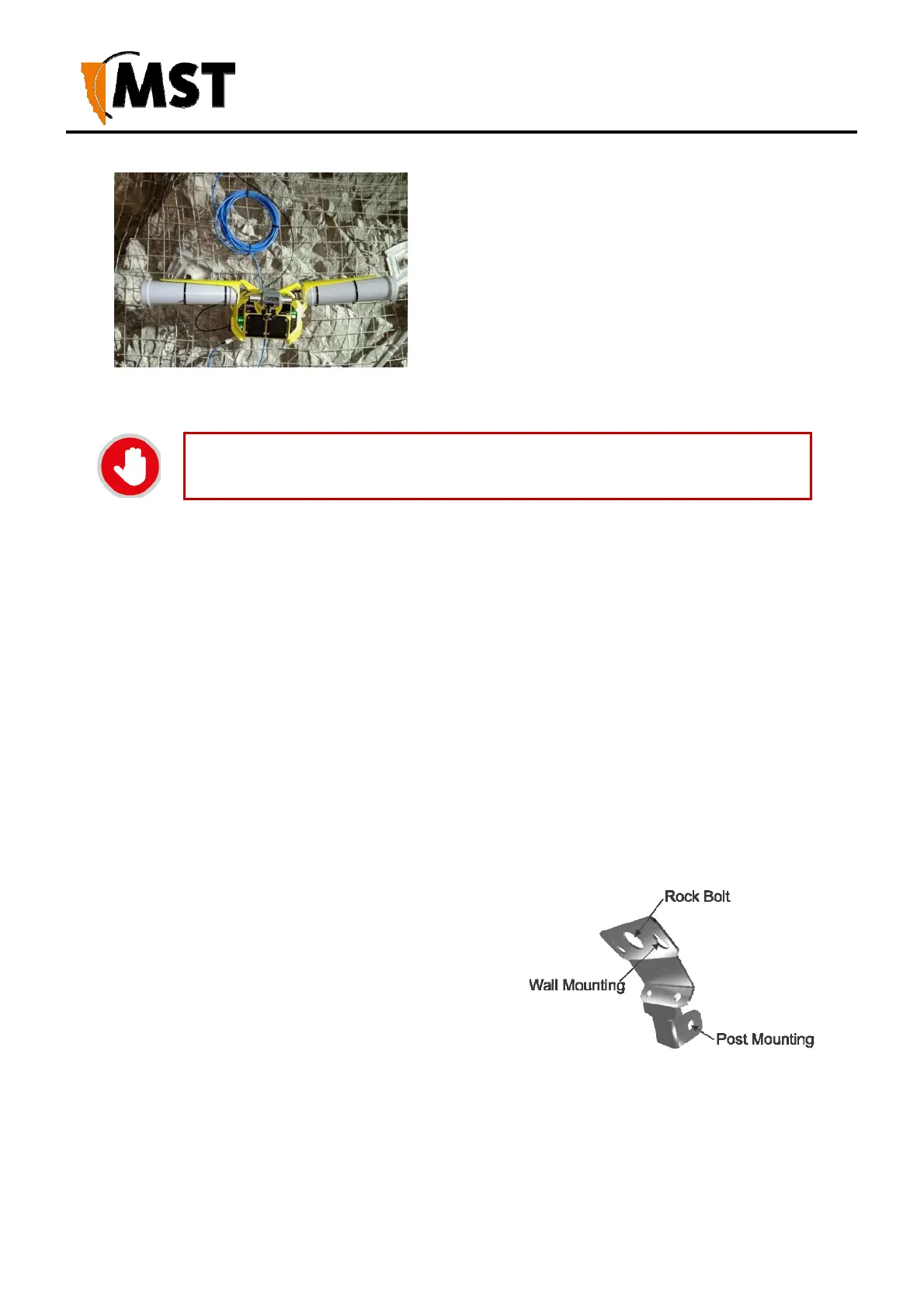

Step 5. install AXON Core & Air
The AXON Core mounting plate can be
mounted in various convenient ways.
On this picture you can see a preferred
way of using two 12 mm chemical
anchors.
Any combination may be used to fix the
plate e.g. 24 mm rock bolt and 12mm
chem anchor.
CAUTION: The above mounting method maybe not suitable for your particular
situation. If in doubt consult with your Geo-Technical team or your supervisor.
5.2
AXON Air Mounting Options
The AXON Air wireless access point is commonly mounted onto the AXON Core unit as depicted at
Step 5 in the previous paragraph. There will be situations where it is advantageous to mount AXON Air
in a different location to AXON Core or where AXON Core is not required, e.g. when AXON Air is
chained to another AXON Air. For this purpose, a separate mounting plate is included with AXON Air.
A convenient way to mount AXON Air is to use a mounting post as shown on the photo below. The
procedure is similar to the AXON Core mounting method shown above. The 12mm threaded anchor (W-
MNT-025) is glued into a hole in the rock wall and the yellow mounting post (W-MNT-019) with AXON
Air attached to it is screwed on top of the anchor. A M12 nut can be used to counter lock the pole,
stopping it from spinning, if required.
The mounting plate has two key holes that are used for wall or rock face mounting.
AXON Air Mounting Bracket
