5.4.4 Installation at an Intersection

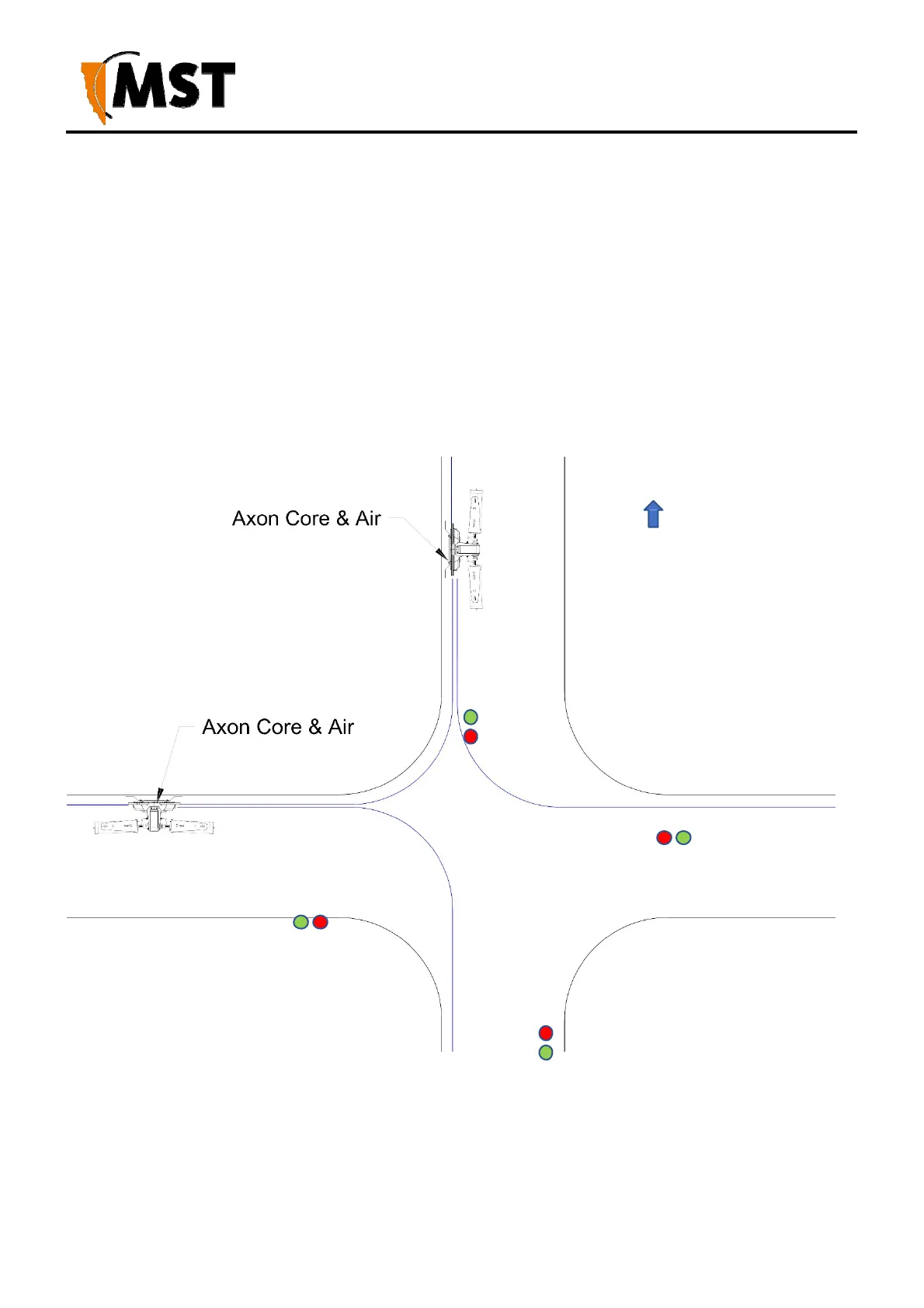

An example installation scheme for an intersection is shown in Figure 12: Installation Scheme at an
intersection.
At intersection where fibre connection is required to be continued in all directions, two AXON Core
Nodes are required. The distance from the intersection depends on the specific requirements.
It may be appropriate to move one AXON core with AXON Air attached to it (B) as far as 400 m into the
northern spore roadway and the other (A) in the orthogonal direction closer to the intersection.
A traffic light solution can be implemented if an optional AXON Control module is used inside of the unit
(A). It can be programmed to operate independently of the network.
B
N
A
Figure 12: Installation Scheme at an intersection
