75
©
2019 MST Global Commercial in Confidence
A
XON Digital Plat
f
orm
User Manual
Revision A
7.5.10 Configuring the VLAN Port Map
The VLAN Port Map screen assigns the VLAN(s) to each physical switch port, and each wireless network.
The screen is shown in Figure 37: VLAN Port Map screen.
Physical switch ports can be assigned as Trunk or Access ports. Wireless networks always act as
Access ports on the selected VLAN.

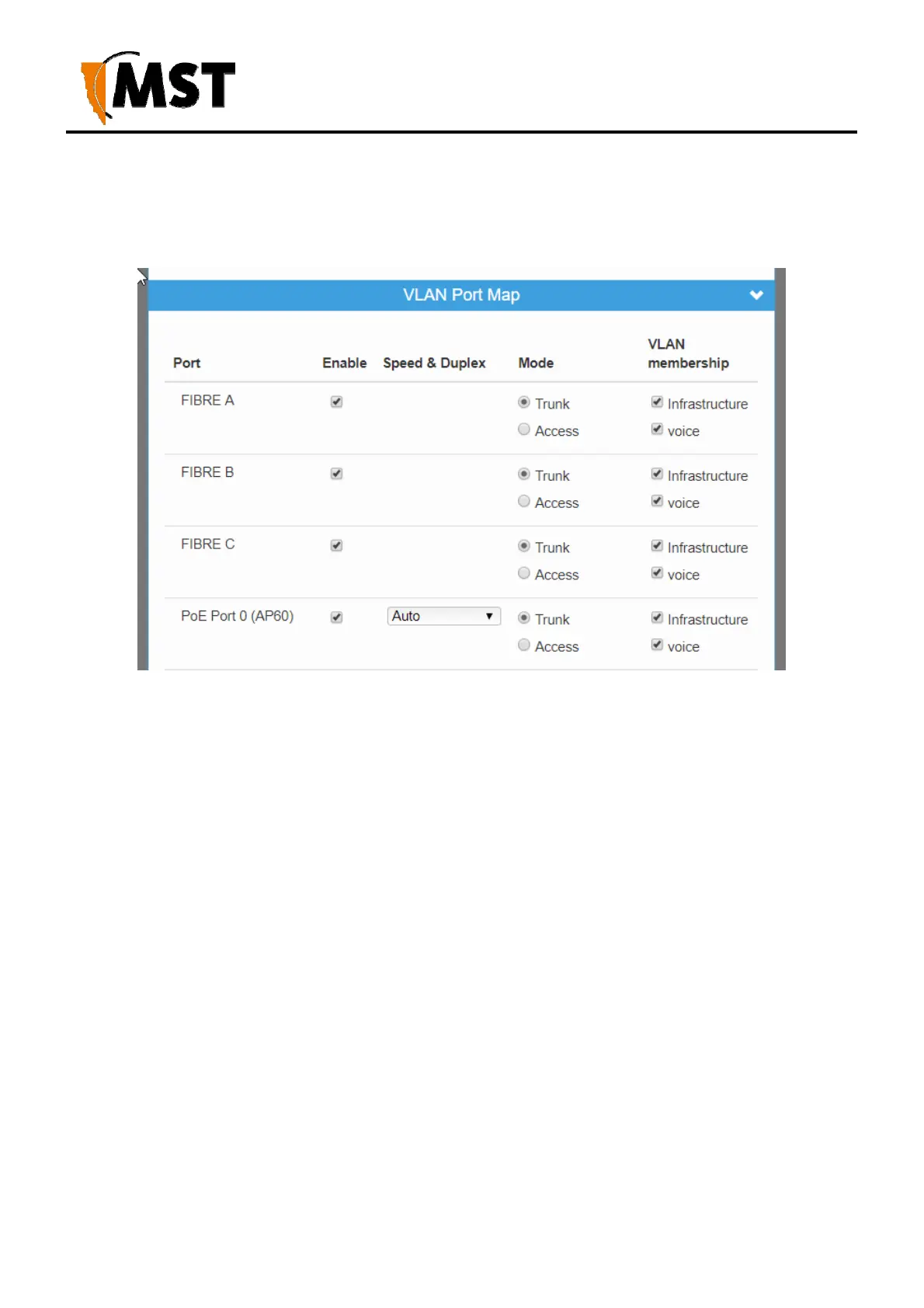

Figure 37: VLAN Port Map screen
