20
©
2019 MST Global Commercial in Confidence
A
XON Digital Plat
f
orm
User Manual
Revision A
5.4
Installation Schemes
The installation and placement of antennas and AXON Core units will depend on the wireless coverage
type, rock type and tunnel topology. A few examples of installation schemes in a mine are described and
illustrated in the following sections.
5.4.1 Installation in a Straight Drive
An example of a straight drive installation scheme is shown in Figure 9: Installation scheme in a straight
drive.
In this example, multiple AXON Core units are fitted with AXON Air access points utilising 15dBi helical
antenna. This creates constant coverage as may be required by a vehicle traveling along the roadway.

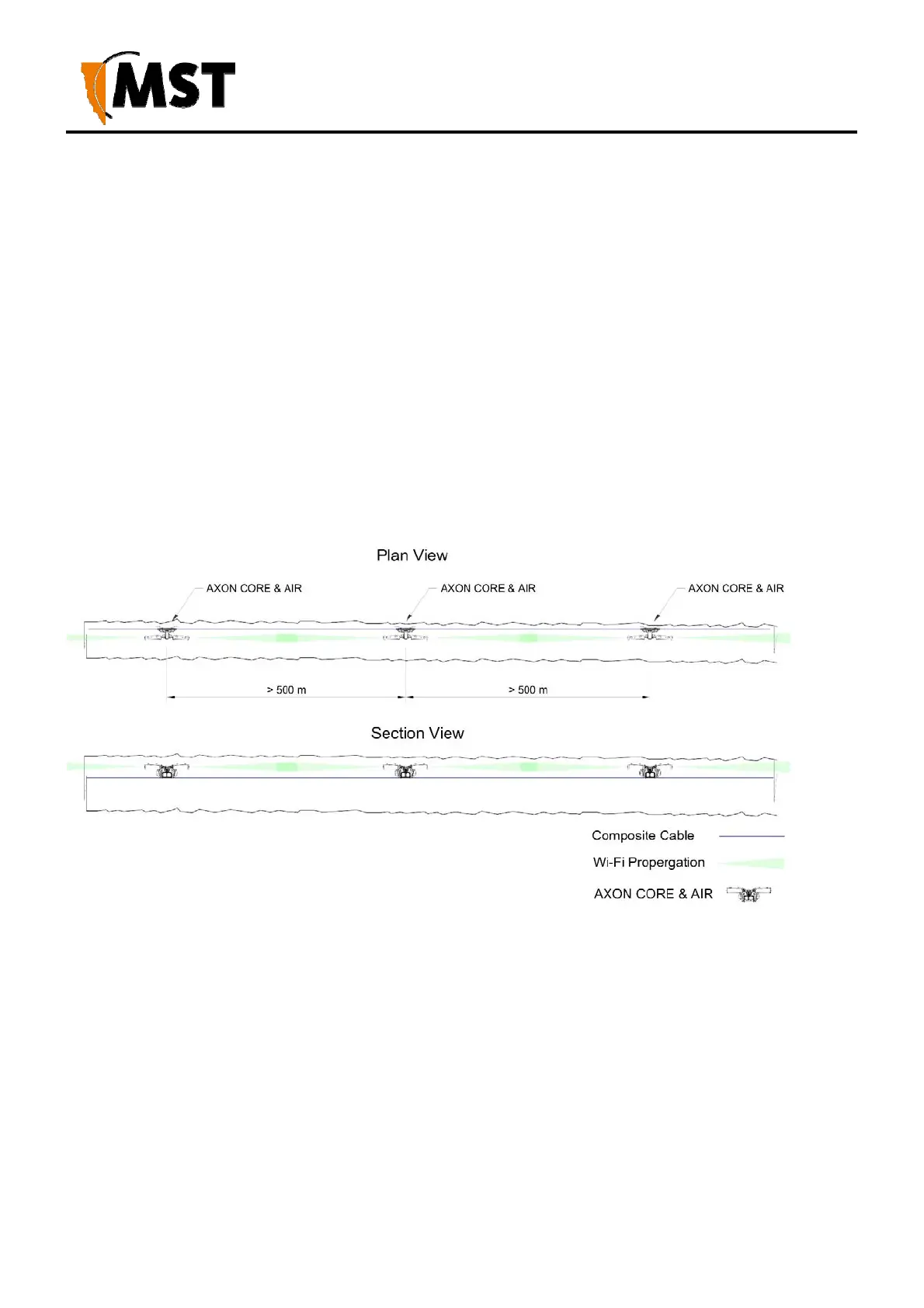

Figure 9: Installation scheme in a straight drive
