19
©
2019 MST Global Commercial in Confidence
A
XON Digital Plat
f
orm
User Manual
Revision A

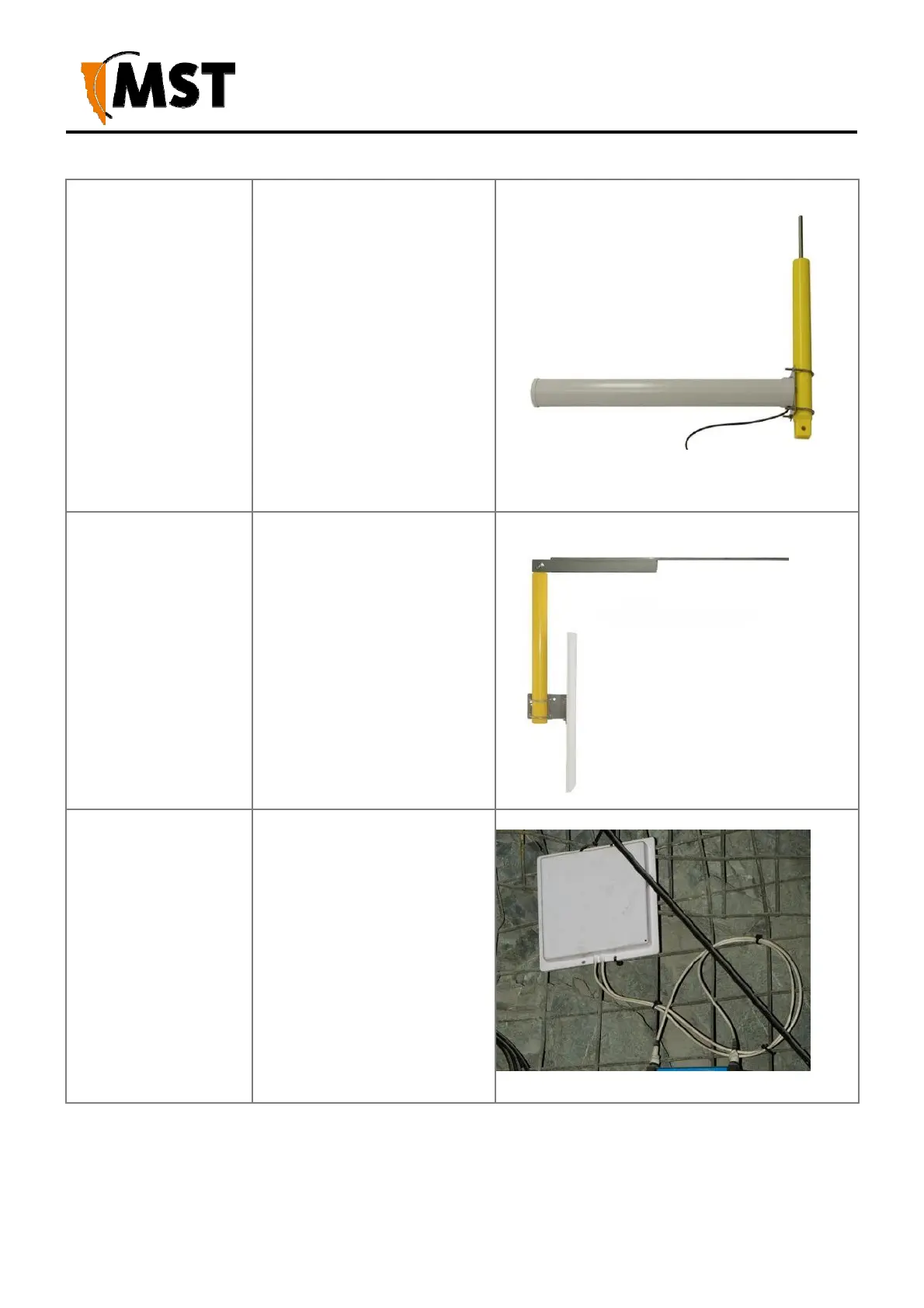

Mounting a Yagi
antenna or panel
antenna to the mine
tunnel roof.
In instances where it is
required to separate the
antenna from AXON Air, an
antenna can be connected
via an (up to) 20 m Coaxial
cable.
A hole is drilled into the
tunnel roof and the mounting
pole is secured using
chemset adhesive. The Yagi
antenna is attached to the
mounting pole using U-
clamps
Mounting a Yagi
antenna or panel
antenna at a portal
In situation where the drilling
is not possible or prohibited,
specialised mounts can be
manufactured.
Mounting a panel
antenna on the rock
face or mesh
The panel antenna is cable
tied to the mesh, ensure the
antenna is not obstructed by
objects and avoid mounting
it close (400 mm or less) to
large steel structures.
