7.12
Coolant Circuit, General, High-Temperature Circuit

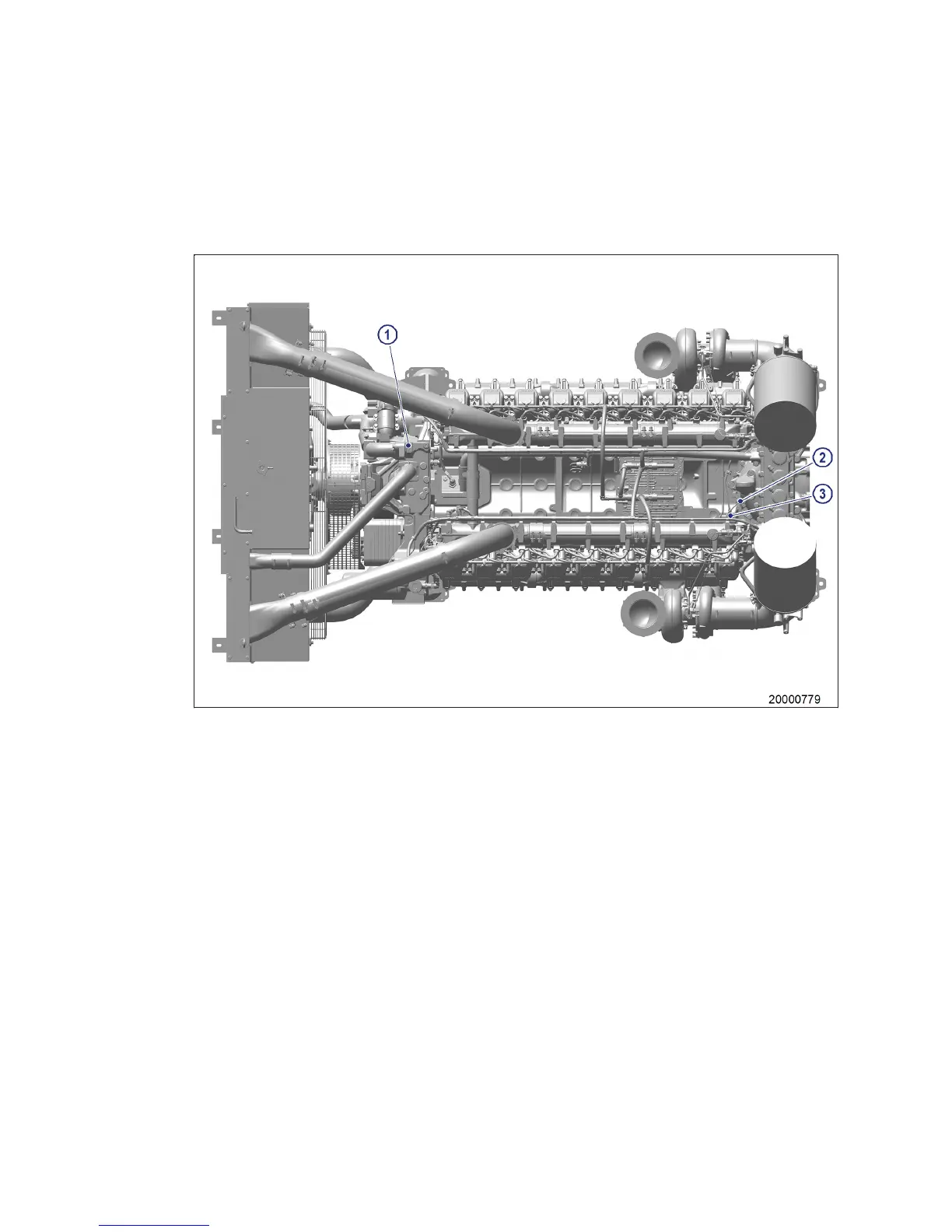

7.12.1
Drain and vent points
Plan view
1
HT circuit coolant ventila-
tion
2
HT circuit coolant ventila-
tion
3
HT circuit coolant ventila-
tion
Also applies to 12 V and 16 V engines.
104
|
Task Description
|
MS150118/00E 2014-07
TIM-ID: 0000053457 - 001
103
105
Table of Contents
Default Chapter
1
Operating Instructions
1
Table of Contents
3
1 Safety
5
Important Requirements for All Products
5
Personnel and Organizational Requirements
6
Transport
7
Safety Requirements for Maintenance and Repair Work
8
Fire Prevention and Environmental Protection, Fluids and Lubricants, Auxiliary Materials
11
Compressed Air
12
Standards for Safety Notices in the Text
13
2 General Information
14
Engine Side and Cylinder Designations
14
Engine Overview
15
3 Technical Data
18
Engine Data 12, 16, 18 V 2000 B26 F
18
Engine Data 12, 16, 18 V 2000 B76 Switchable 1500 Rpm
24
Engine Data 12, 16, 18 V 2000 B76 Switchable 1800 Rpm
30
Engine Data 12, 16 V 2000 G16 F
36
Engine Data 12, 16, 18 V 2000 G26 F
40
Engine Data 12, 16, 18 V 2000 G76 F
45
Engine Data 16 V 2000 G36 F
50
Firing Order
54
Engine - Main Dimensions
55
4 Operation
56
Preparing Startup after Long Out-Of-Service Periods (>3 Months)
56
Preparations for Startup after Scheduled Out-Of-Service-Period
57
Starting the Engine
58
Operation Monitoring
59
Engine - Stopping
60
Emergency Stop
61
After Stopping the Engine
62
Plant - Cleaning
63
5 Maintenance
64
Maintenance Schedule - Task Reference Table [QL1]
64
6 Troubleshooting
65
Engine
68
Engine - Cranking Manually
68
Engine - Barring with Starting System
69
7 Task Description
68
Crankcase Breather
70
Crankcase Breather - Oil Mist Fine Separator Replacement
70
Valve Drive
71
Valve Clearance - Check and Adjustment
71
Adjusting Valve Clearance
72
Cylinder Head Cover - Removal and Installation
74
Injection Valve / Injector
75
Injector - Replacement
75
Injector - Removal and Installation
76
Injector Functions
81
Fuel System
82
HP Fuel Line and Pressure Pipe Connection - Replacement
82
Fuel System - Venting
85
Fuel - Draining
86
Fuel Filter
87
Fuel Filter - Replacement
87
Fuel Prefilter - Differential Pressure Gage Check and Adjustment of Gage
88
Fuel Prefilter - Draining
89
Fuel Prefilter - Flushing
90
Fuel Prefilter - Filter Element Replacement
92
Air Filter
93
Air Filter - Replacement
93
Air Filter - Removal and Installation
94
Air Intake
95
Service Indicator - Signal Ring Position Check
95
Starting Equipment
96
Electric Starter - Overview
96
Starter - Removal
97
Starter - Installation
98
Lube Oil System, Lube Oil Circuit
99
Engine Oil - Level Check
99
Engine Oil - Change
100
Oil Filtration / Cooling
101
Engine Oil Filter - Replacement
101
Centrifugal Oil Filter - Cleaning and Filter Sleeve Replacement
102
Circuit
104
Engine Coolant – Level Check
108
Engine Coolant – Change
109
Engine Coolant ‒ Draining
110
Engine Coolant – Filling
111
Engine Coolant Pump – Relief Bore Check
113
Engine Coolant – Sample Extraction and Analysis
114
Belt Drive
115
Drive Belt – Tension Check
116
Drive Belt ‒ Tension Adjustment
118
Drive Belt – Replacement
119
Battery-Charging Generator
120
Fuel Supply System
122
Differential Pressure Gauge – Check
123
Water Level Probe (3-In-1 Rod Electrode Check
124
Pump Capacity – Check
125
Coalescer Filter Element – Replacement
126
Engine Governor
128
Installation
129
Engine Governor Plug Connections – Check
130
Wiring (General) for Engine/Gearbox/Unit
131
Accessories for (Electronic) Engine Governor / Control System
132
Engine Governor Plug Connections – Check
133
8 Appendix A
134
List of Abbreviations
134
MTU Contact Persons/Service Partners
136
9 Appendix B
137
Special Tools
137
Index
145
