7.13.4 Drive belt – Replacement
Preconditions
☑Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Drive belt
(→ Spare Parts Catalog)
Fan drive – Drive belt replace-
ment
1. Remove protective cover from cooler.
2. Remove protective grill from fan.
3. Remove fan.

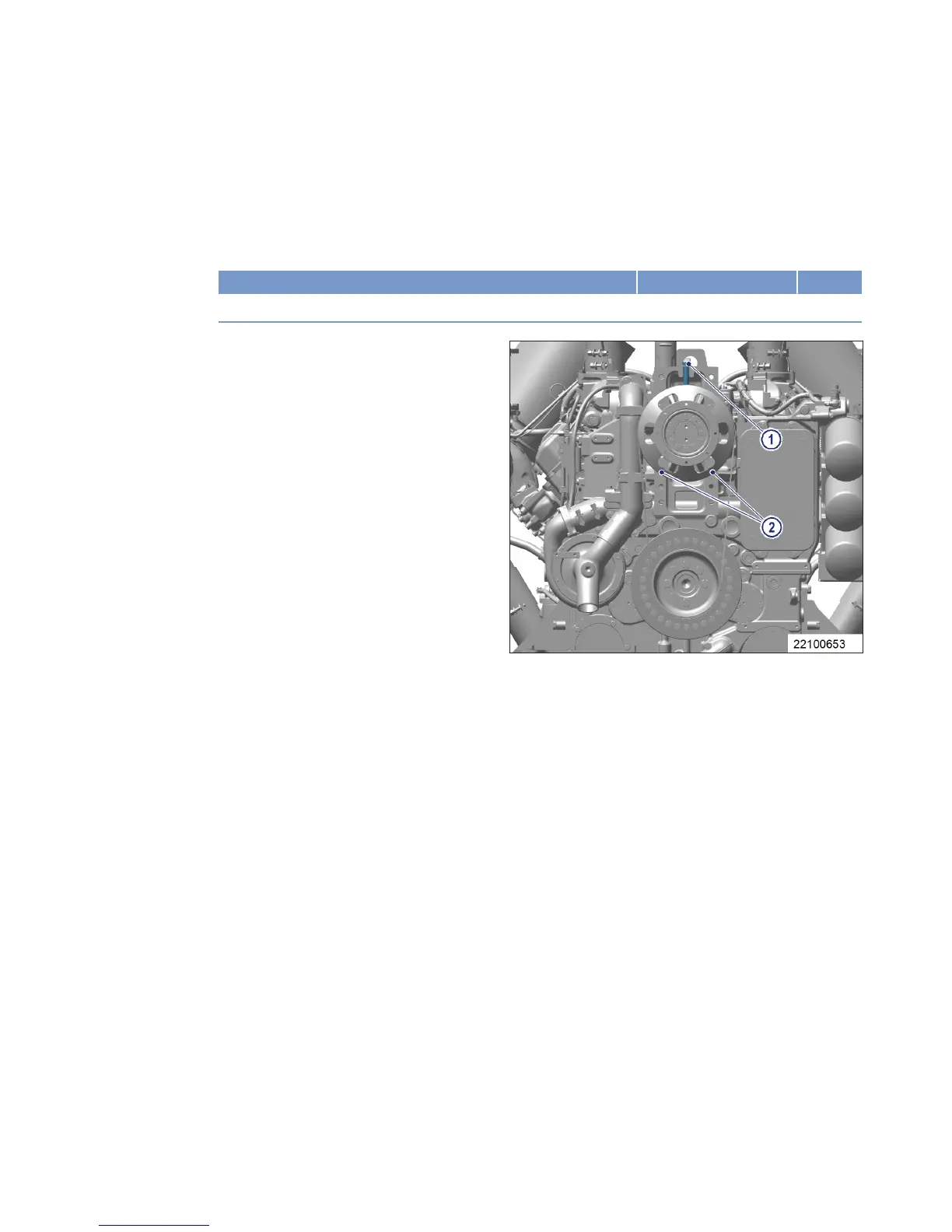

4. Undo securing screws (1).
5. Unscrew screw (2) as far as necessary to
allow drive belt removal.
6. Check belt pulley on fan bearing mount and
crankshaft for contamination and clean if
necessary.
Note: When placing the drive belt in the grooves,
no force must be applied.
7. Fit new drive belt.
8. Adjust and check drive belt tension
(→ Page 118).
9. Install fan.
10. Install protective grill on fan.
11. Install protective cover on cooler.
MS150118/00E 2014-07 | Task Description | 119
TIM-ID: 0000054754 - 001
