7.13.3 Drive belt ‒ Tension adjustment
Preconditions
☑Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Torque wrench, 20-100 Nm
F30026582 1
Ratchet
F30027340 1
Torque wrench, 40-200 Nm
F30027337 1
Engine oil
Drive belt ‒ Tension adjustment
1. Remove protective cover from cooler.
2. Remove protective grill from fan.

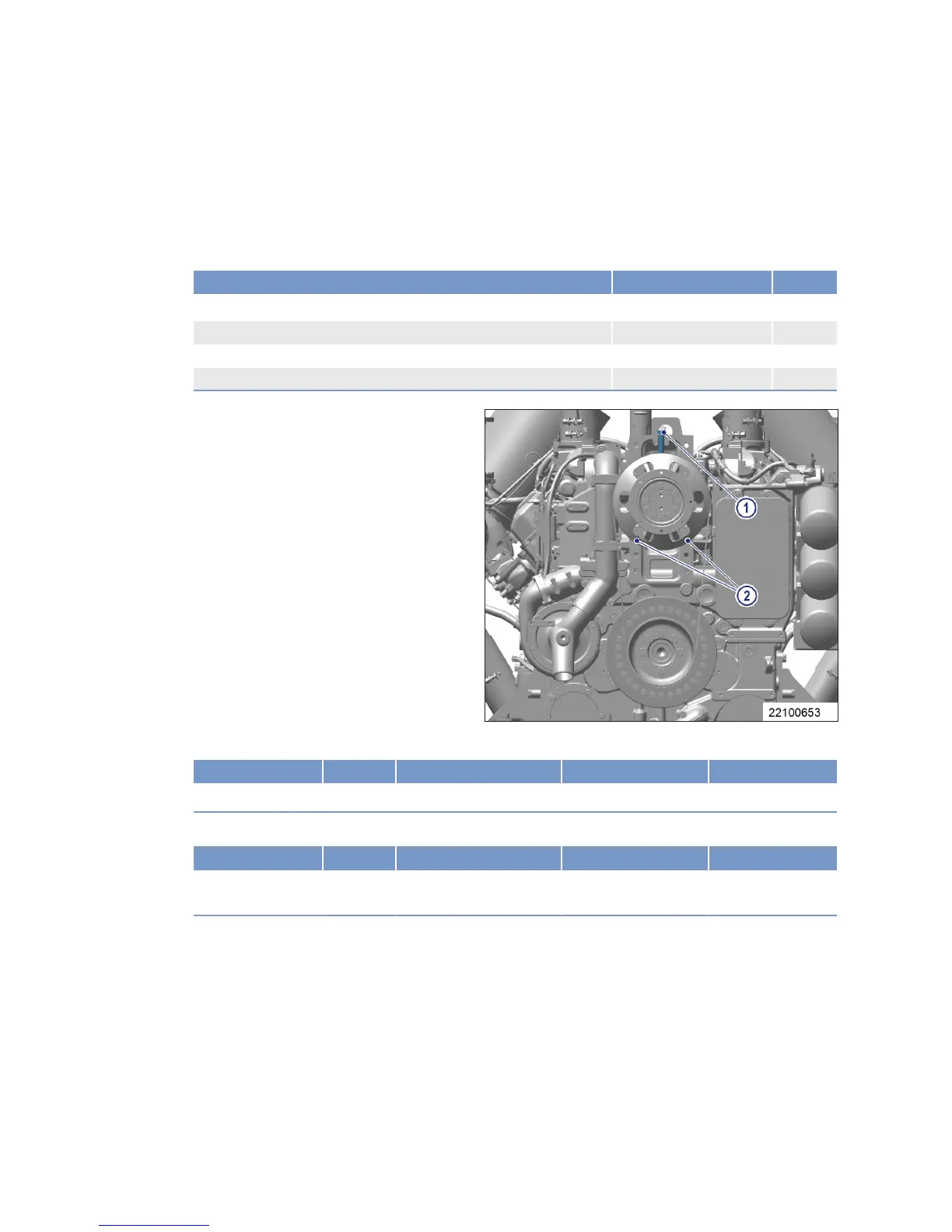

3. Loosen screws (1) slightly.
4. Adjust belt tension acc. to specifications
with screw (2) (→ Page 116).
5. Use torque wrench (1) to tighten screws to specified tightening torque.
Name Size Type Lubricant Value/Standard
Screw M16 x 50 Tightening torque (Engine oil) 180 Nm +18 Nm
6. Tighten screw (2) to specified torque using a torque wrench.
Name Size Type Lubricant Value/Standard
Screw M16 x
200
Tightening torque (Engine oil) 50 Nm +5 Nm
7. Install protective grill on fan.
8. Install protective cover on cooler.
118 | Task Description |
MS150118/00E 2014-07
TIM-ID: 0000053490 - 001
