7.15.5 Coalescer filter element – Replacement
Preconditions
☑System is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Torque wrench, 6-50 Nm
F30027336 1
Ratchet
F30027339 1
Diesel fuel
Engine oil
Coalescer filter element
(→ Spare Parts Catalog)
Gasket
(→ Spare Parts Catalog)
WARNING
Fuels are combustible.
Risk of fire and explosion!
• Avoid open flames, electrical sparks and ignition sources.
• Do not smoke.
NOTICE
Contamination of components.
Damage to component!
• Observe manufacturer's instructions.
• Check components for special cleanliness.
NOTICE
Incorrect installation of components and lines.
Damage to component!
• Ensure that components/lines are installed so that they are never under tension or strain.
• Ensure correct installation position of components.

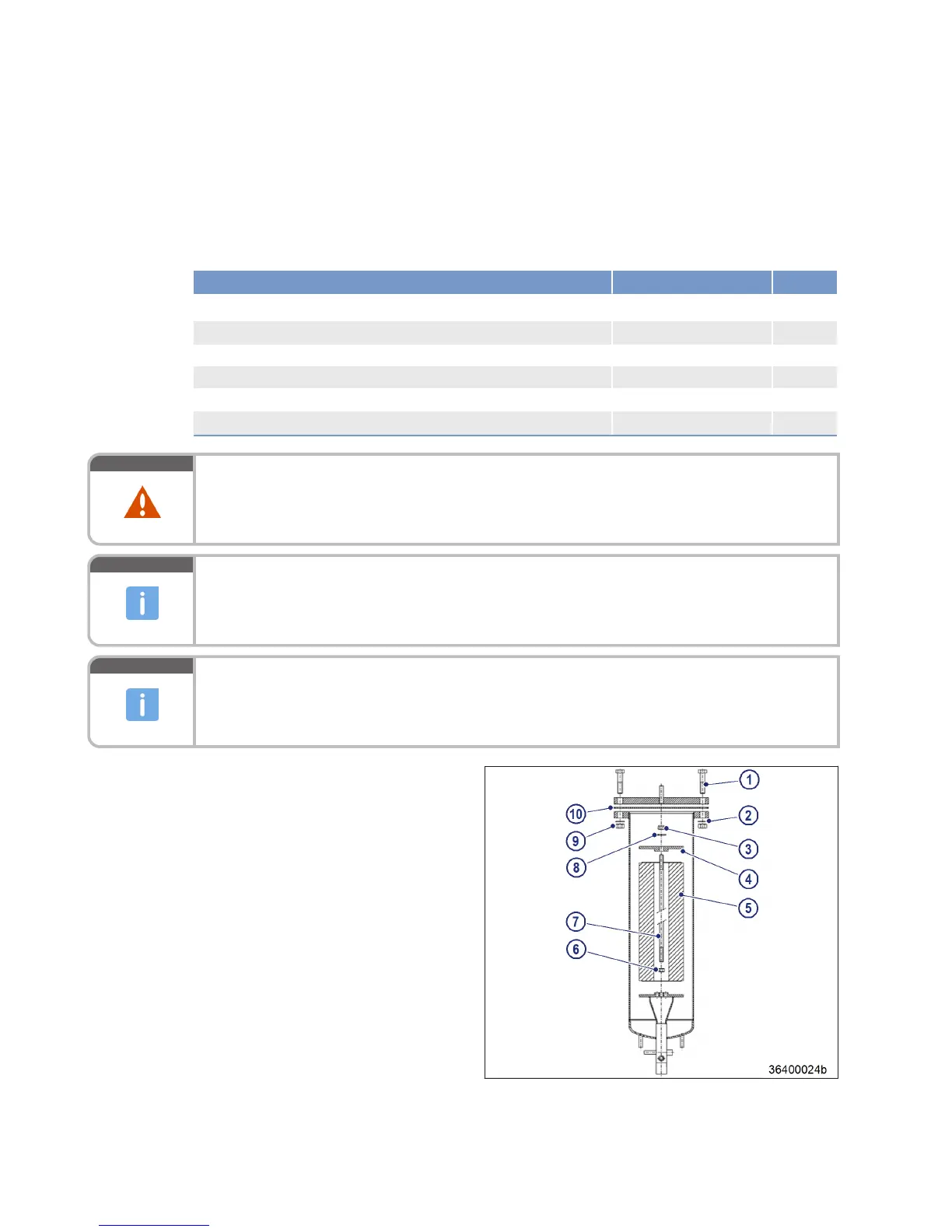

Coalescer filter element – Re-
placement
1. Close ball valve at the inlet and outlet of
the fuel treatment system.
2. Open drain valve.
3. Drain fuel.
4. Close drain valve.
5. Remove nuts (9) and washers (2).
6. Remove screws (1).
7. Remove cover with gasket (10).
8. Remove nut (3), washer (8) and end
plate (4).
9. Remove coalescer filter element (5).
10. Catch fuel as it runs out.
11. Clean housing with a non-linting cloth,
rinse with fuel if required.
12. Check housing for corrosion.
13. Clean housing sealing surfaces.
14. Install coalescer filter element (5).
15. Install end plate (4), washer (8) and nut (3).
126 | Task Description | MS150118/00E 2014-07
TIM-ID: 0000007735 - 009
