7.8 Air Intake
7.8.1 Service indicator – Signal ring position check
Preconditions
☑Engine is stopped and starting disabled.
Checking signal ring position

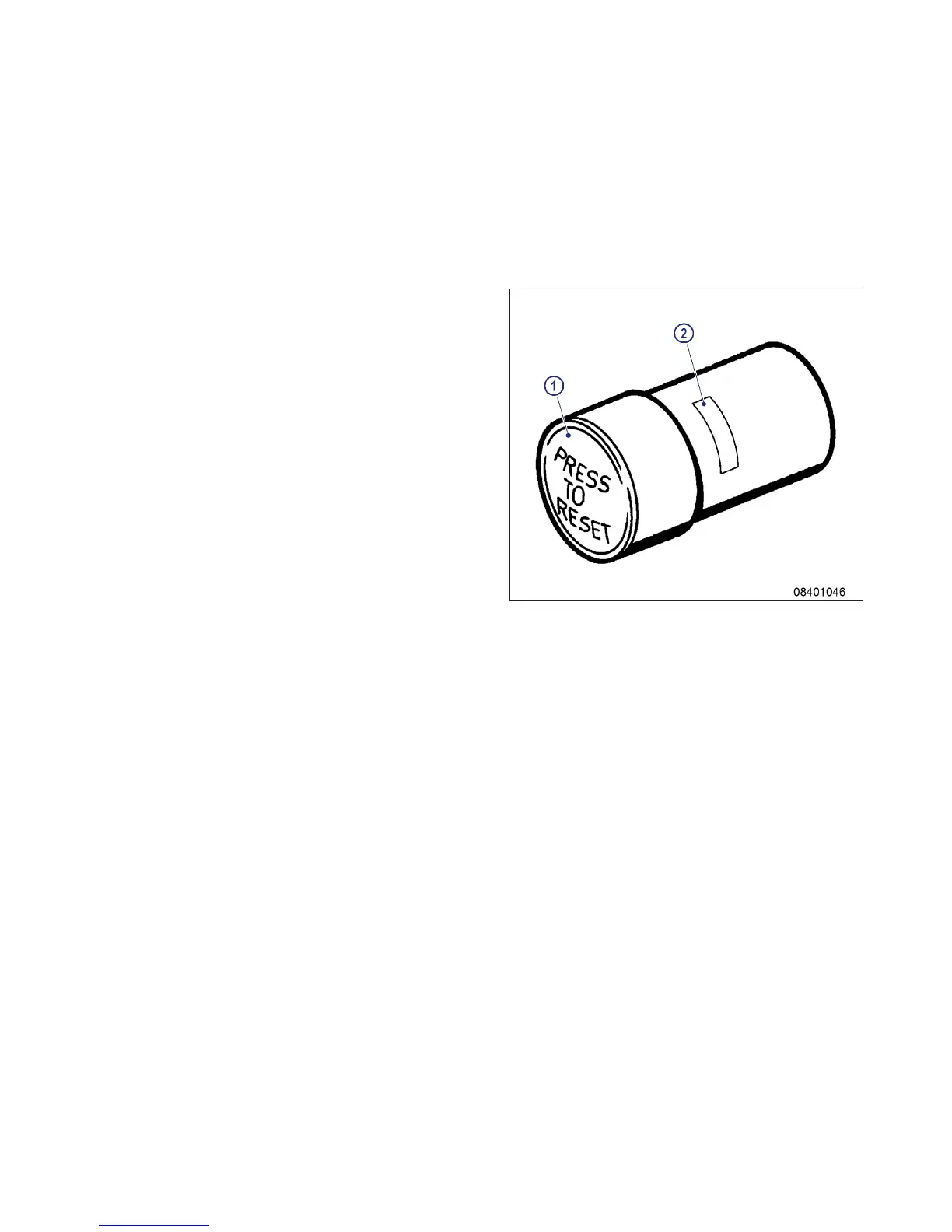

1. If the signal ring is completely visible in the
control window (2), replace air filter
(→ Page 93).
2. After installation of new filter, press reset
button (1).
Result: Engaged piston with signal ring moves
back to initial position.
MS150118/00E 2014-07 | Task Description | 95
TIM-ID: 0000005484 - 009
