7.6.5 Fuel prefilter – Filter element replacement
Preconditions
☑Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Diesel fuel
Filter element
(→ Spare Parts Catalog)
Gasket
(→ Spare Parts Catalog)
WARNING
Fuels are combustible.
Risk of fire and explosion!
• Avoid open flames, electrical sparks and ignition sources.
• Do not smoke.

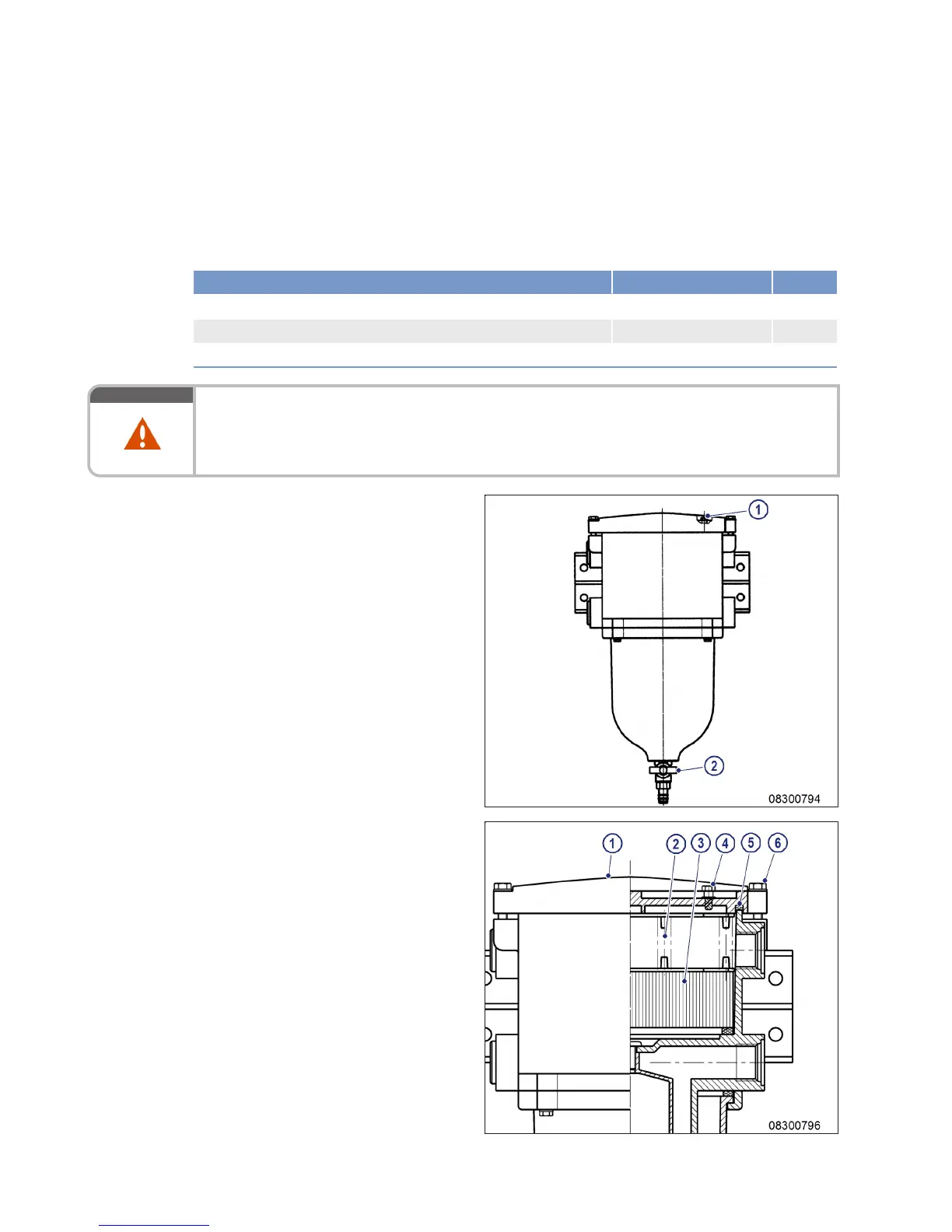

Replacing filter element
1. Close shut-off valve in fuel supply line.
2. Open vent plug (1) of the filter.
3. Unlock drain cock (2) by pressing toggle
and open it.
4. Drain water and dirt from filter.
5. Close drain cock (2).
6. Remove screws (6) securing the cover (1)
and take off cover.
7. Remove spring (2) and filter element (3).
8. Insert new filter element (3) and spring
housing (2).
9. Fill filter housing with clean fuel.
10. Insert new seal (5) in cover (1).
11. Fit cover (1) with seal (5) and tighten
screws (6).
12. Close vent plug (4) when fuel emerges.
92 | Task Description | MS150118/00E 2014-07
TIM-ID: 0000004943 - 006
