7.6.2 Fuel prefilter – Differential pressure gage check and adjustment of gage
DANGER
Rotating and moving engine parts.
Risk of crushing, danger of parts of the body being caught or pulled in!
• Only run the engine at low power. Keep away from the engine's danger zone.
WARNING
High level of engine noise when the engine is running.
Risk of damage to hearing!
• Wear ear protectors.

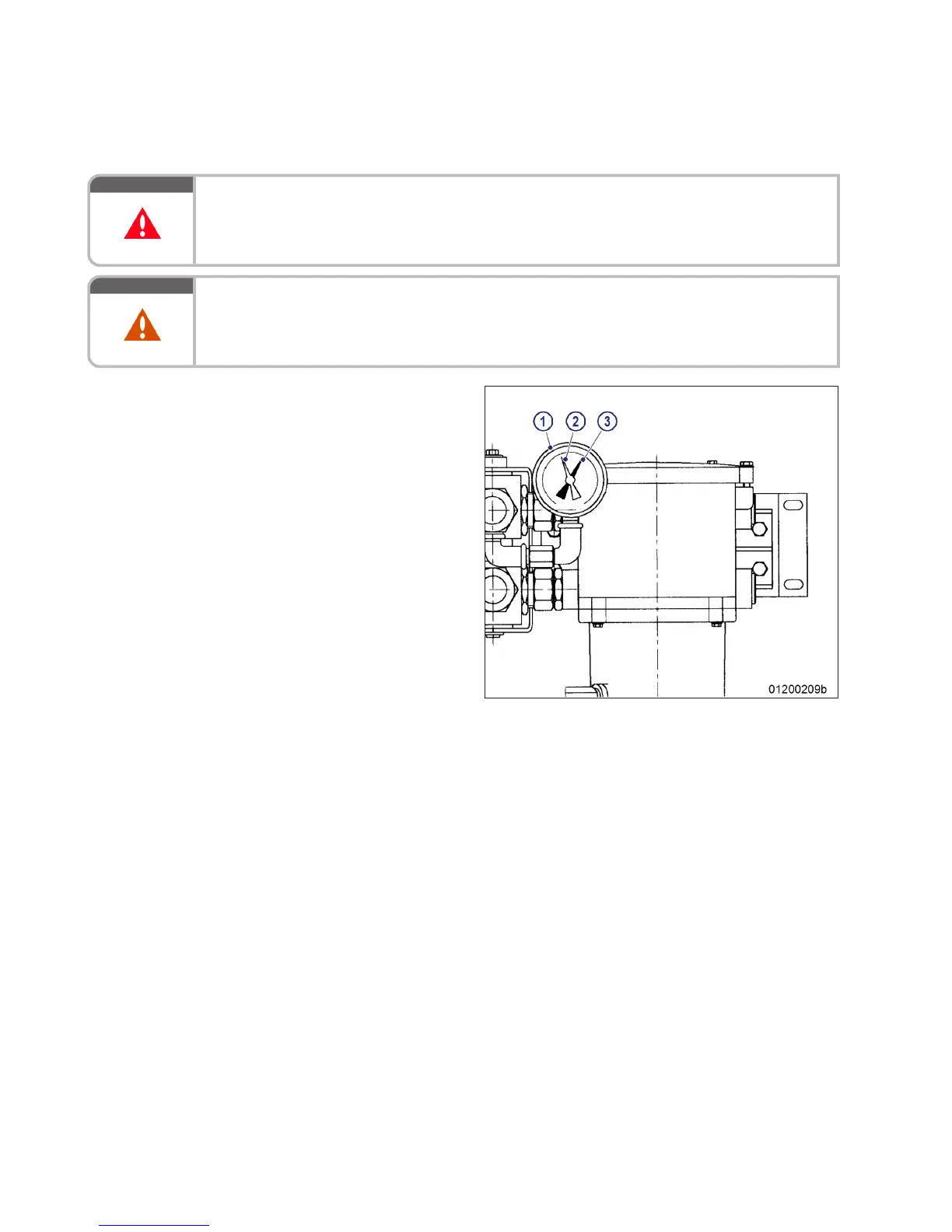

Setting adjustable pointer of dif-
ferential pressure gage
1. After installation of a new filter element:
Align adjustable pointer (2) with pressure-
indicating pointer (3) of pressure gage (1).
2. Verify that differential pressure is within
the limit.
Fuel prefilter – Checking differential pressure
1. With the engine running at full load or rated power, read off pressure at gage (1).
2. If differential pressure as indicated between position of adjustable pointer (2) and pressure-indicating
pointer (3) of pressure gage is ≥ 0.3 bar, flush filter element of the cut-in filter (→ Page 90).
88 | Task Description | MS150118/00E 2014-07
TIM-ID: 0000004925 - 009
