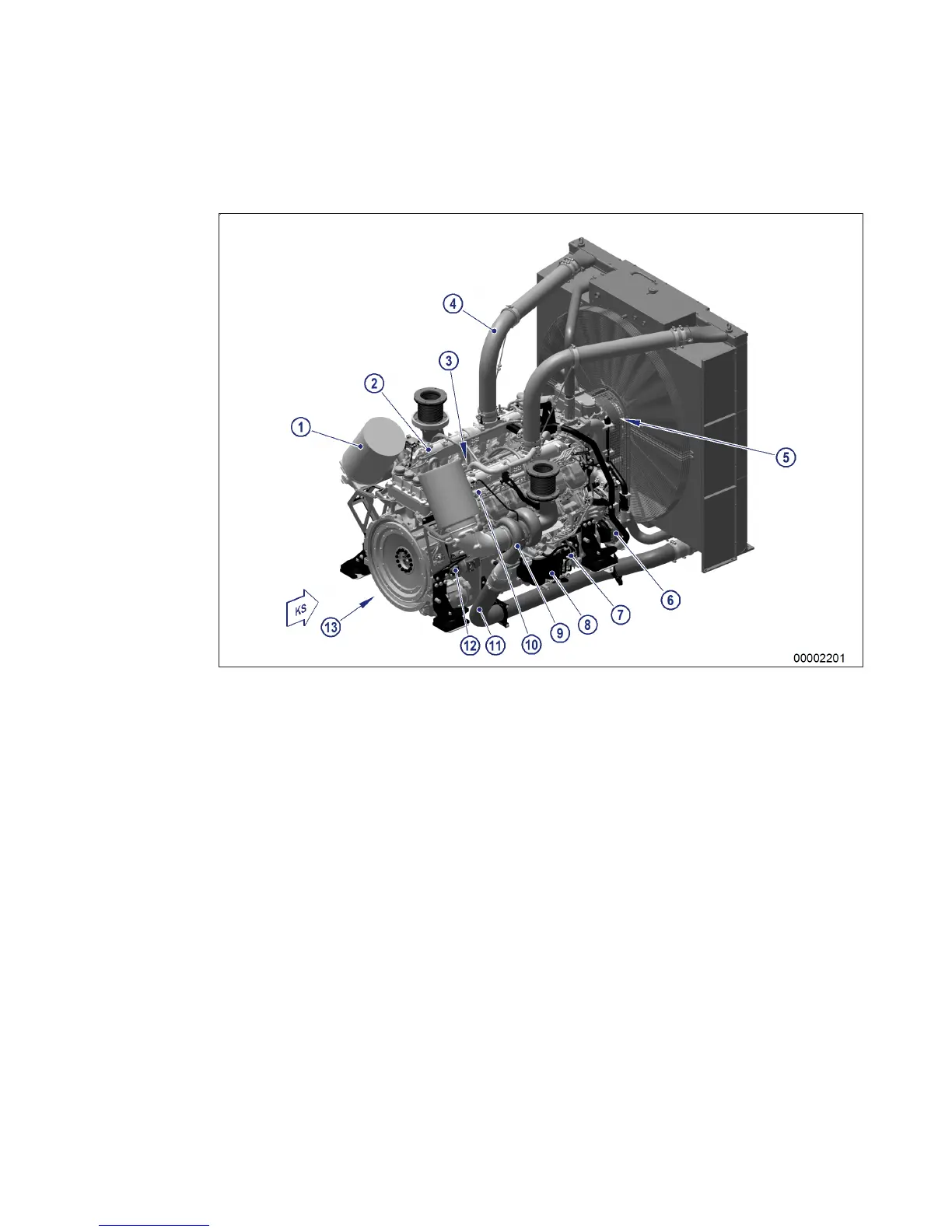

2.2 Engine overview
12 V 2000 Gx6F / Bx6F / B76 switchable
1 Air intake/air supply
2 charge-air pipe
3 Monitoring, control and
regulation system
4 Charge-air line
5 Belt drive
6 Engine coolant pump
7 Fuel system (low pressure)
8 Fuel filter
9 Exhaust turbocharger
10 Fuel system (high pres-
sure)
11 Charge-air line
12 Starting equipment
13 PTO system, driving end
KS Driving end
