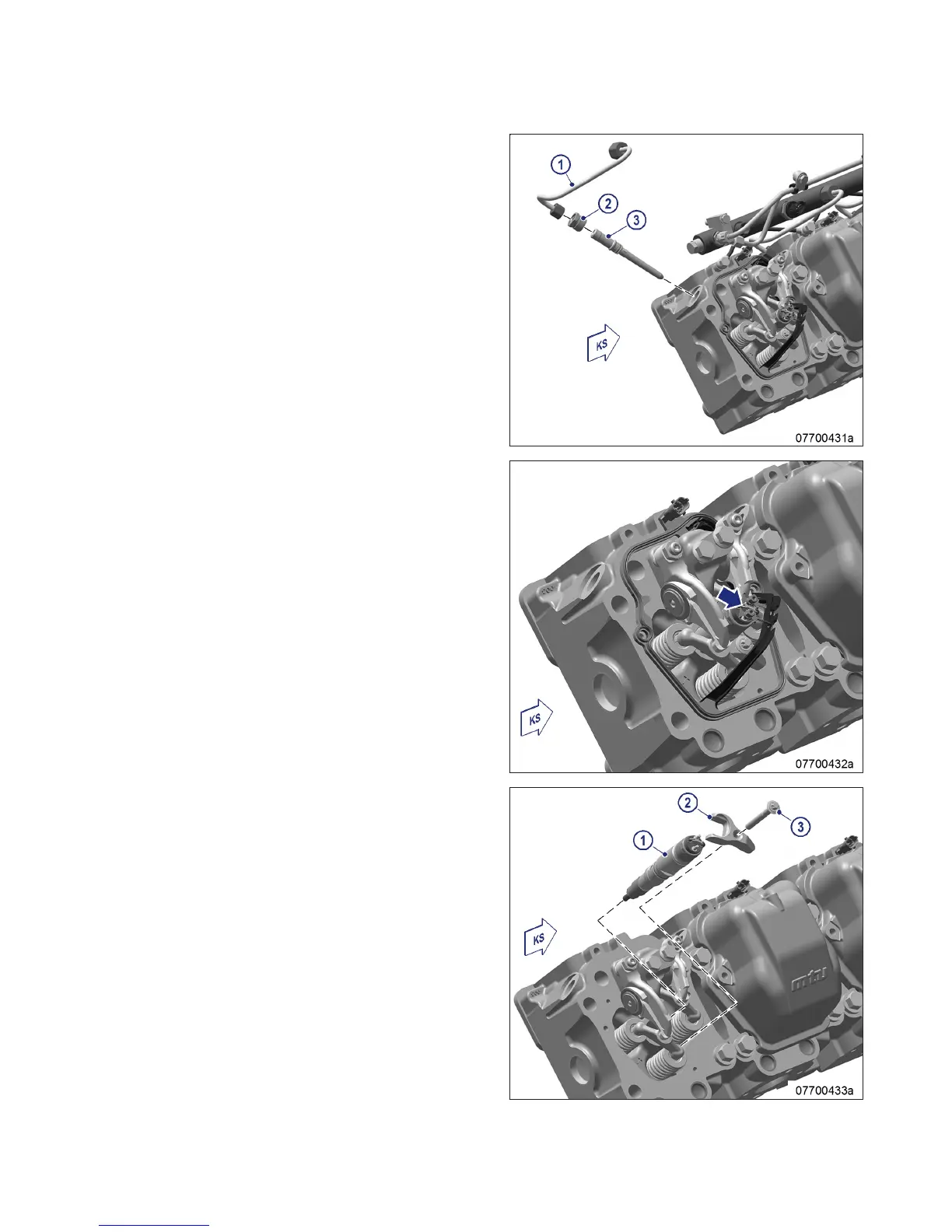

Removing injector
1. Remove HP fuel line (1).
2. Unscrew union nut (2).
3. Pull out pressure pipe connection (3).
4. Extract fuel from the exposed bores using
the fuel suction device.
5. Disconnect terminals (arrow) on injector
and pull out spade lugs.
6. Remove gasket.
7. Remove screw (3).
Note: Screw (3) may be used only once.
8. Take off hold-down clamp (2).
9. Use the puller to carefully pull out injec-
tor (1).
10. After removal, seal all openings with suita-
ble covers.
MS150118/00E 2014-07 | Task Description | 77
TIM-ID: 0000050909 - 002
