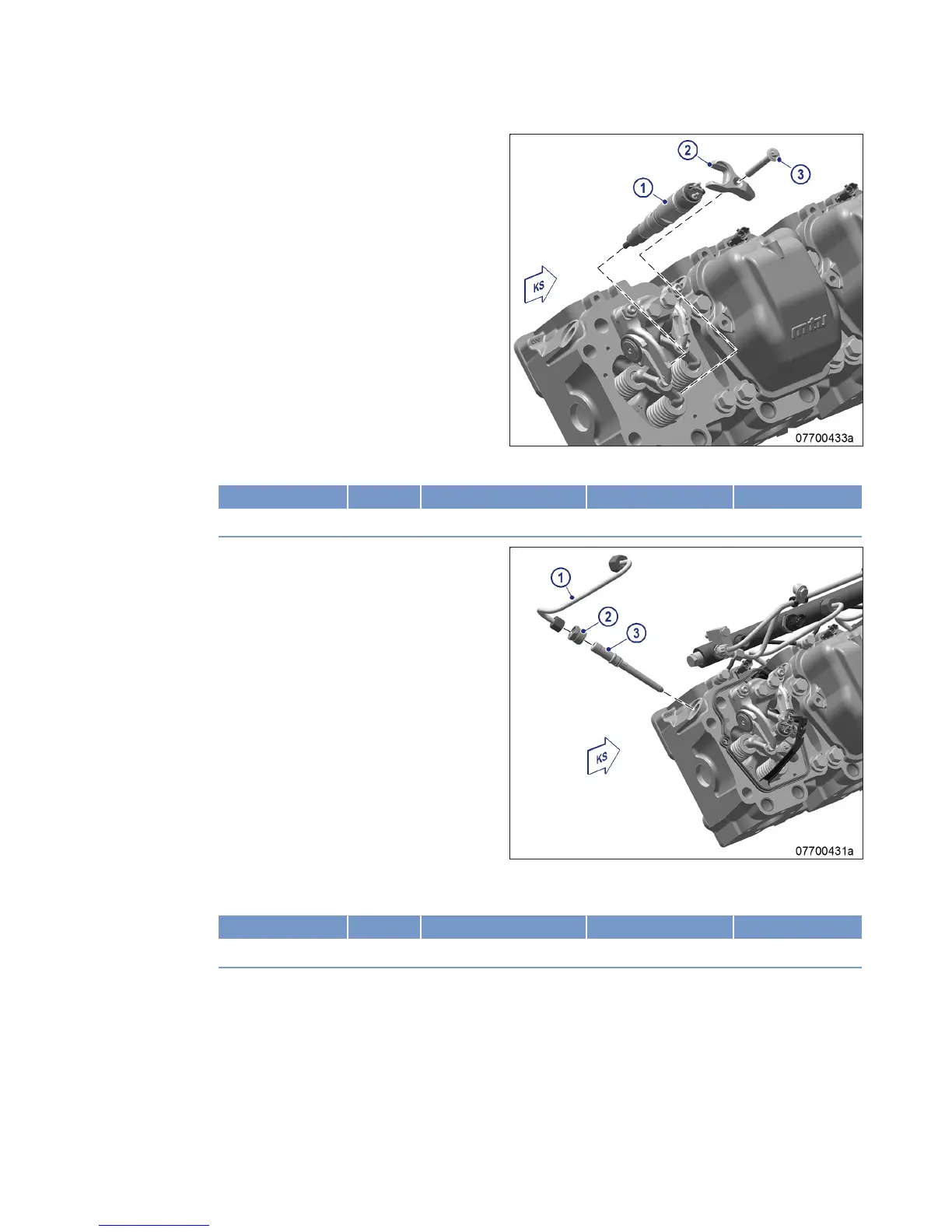

8. Use torque wrench to tighten screw (3) for hold-down clamp (2) to the specified tightening torque.
Name Size Type Lubricant Value/Standard
Screw M8 Tightening torque (Engine oil) 40 Nm +4 Nm
9. Tighten union nut (2) on pressure pipe connection (3) with torque wrench to the specified tightening
torque.
Name Size Type Lubricant Value/Standard
Retaining screw M25 Tightening torque 50 Nm +5 Nm
Installing fuel line
1. Coat thread and shoulder of union nuts on HP fuel line (1) with engine oil.
Note: Position fuel line, ensuring it is free of tension.
2. Position fuel line (1) so that the union nut with the torque specification (2) faces the rail and the end
without torque specification faces the pressure pipe connection (3), and tighten hand-tight.
MS150118/00E 2014-07
| Task Description | 79
TIM-ID: 0000050909 - 002
