8-Advanced Function of Oscilloscope
To use the cursor for a time measurement, do the following:
1. Press the MENU key and the function menus are displayed at the right of the screen.
2. Press the MENU
▲ or MENU
▼ key to select CURS MEAS.
3. Press the F1 key to select the measurement type as Time. Two vertical dashed lines T1 and
T2 appear on the screen.
4. Press OPTION and display as
Cursor 1
Cursor 2
Press ▲(OPTION) or ▼(OPTION) and see T1 move left and right and LCD display the time
value match T1 to point position in panel; press ◄( OPTION) or ►( OPTION) and see T2
move left and right and LCD display the time value match T2 to point position in panel.

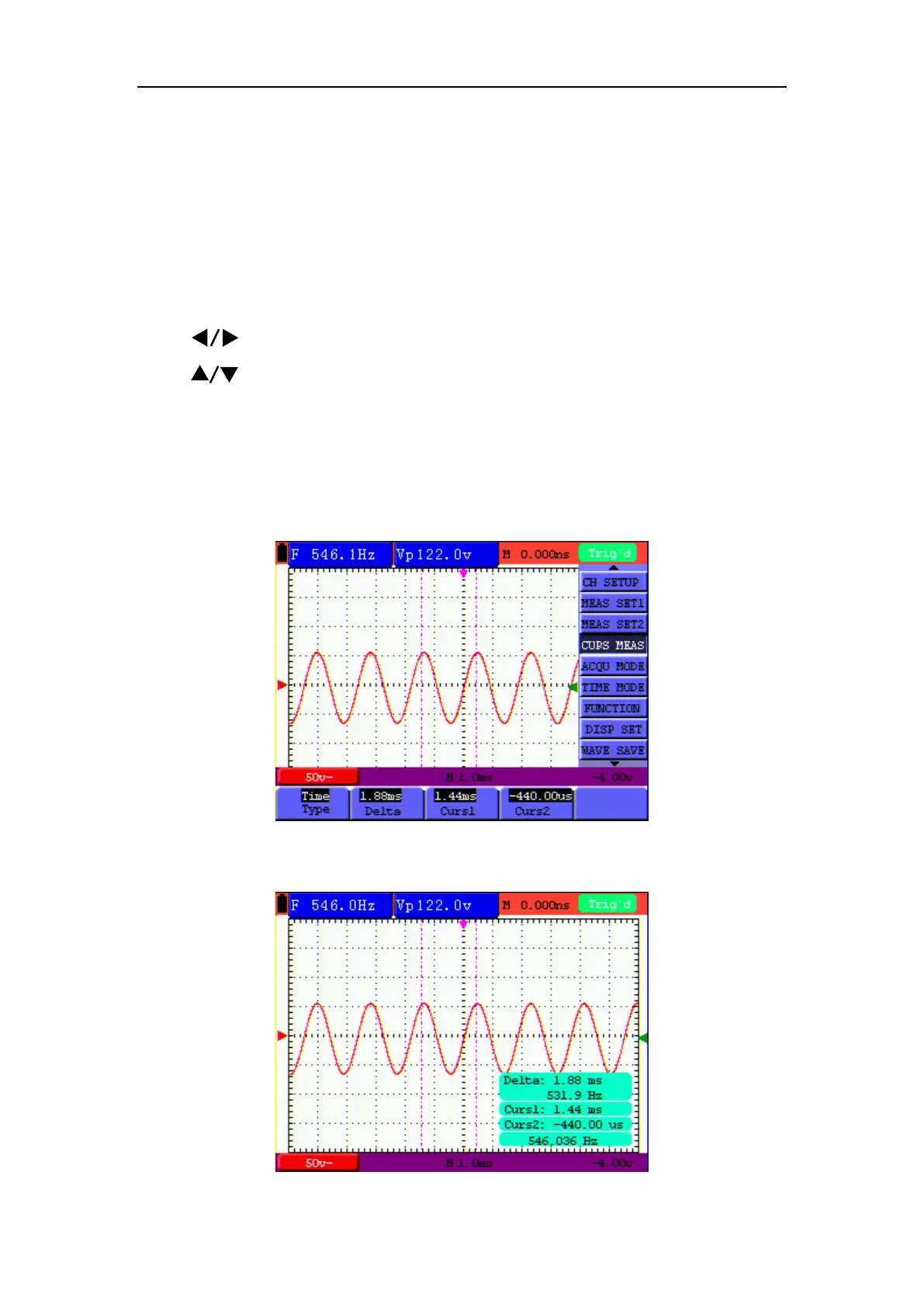

Now, you can see a screen that looks like the following figure 48.
Figure 48: Cursor time measurement
When log out submenu, every value will show on the right bottom of the screen as figure 49:
