Maintenance Manual – SC Cutting Plotter
107 AP-74030, Rev / B

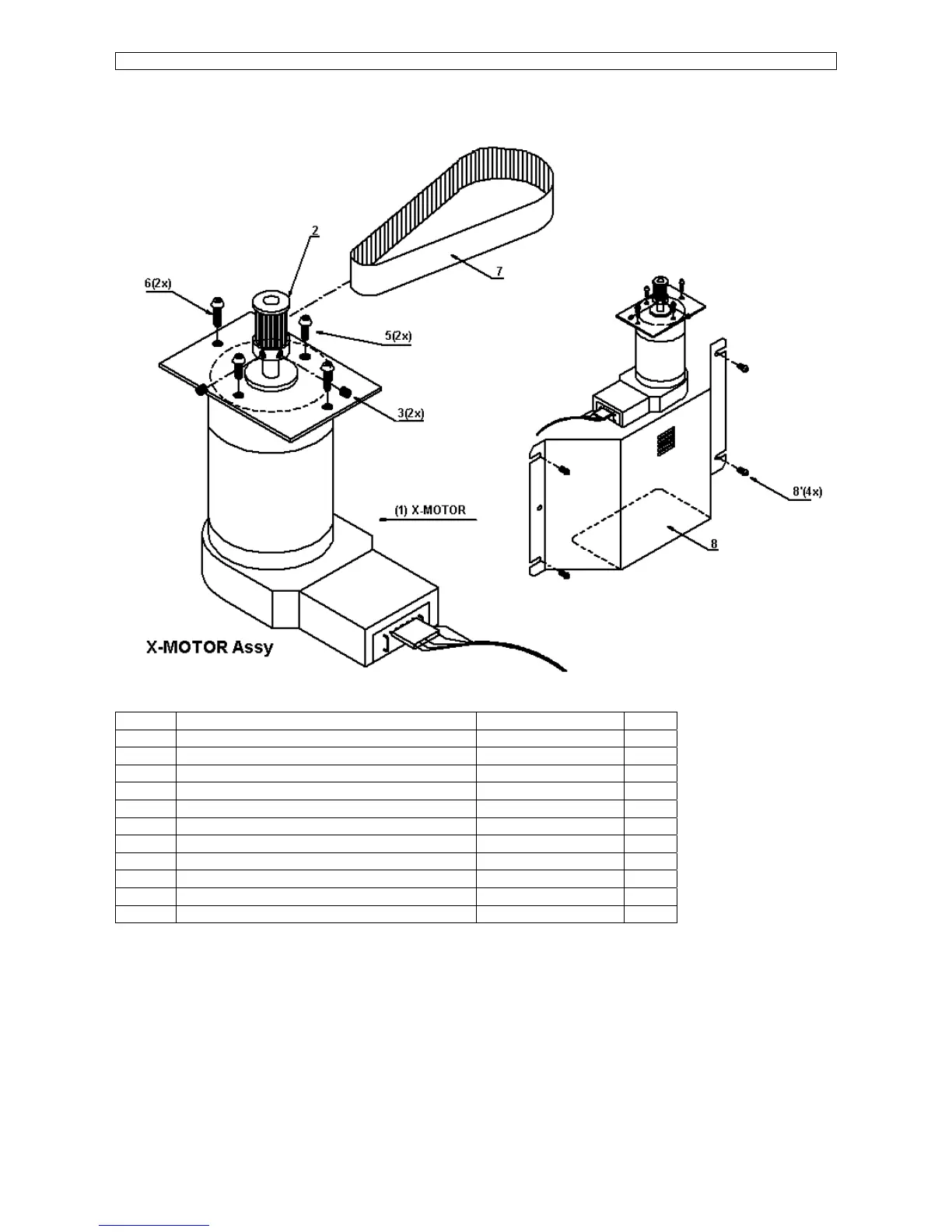

9.6. X-motor Assy SC-550.
Ref. Description Partnumber Qty
# X-motor assy EY-10002 1
1 X-motor EE-10002 1
2 Drive pulley DE-46568 1
3 Set screw DR-4007-43352 2
4 X-motorplate ME-20505 1
5 Screw M4x8 DR-4001-43396 2
- ---------------------------------------------------------- --------------------------- -
6 Screw M4x10 DR-4001-43317 2
7 X-drive belt DE-44157 1
8 X-motor cover ME-20501 1
8’ Screw M4x8 DR-4001-43396 4
To Next Page
