MUTOH SC-650 - SC-Series PCB Box Components

Maintenance Manual – SC Cutting Plotter
80 AP-74030, Rev / B

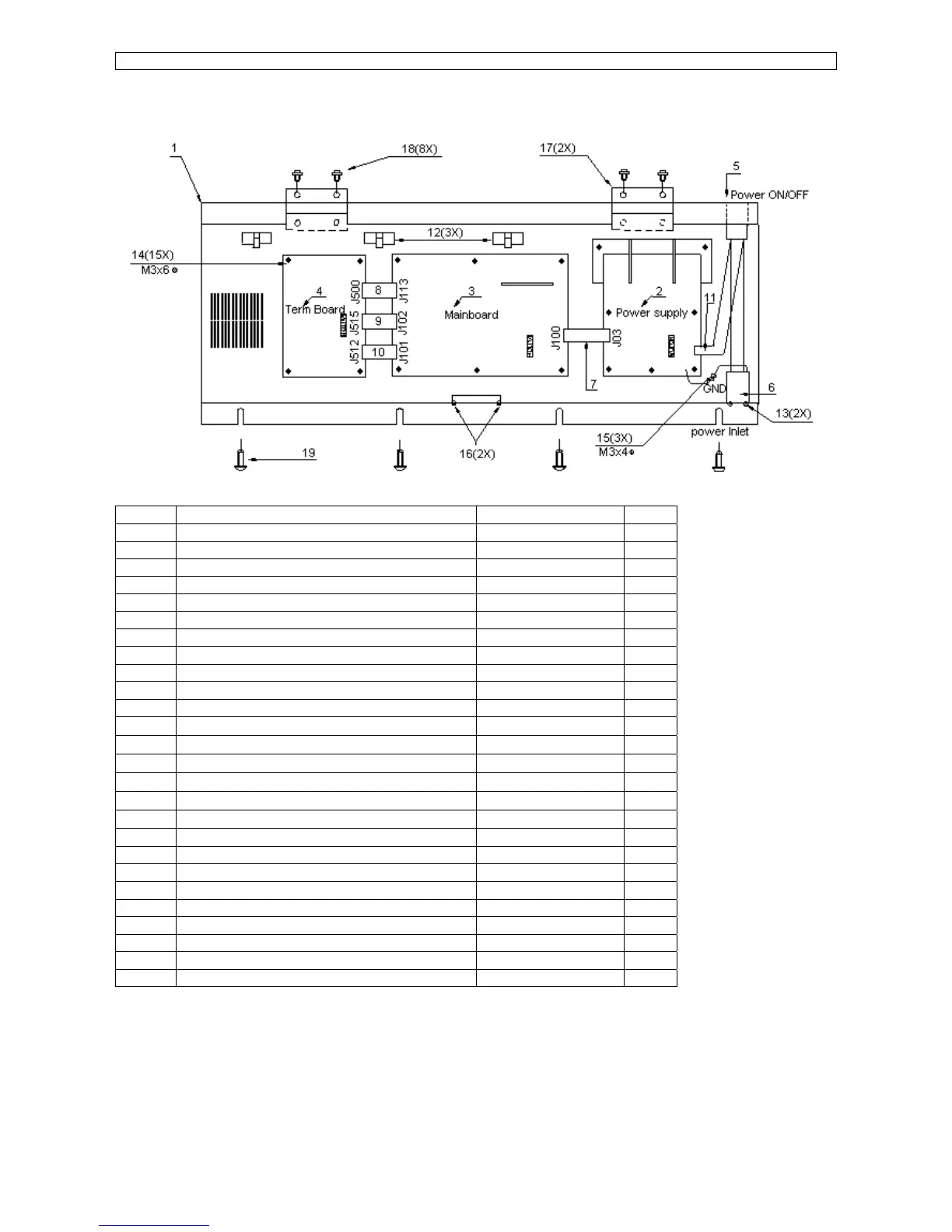

8.5. PCB box.
Ref. Description Partnumber Qty
1 PCB box SC-650 ME-20601 1
1 PCB box SC-750 ME-20701 1
1 PCB box SC-1000 ME-21601 1
1 PCB box SC-1300 ME-21613 1
2 Power supply board DE-31396 1
3 Main PC board 1
st
version EY-20570 1
3 Main PC board 2
nd
version EY-21570 1
4 Terminal PCB 1
st
version EY-20573 1
4 Terminal PCB 2
nd
version EY-21573S 1
5 Power ON/OFF switch DE-43074 1
6 Power inlet DE-44745 1
7
Cable P/S ® Mainboard
DE-44750 1
8
Cable J113 ® J500 (1
st
)
MK-60627 1
8
Cable J130 ® J500 (2
nd
)
MK-41200 1
9
Cable J102 ® J515
MK-60865 1
10
Cable J101 ® J512 (1
st
)
MK-60864 1
11
Cable switch ® P/S
MK-81650 1
12 Cable guide AE-91065 3
13 Screw M3x6 black DP-4002-40217 2
14 Cap screw M3x6 DR-4001-43923 15
15 Cap screw M3x4 DR-4001-43993 3
16 Screw M3x10 (Interf.) DR-4007-44129 2
- ---------------------------------------------------------- ---------------------------
17 Hinge PCB box DE-44113 2
18 Screw M4x8 DR-4001-43396 8
19 Screw M4x10 Taptite BM-1400-104010 4-5
