Maintenance Manual – SC Cutting Plotter
108 AP-74030, Rev / B

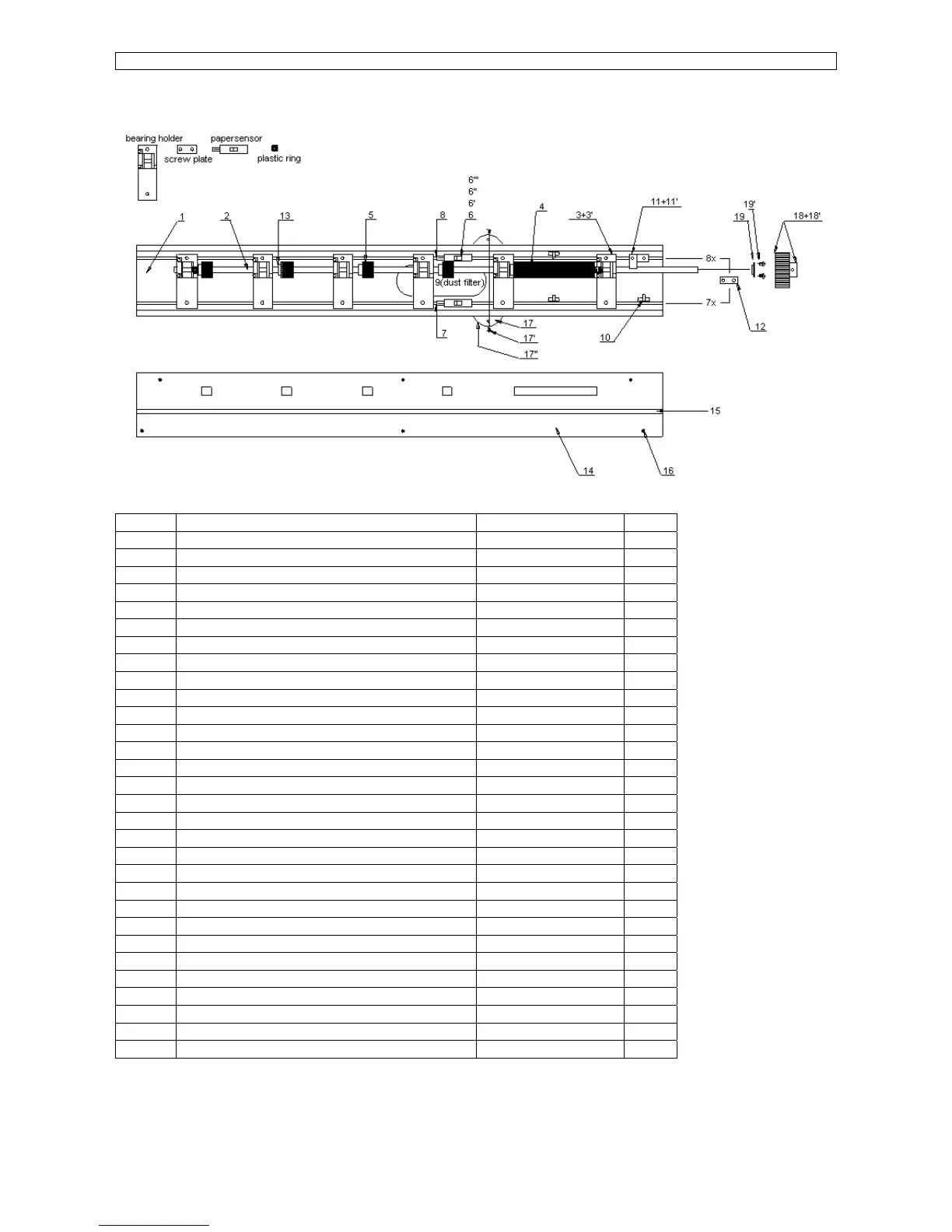

9.7. X-rail assy SC-550.
Ref. Description Partnumber Qty
# X-rail assy SC-550 MY-5500-10400 1
1 X-rail SC-550 ME-10405 1
2 Grid shaft ME-20509 1
3 Bearing holder MY-32227 6
3’ Screw M4x8 DR-4008-44543 12
4 Grid roll 95 mm DE-44800 1
5 Grid roll 14 mm DE-44142 4
6 Paper sensor E-PS-R50LA 2
6’ Paper sensor bracket ME-20629 2
6” Screw M3x8.5 sensor DS-1054-40883 2
6“’ Screw M4x6 bracket DR-4008-41838 2
7 Cable sensor front MK-41702 1
8 Cable sensor rear MK-41703 1
9 Dust filter DE45-903 1
10 Cable guide AE-91025 3
11 Earth plate DE-45118 1
11’ Screw M4x8 DR-4001-43396 1
12 Screwplate DR-2164-41836 15
13 Plastic spacer BR-40710 2
14 Grid cover ME-20550 1
15 Cutting mat ZME-10129 3
16 Screw M2x5 BM-6301-602005 6
-- -------------------------------------------------------- -------------------------- -
17 Fan EE-50761 1
17’ Screw 3.5x32 BM-2100-135032 2
17” Fan cover ME-20668 1
18 Gear grid shaft DE-46555 1
18’ Set screw M3x3 DR-4007-43352 2
19 Bearing grid shaft DE-46563 1
19’ Screw M3x4 DR-4001-43993 2
