Maintenance Manual – SC Cutting Plotter
99 AP-74030, Rev / B

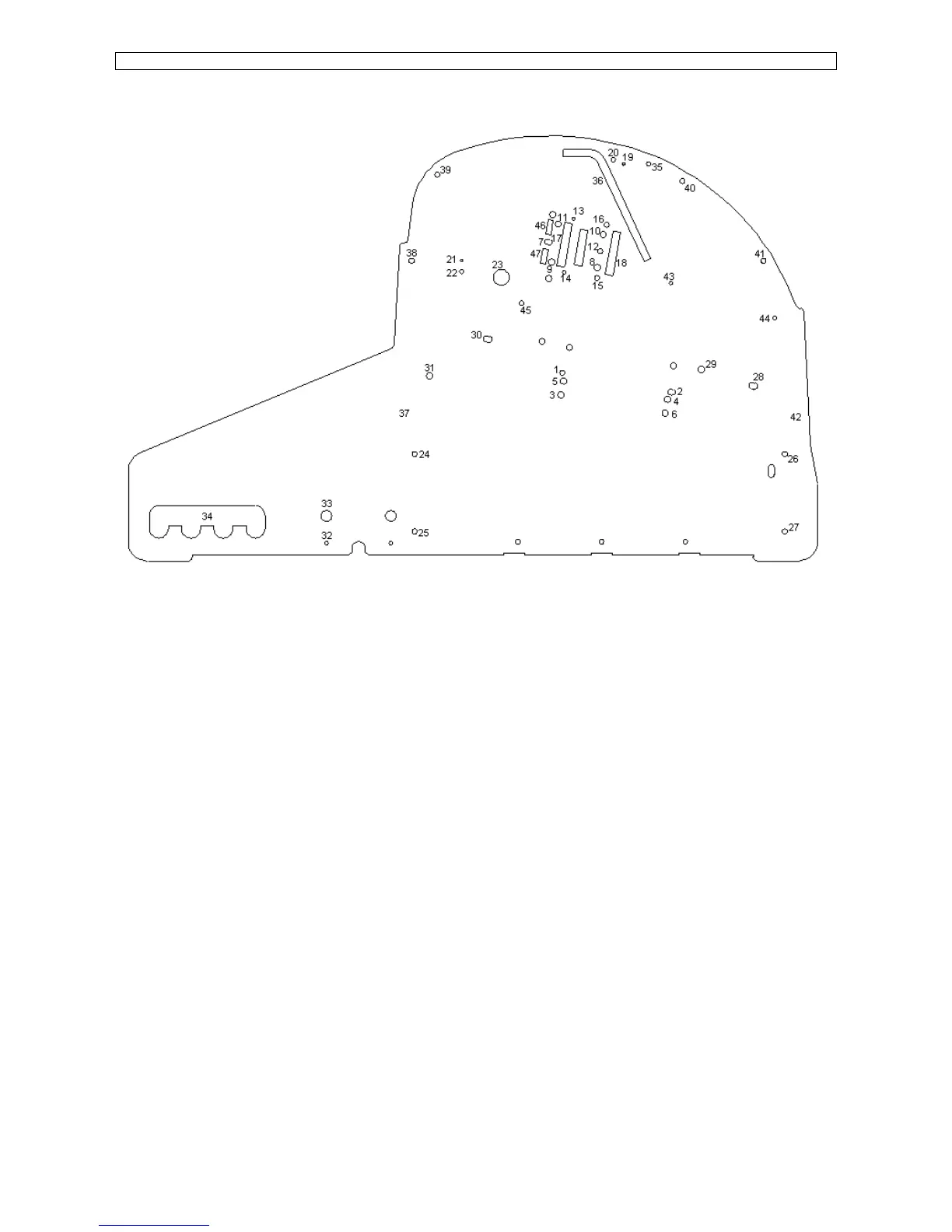

8.17. Sideplate left (ME-20599).
1 – 6 : X-rail
7 – 12 : Y-rail
13 – 16 : Bracket Return Pulley
17 – 18 : Y-belt
19 – 22 : L-bracket
23 : Hex shaft
24 – 27 : Left metal box
28 – 31 : Platen Front & Rear
32 : Slip-ring block screw
33 : Fixed conveyor roll
34 : Adjustable conveyor roll
35 : Transparent Cover shaft
36 : Lip Cover Left
37 – 42 : Cover Left
43 : Sheet off knock piece
44 : Rubber tap
45 Left pinch roller block screw M4x20
46 Position indication rail removal
47 Screw plate removal
