MUTOH SC-650 - Power Supply Board Replacement (SC-Series)

Maintenance Manual – SC Cutting Plotter
64 AP-74030, Rev / B

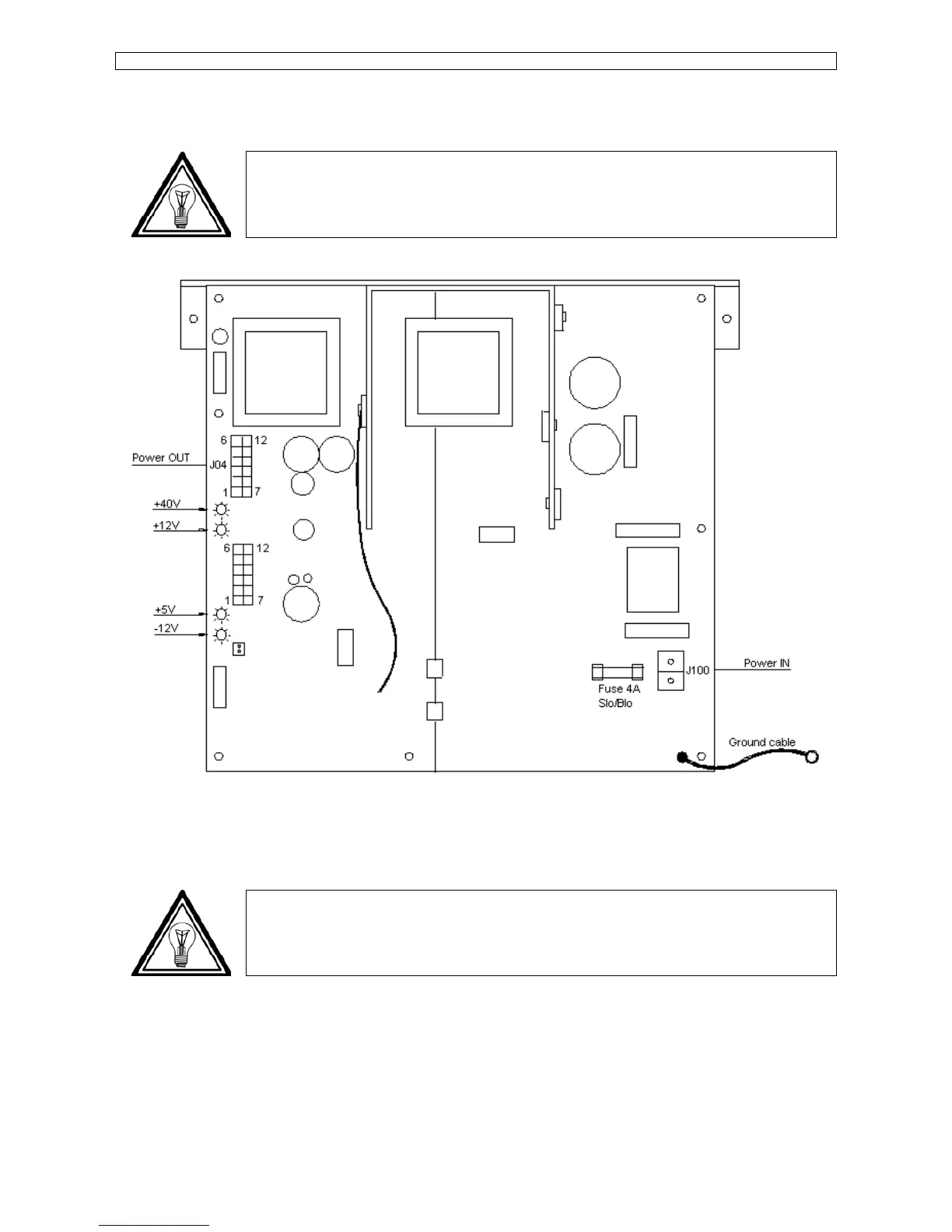

6.3.5. Power supply board : removal and installation.
Note :
This procedure is valid for all SC-series except for SC-550. For the SC-550, please refer
to 6.3.6. Power supply board SC-550.
Step 1 : Open the PCB box (Please refer to 6.2.3.PCB box).
Step 2 : Remove the connectors and the screw from the grounding wire and remove the board.
Note :
To reinstall the board perform above steps in reversed order.
