Maintenance Manual – SC Cutting Plotter
67 AP-74030, Rev / B
Note :
To reinstall the board perform above steps in reversed order.
6.3.9. Keyboard : removal and installation.
Step 1 : Remove the right cover (Please refer to 6.2.1. Covers left and right).

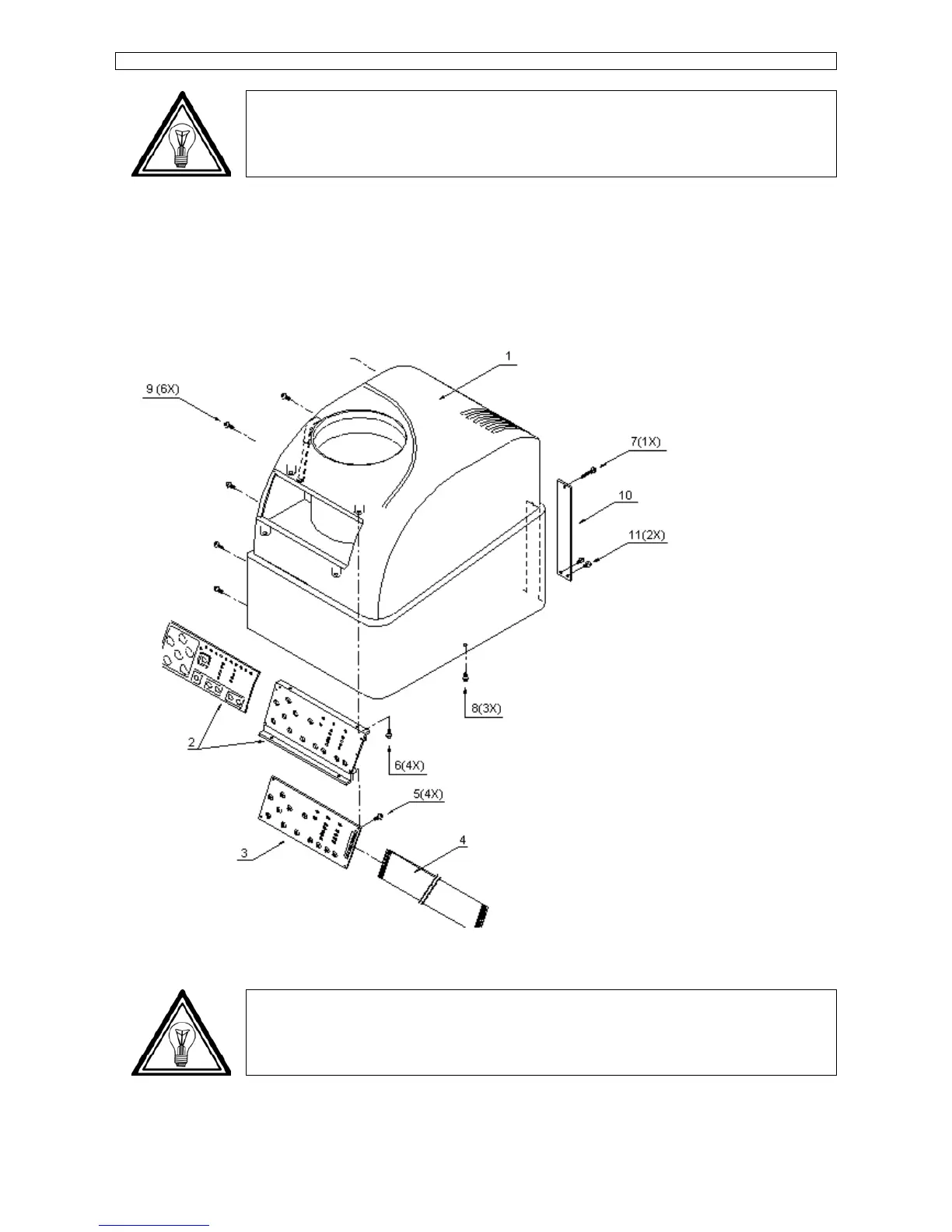

Step 2 : Remove the flat cable from the keyboard PC board. (Please refer to he picture mentioned below.)
Step 3 : Remove screws 6(4X) from the right cover and remove the keyboard.
Note :
To reinstall the keyboard perform above steps in reversed order.
