Maintenance Manual – SC Cutting Plotter
85 AP-74030, Rev / B

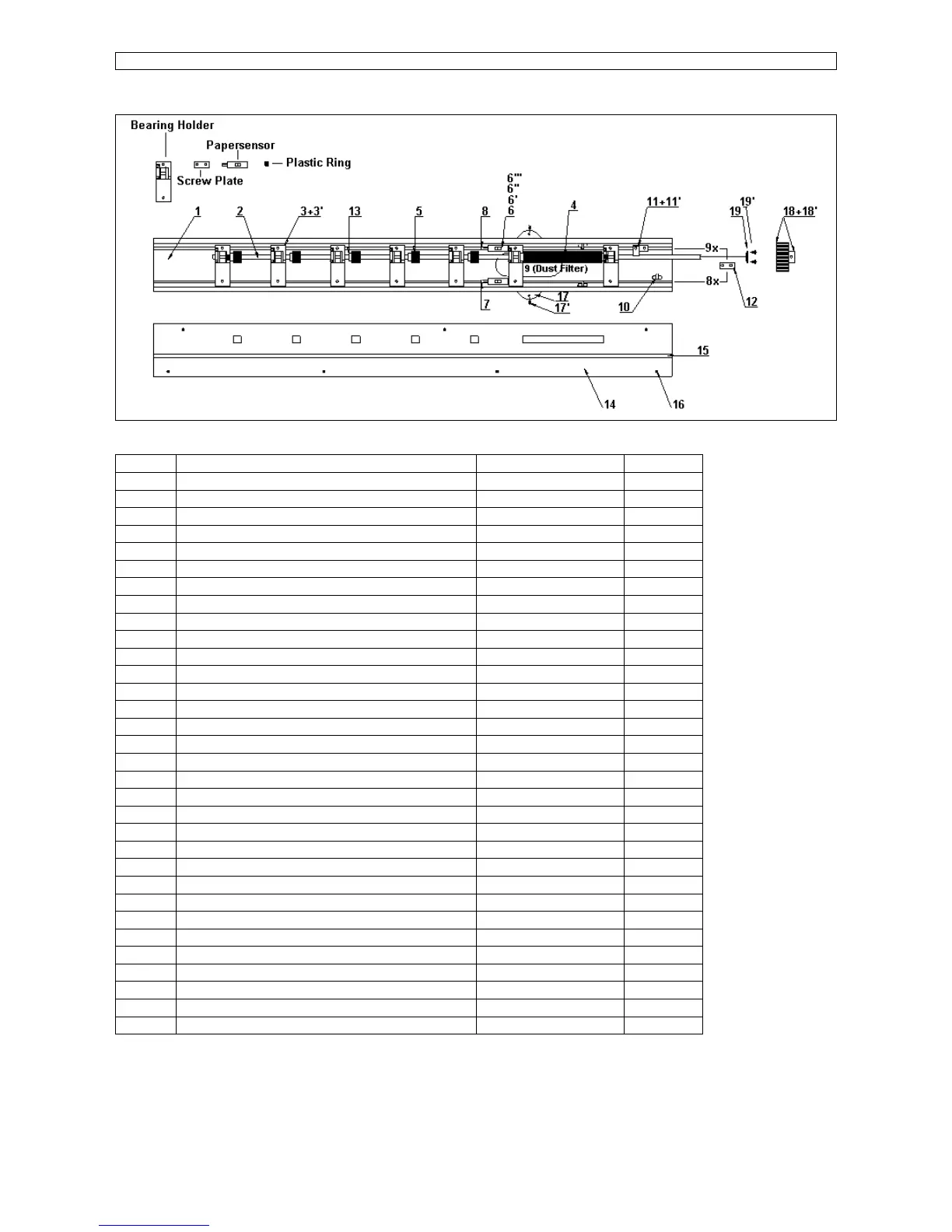

8.9. X-rail assy.
Ref. Description Partnumber Qty
# X-rail assy SC-650 MY-6500-10400 1
# X-rail assy SC-750 MY-7500-10400 1
# X-rail assy SC-1000 MY-1000-10400 1
# X-rail assy SC-1300 MY-1300-10400 1
1 X-rail SC-650 ME-10400 1
1 X-rail SC-750 ME-10407 1
1 X-rail SC-1000 ME-10409 1
1 X-rail SC-1300 ME-10415 1
2 Drive shaft SC-650 ME-20609 1
2 Drive shaft SC-750 ME-20709 1
2 Drive shaft SC-1000 ME-21609 1
2 Drive shaft SC-1300 ME-21611 1
3 Bearing holder MY-32227 7-8-10
3’ Screw M4x8 DR-4008-44543 14-16-20
4 Grid roll 136 mm DE-46550 1
5 Grid roll 14 mm DE-44142 5-6-7
6 Paper sensor E-PS-R50LA 2
6’ Paper sensor bracket ME-20629 2
6” Screw M3x8.5 sensor DS-1054-40883 2
6”’ Screw M4x6 bracket DR-4008-41838 2
7 Cable sensor front MK-41702 1
8 Cable sensor rear MK-41703 1
9 Dust filter DE-45903 1-2-3
10 Cable guide AE-91025 3
11 Earth plate DE-45118 1
11’ Screw M4x8 DR-4001-43396 1
12 Screwplate DR-2164-41836 17-19-23
13 Plastic spacer BR-40710 2
14 Grid cover SC-650 ME-20650 1
14 Grid cover SC-750 ME-20750 1
14 Grid cover SC-1000 ME-21650 1
14 Grid cover SC-1300 ME-21251 1
To Next Page
